Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 45299  Engine Preluber

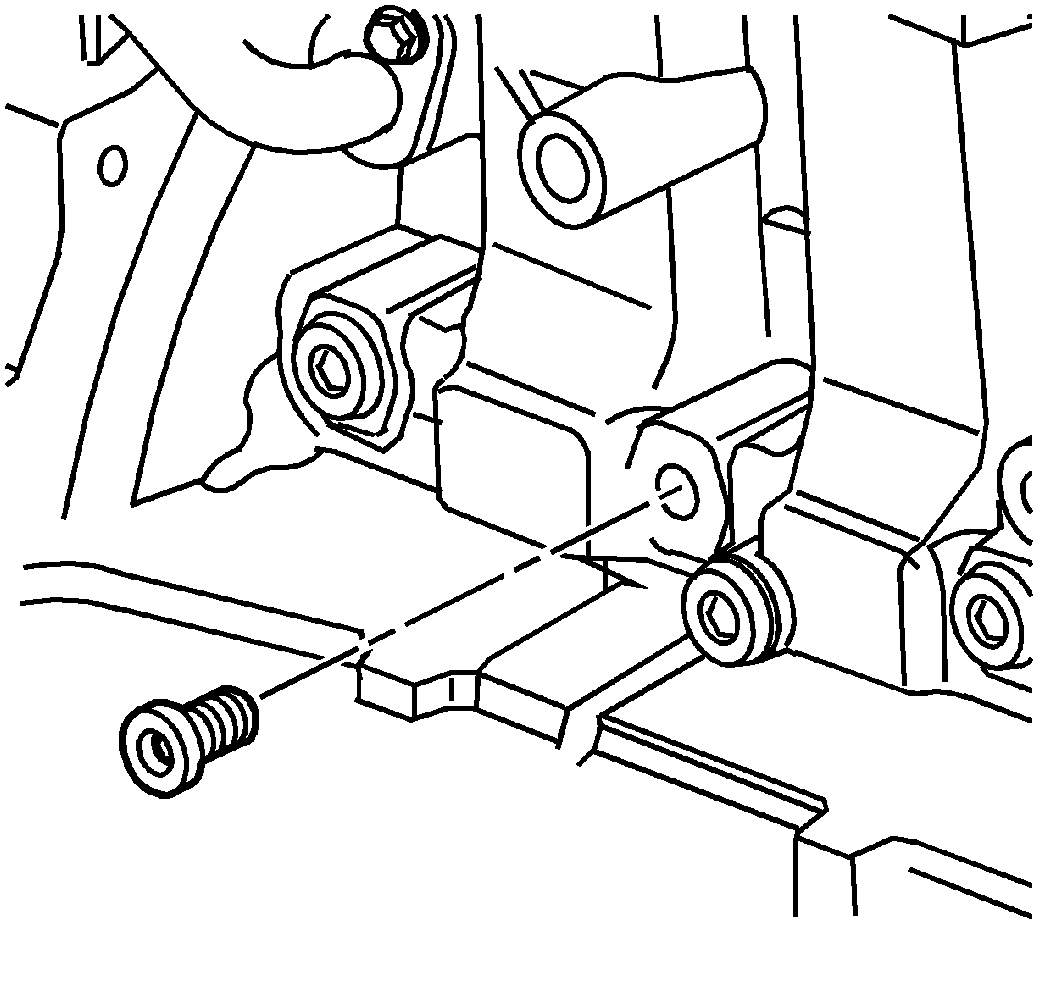

    Fig 1: View Of Engine Block Oil Gallery Plug
    GM858371Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: A constant/continuous flow of clean engine oil is required to properly prime the engine. Be sure to use an approved engine oil as specified in the owners manual.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Remove the engine oil filter, fill with clean engine oil, and reinstall.

    Tighten:  Tighten the oil filter to 30 N.m (22 lb ft).

  2. Remove the engine block oil gallery plug (1).
  3. Install the M16 x 1.5 adapter P/N 509375.
    4. Fig 2: Identifying Engine Preluber J 45299
    GM863255Courtesy of GENERAL MOTORS CORP.
  4. Install the flexible hose to the adapter and open the valve.
  5. Pump the handle on J 45299  to flow a minimum of 1-2 quarts of engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
  6. Close the valve and remove the flexible hose and adapter from the engine.
  7. Install the oil pressure sensor.

    Tighten:  Tighten the oil pressure sensor to 35 N.m (26 lb ft).

  8. Top-off the engine oil to the proper level.
