Engine Lift Bracket Installation

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

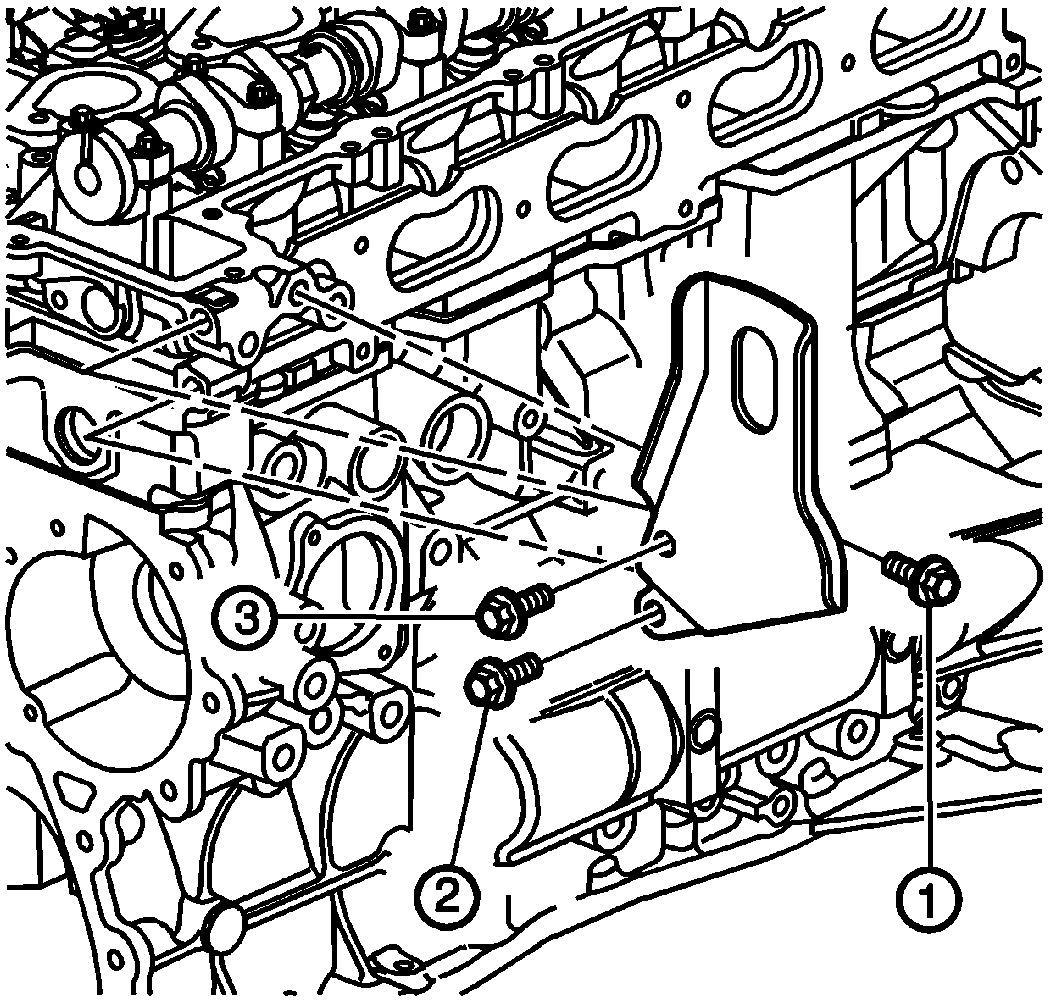

    Fig 1: View Of Engine Lift Bracket
    GM954203Courtesy of GENERAL MOTORS CORP.
  1. Install the engine lift bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine lift bracket bolts in sequence.

    Tighten:

    • Tighten the engine lift bracket bolts a first pass in sequence to 5 N.m (44 lb in)
    • Tighten the engine lift bracket bolts a final pass in sequence to 50 N.m (37 lb ft)
