Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 44219 Engine Cover Alignment Pins

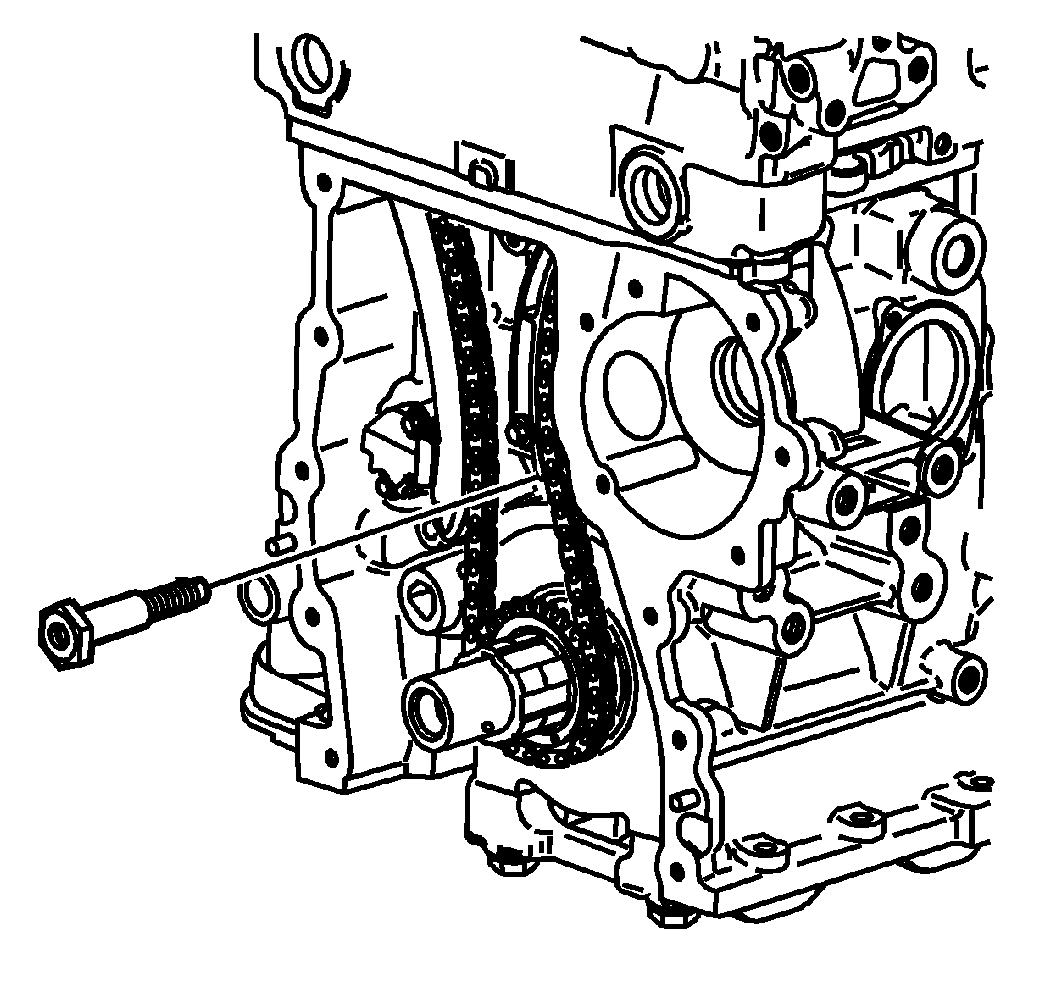

Fig 1: View Of Engine Front Cover Spacer Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the engine front cover spacer bolt.
Tighten: Tighten the engine front cover spacer bolt to 10 N.m (89 lb in).

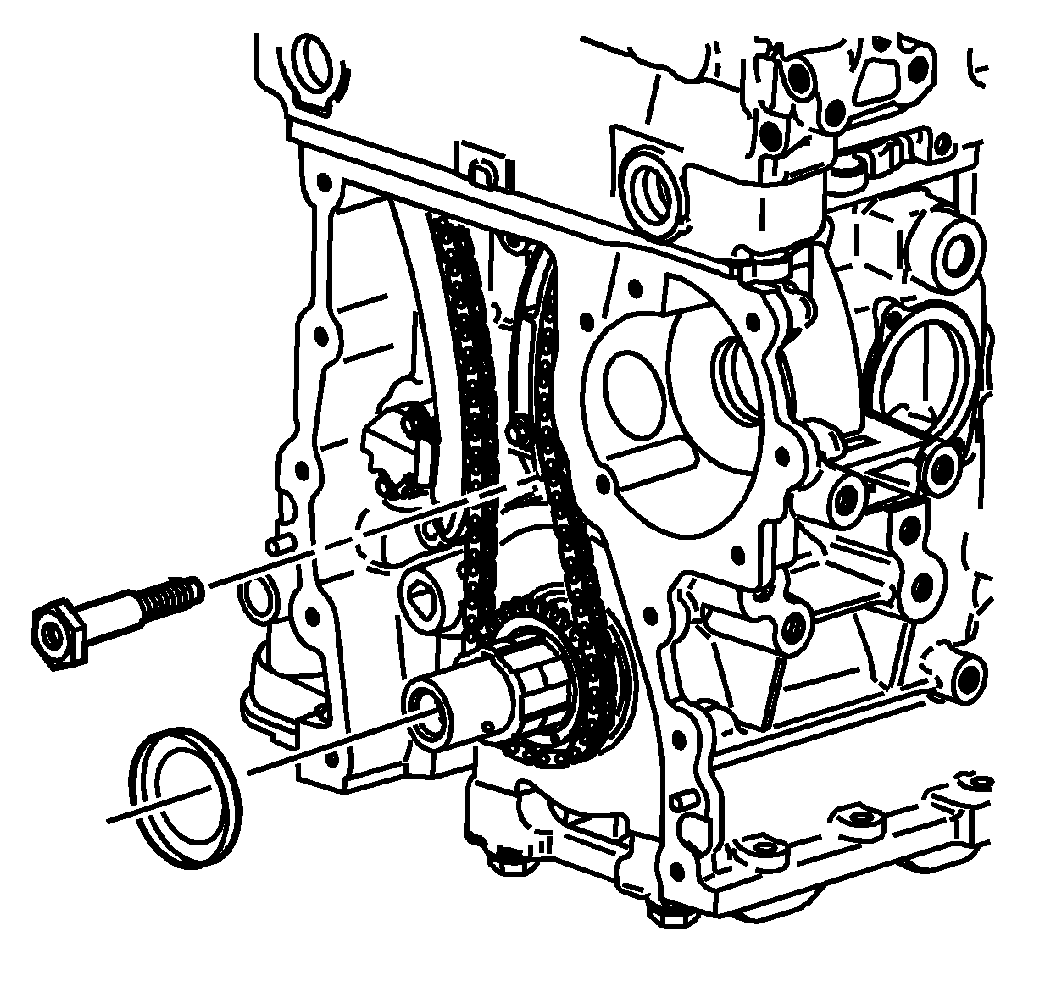

Fig 2: View Of Spacer Bolt

Courtesy of GENERAL MOTORS CORP.

Install J 44219 .
Remove 2 bolts from the engine front cover in the location of the alignment pins.

Fig 3: Sealant Application To Block Sealing Surface

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The engine front cover must be installed within 10 minutes from when the sealer was applied.

Apply a 3 mm (0.12 in) bead of sealer GM P/N 12378521 (Canadian P/N 88901148) to the block sealing surface (1).

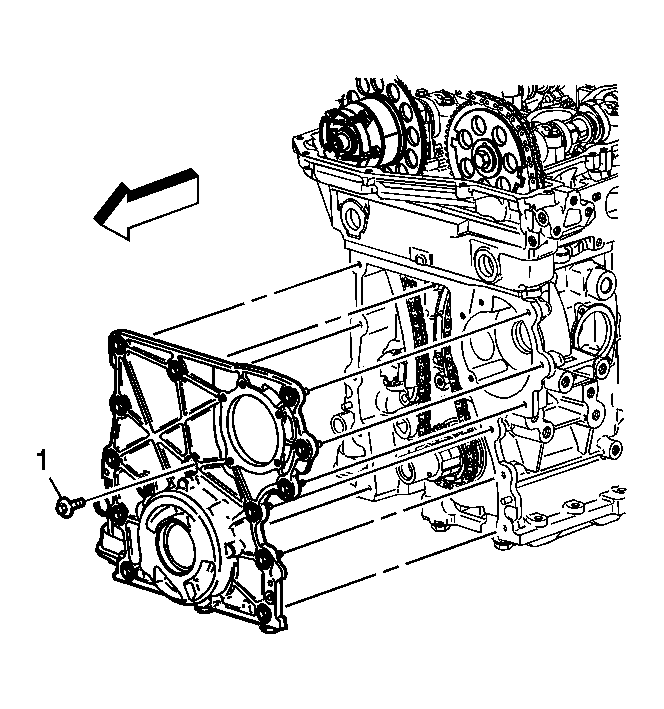

Fig 4: View Of Engine Front Cover & Bolts

Courtesy of GENERAL MOTORS CORP.

Align the oil pump to the crankshaft sprocket splines.
Install the engine front cover and bolts.
Remove J 44219 .
Install the 2 remaining engine front cover bolts.
Tighten:
1. Tighten the engine front cover bolts to 10 N.m (89 lb in).
2. Tighten the small center bolt (1) last to 8 N.m (71 lb in).
