Engine Front Cover Cleaning and Inspection

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

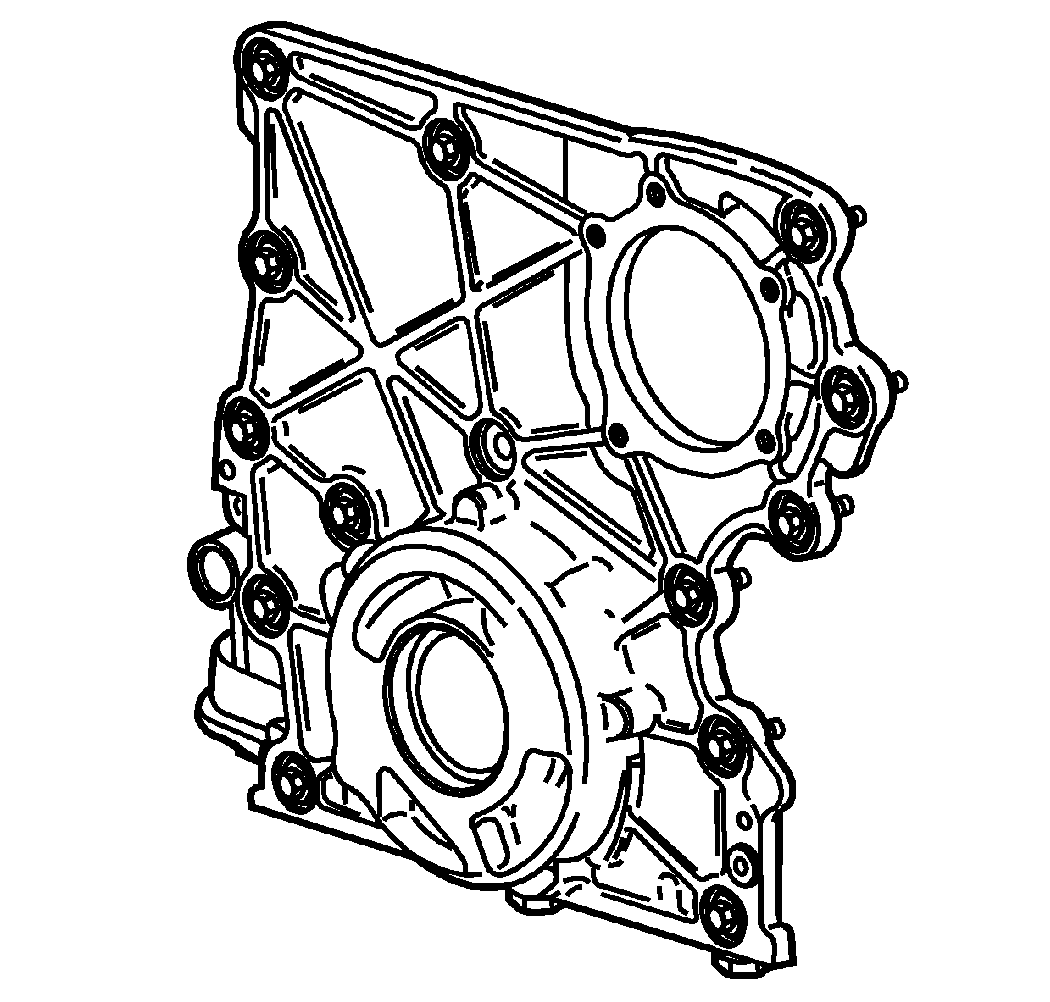

    Fig 1: Inspecting Engine Front Cover
    GM1243914Courtesy of GENERAL MOTORS CORP.
  1. Clean the engine front cover with cleaning solvent.
    2. IMPORTANT: Do not use a motorized tool or bristle disc to clean this component.
  2. Remove all sealing material.
  3. Inspect the engine front cover sealing surfaces for nicks or damage. Use a fine flat file to remove any minor nicks.
  4. Inspect the engine front cover threaded holes for damage.
  5. Repair or replace the engine front cover as necessary.
