Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 45059 Angle Meter

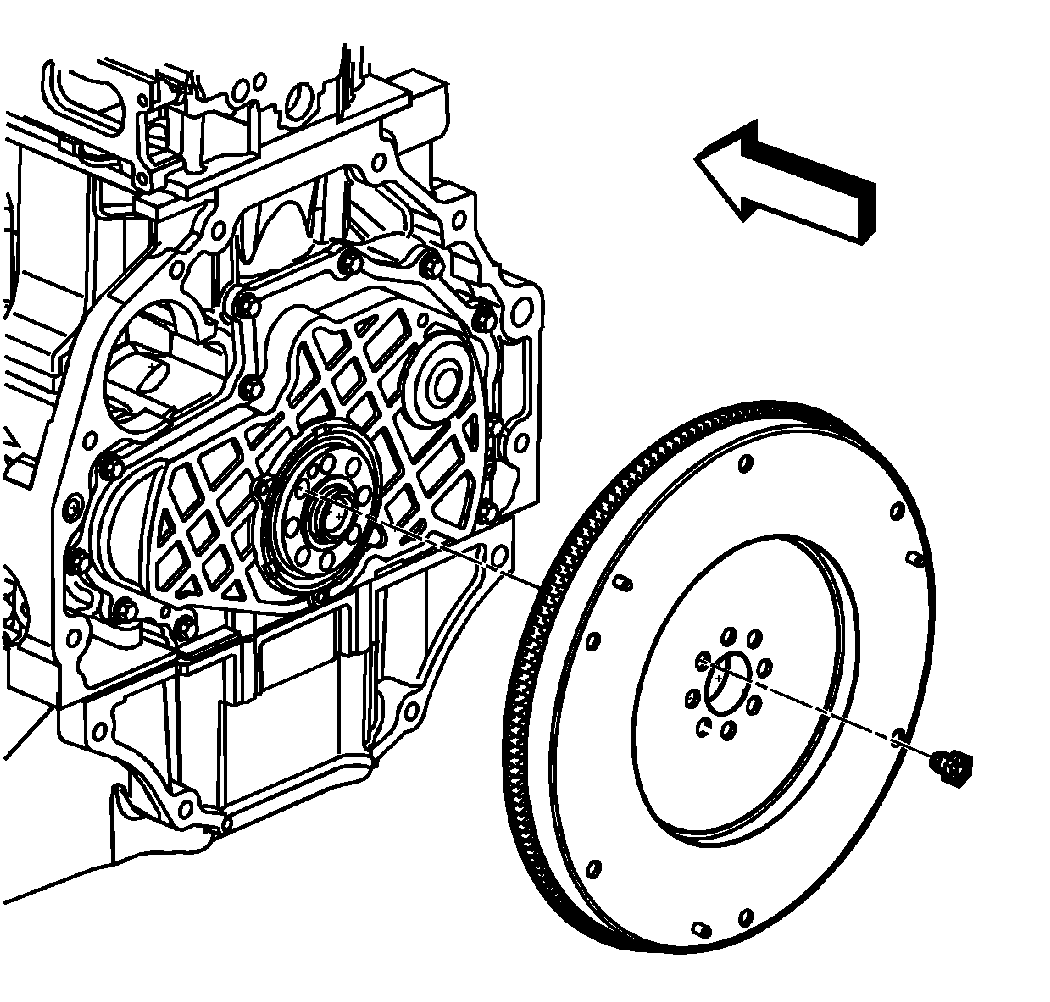

Fig 1: Vie Of Flywheel - Manual Transmission

Courtesy of GENERAL MOTORS CORP.

Install the flywheel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install new flywheel bolts.
Tighten:
1. Tighten the new flywheel bolts to 40 N.m (30 lb ft).
2. Use J 45059 to tighten the flywheel bolts an additional 45 degrees.
