Engine Coolant Thermostat Housing Installation

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

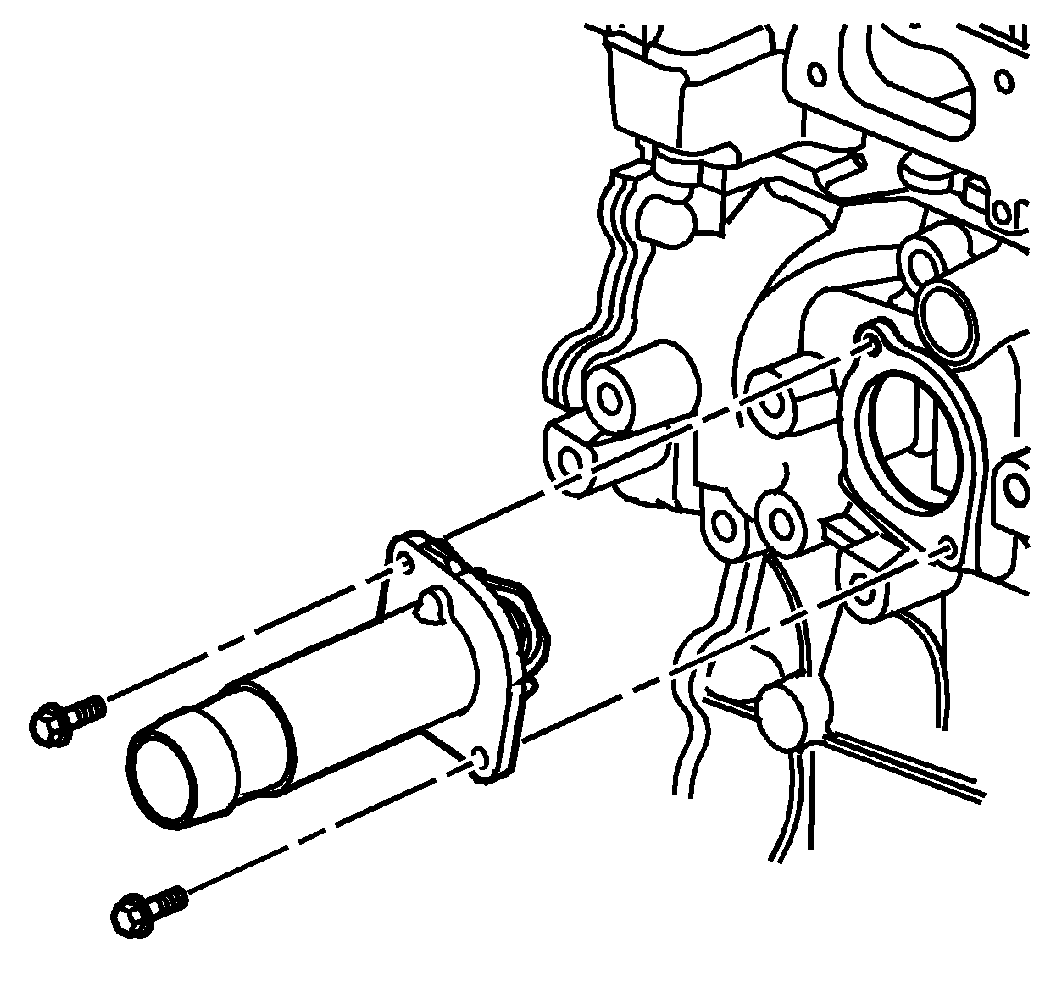

    Fig 1: View Of Thermostat Housing
    GM858164Courtesy of GENERAL MOTORS CORP.
  1. Install the thermostat housing.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the thermostat housing bolts.

    Tighten:  Tighten the thermostat housing bolts to 10 N.m (89 lb in).
