Engine Block Plug Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

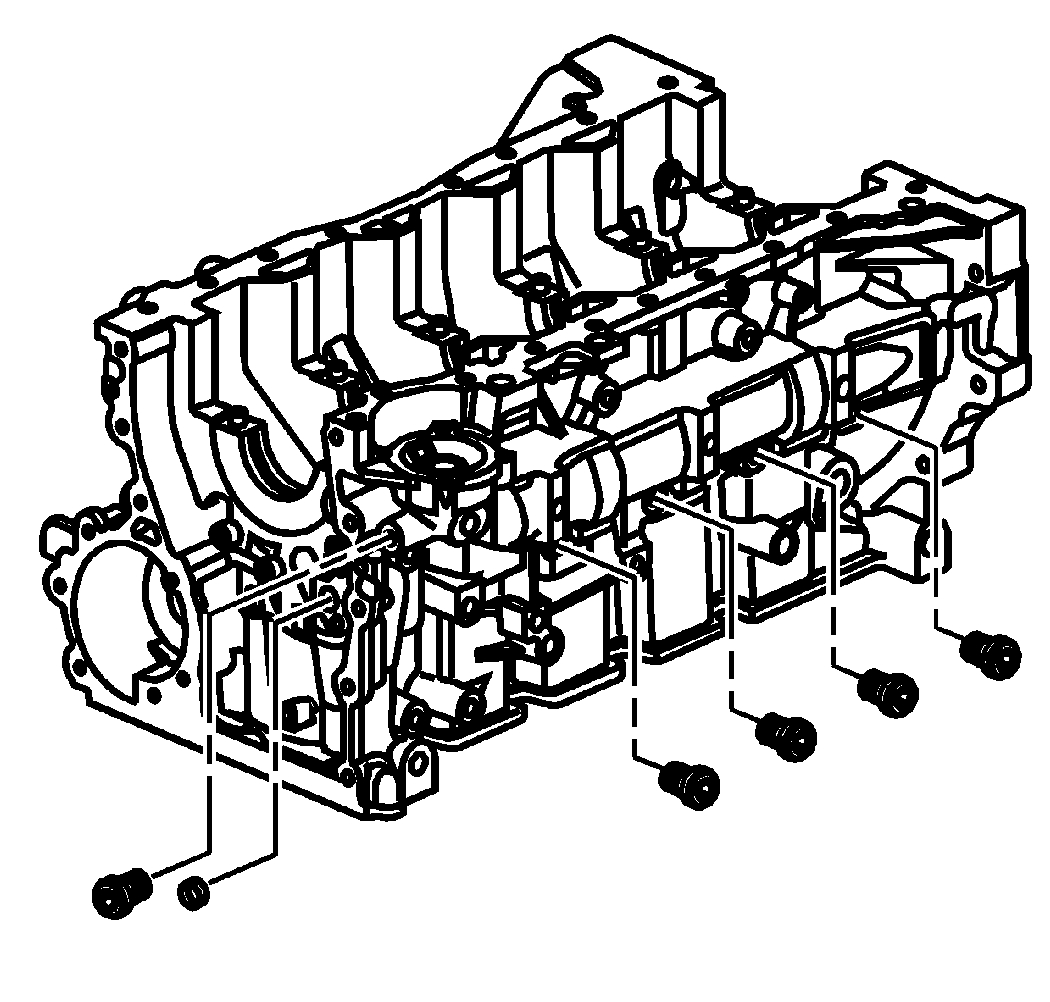

Fig 1: View Of Engine Block Oil Gallery Plugs

Courtesy of GENERAL MOTORS CORP.

Remove the engine block oil gallery plugs.

Fig 2: View Of Engine Block Coolant Plug

Courtesy of GENERAL MOTORS CORP.

Remove the engine block coolant plug.

Fig 3: View Of Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the crankshaft position sensor.

Fig 4: View Of Knock Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the knock sensor.

Fig 5: View Of EVAP Solenoid

Courtesy of GENERAL MOTORS CORP.

Remove the EVAP solenoid.

Fig 6: View Of Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the coolant temperature sensor.

Fig 7: View Of Oil Pressure Switch

Courtesy of GENERAL MOTORS CORP.

Remove the oil pressure switch.
