Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 44215  Rear Seal Installer

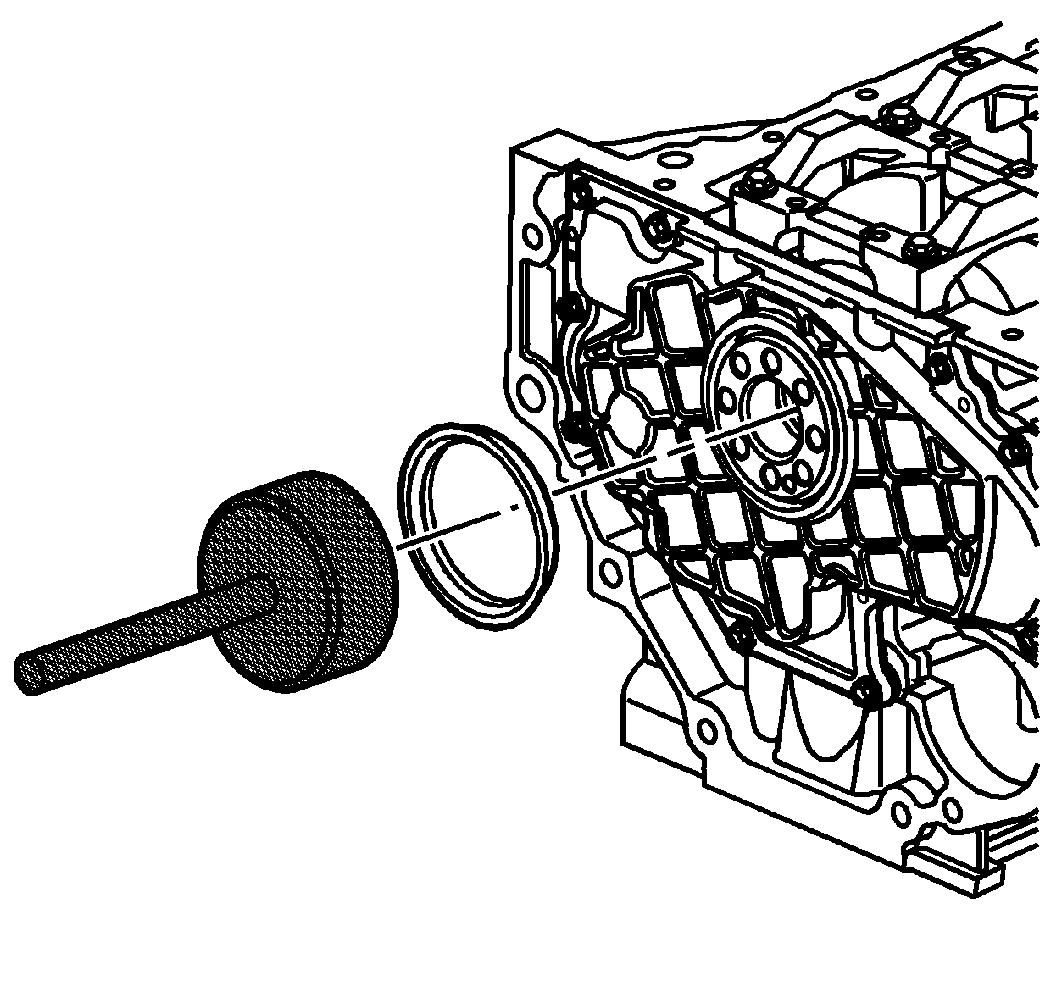

    Fig 1: Installing Crankshaft Rear Oil Seal
    GM858369Courtesy of GENERAL MOTORS CORP.
  1. Use the plastic installation sleeve supplied with the new seal when installing a new seal.

    Use J 44215  to install the crankshaft rear oil seal.

  2. Remove J 44215  .
