Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

    Fig 1: View Of Crankshaft Balancer Bolt
    GM856226Courtesy of GENERAL MOTORS CORP.
  1. Remove and discard the crankshaft balancer bolt.

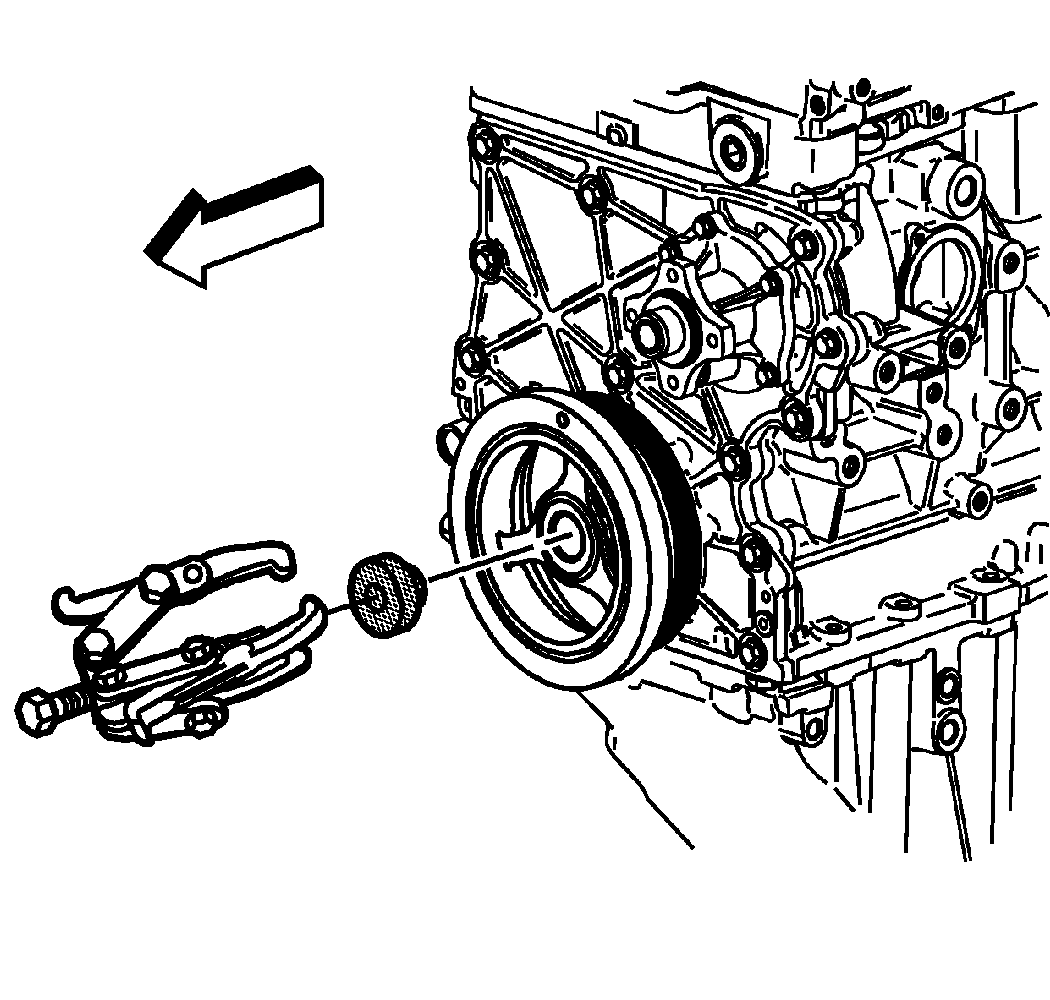

    2. Fig 2: View Of Crankshaft Balancer
    GM856227Courtesy of GENERAL MOTORS CORP.
  2. Install J 41816-2  into the end of the crankshaft.
    3. IMPORTANT: Do not pull on outer edge of the crankshaft balancer.
    IMPORTANT: The friction washer may come off with the crankshaft balancer.
  3. Use J-41816  and J-41816-3  to remove the crankshaft balancer.
  4. Remove J 41816-2  .
