Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 45949  Pilot Bearing and Flywheel Locator Installer

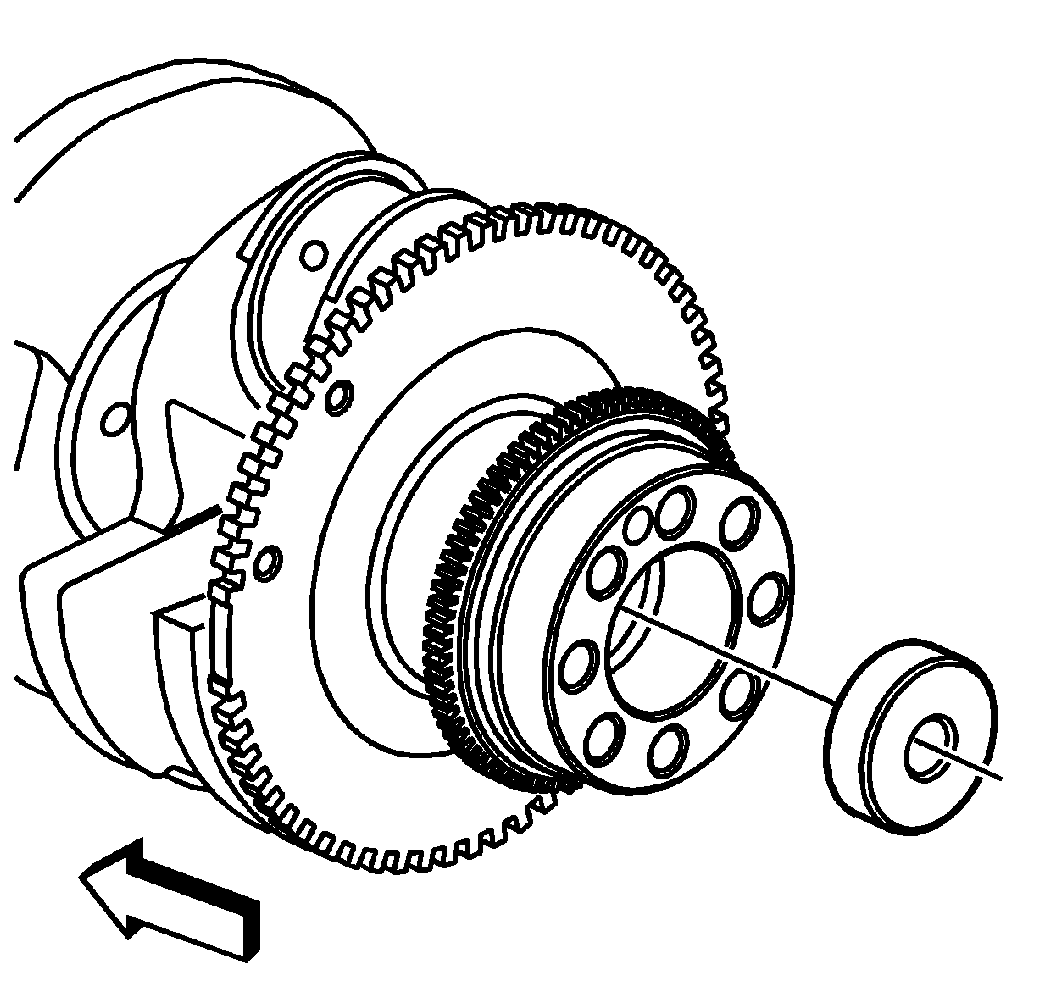

    Fig 1: View Of Clutch Pilot Bearing
    GM954074Courtesy of GENERAL MOTORS CORP.
  1. Install J 45949  into the pilot bearing.
  2. Install the pilot bearing into the crankshaft.
  3. Remove J 45949  .
