Camshaft Position Actuator Solenoid Valve Installation

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

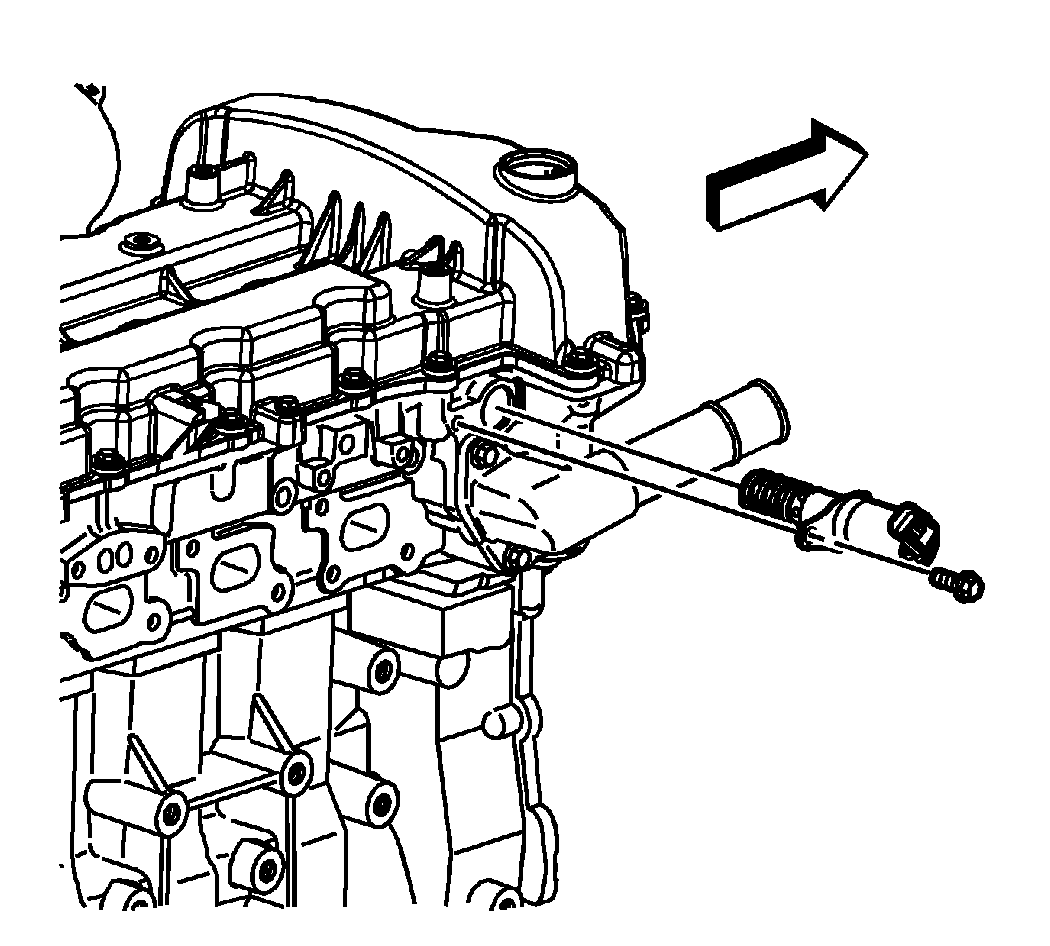

    Fig 1: Identifying Camshaft Position Actuator Valve & Bolt
    GM1816843Courtesy of GENERAL MOTORS CORP.
  1. Apply clean engine oil to the camshaft position actuator valve hole.
  2. Install the camshaft position actuator valve.
  3. Add threadlock GM P/N 12346004 (Canadian P/N 10953480) to the camshaft position actuator valve bolt threads.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the camshaft position actuator valve bolt.

    Tighten:  Tighten the camshaft position actuator valve bolt to 10 N.m (89 lb in).
