Camshaft Cover Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

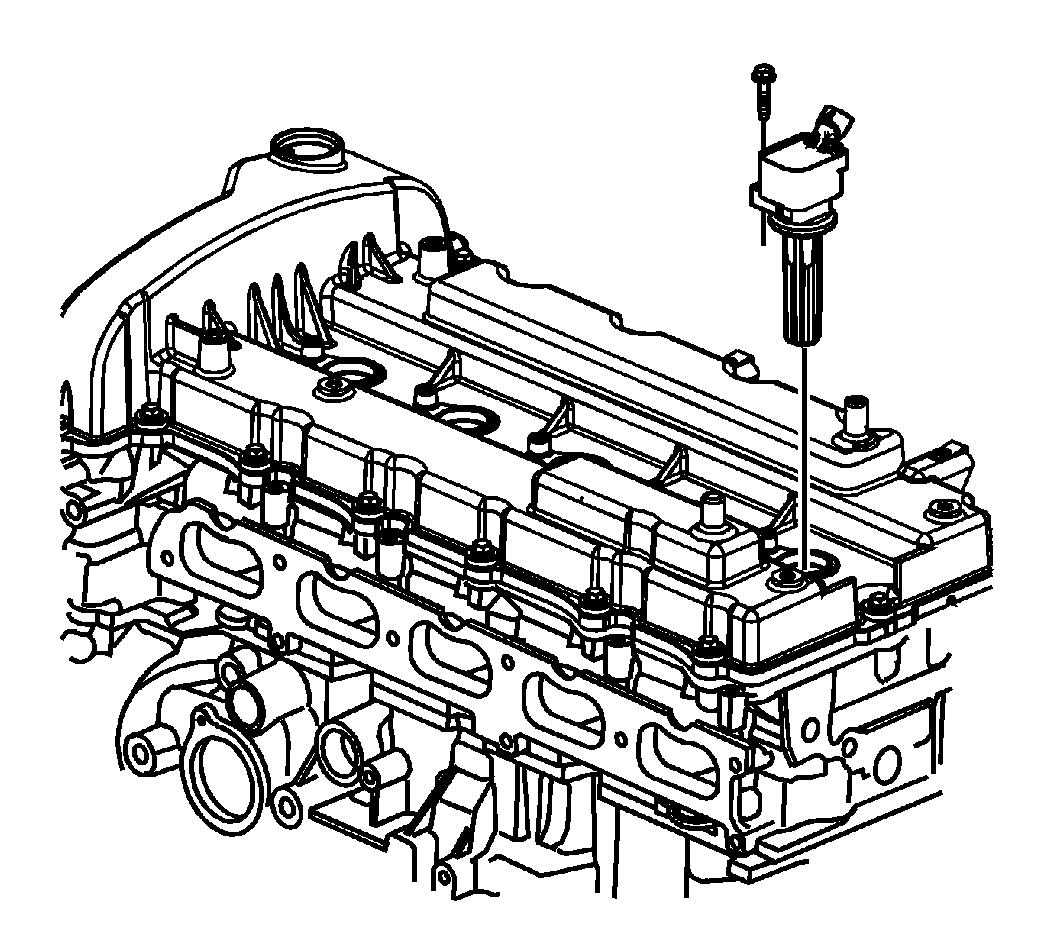

    Fig 1: View Of Ignition Control Modules & Bolts
    GM1816279Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition control modules and bolts.

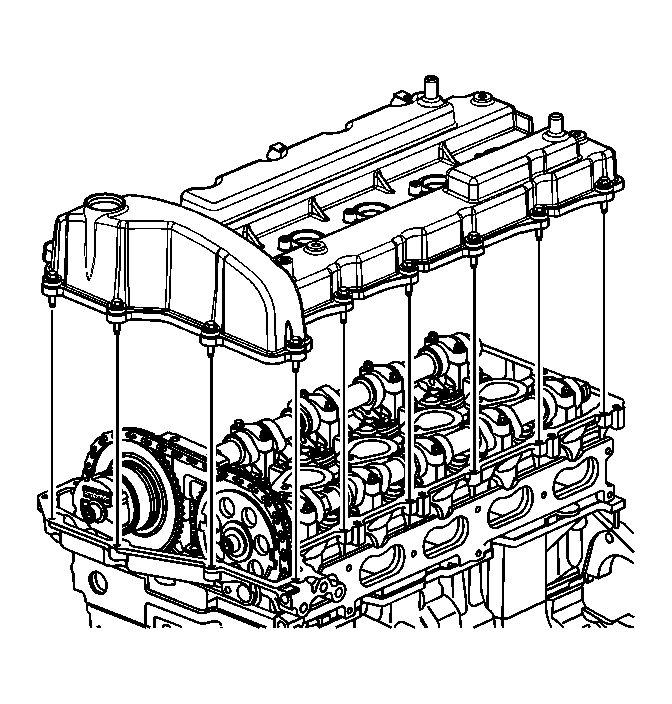

    2. Fig 2: Identifying Camshaft Cover & Bolts
    GM1816280Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft cover and bolts.
  3. Remove the discard the camshaft cover seal.
