Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 45849  Bearing Remover

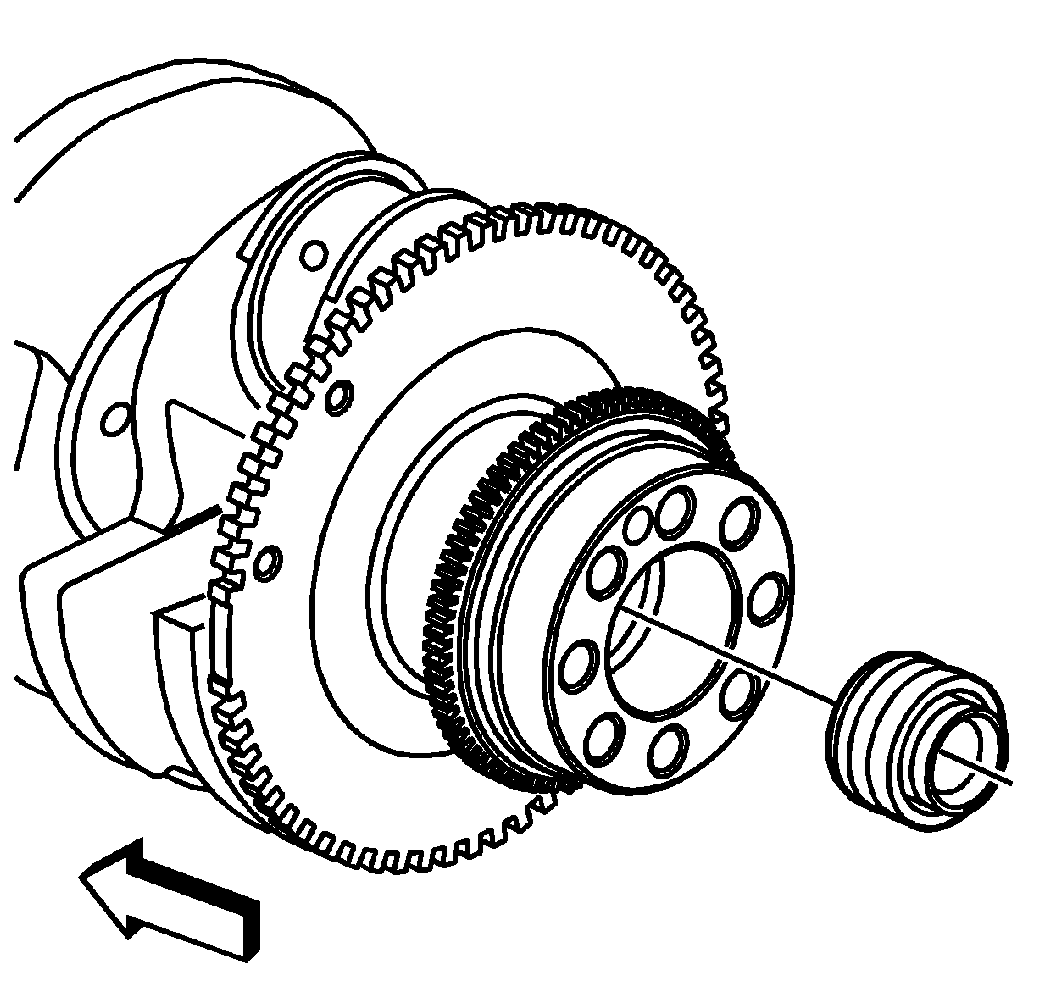

    Fig 1: View Of Flywheel Locator
    GM954077Courtesy of GENERAL MOTORS CORP.
  1. Install J 45849  into the flywheel locator.
  2. Remove the flywheel locator from the crankshaft.
  3. Remove J 45849  .
