Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of EVAP Canister Purge Pipe, Throttle Body Module & EVAP Canister Purge Solenoid Valve
    GM1352026Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
  2. Disconnect the evaporative emission (EVAP) canister purge pipe (1) from the throttle control module (2). Refer to Plastic Collar Quick Connect Fitting Service .

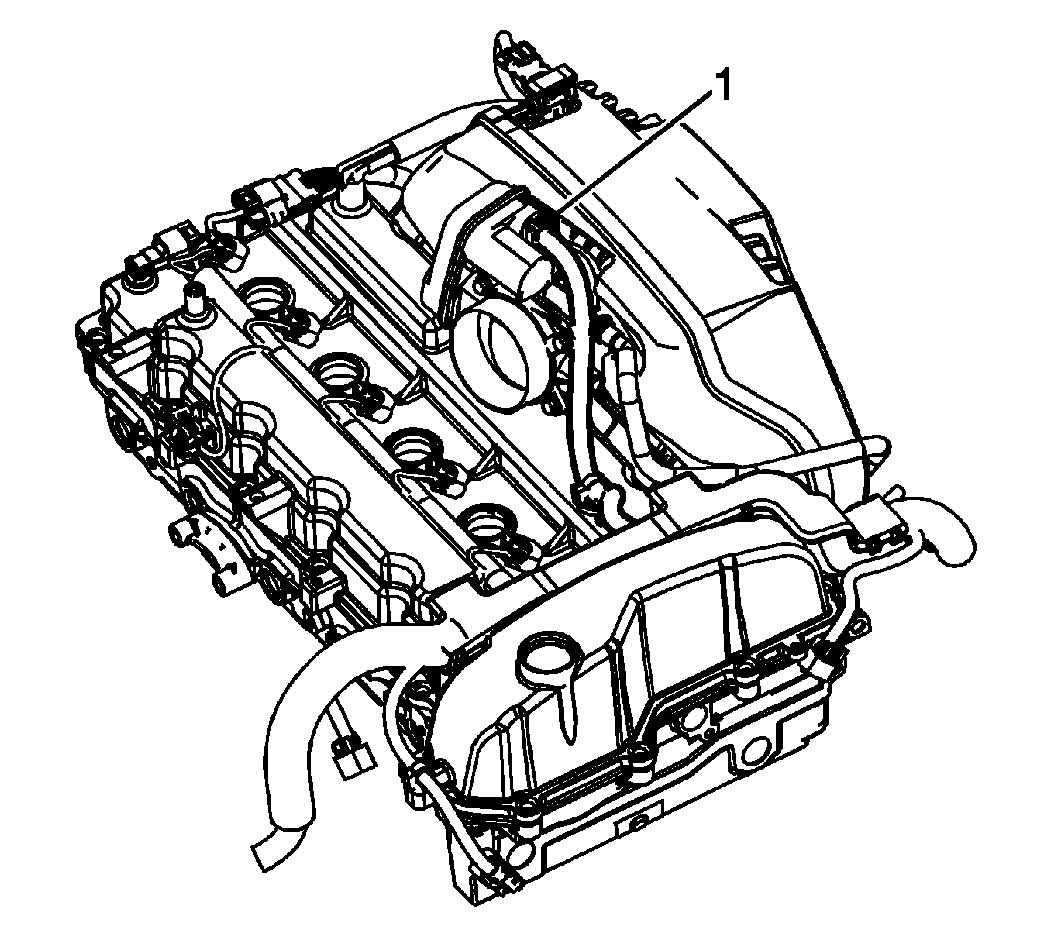

    3. Fig 2: View Of Engine Wiring Harness Electrical Connector
    GM1771749Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine wiring harness electrical connector (1) from the throttle body control module.

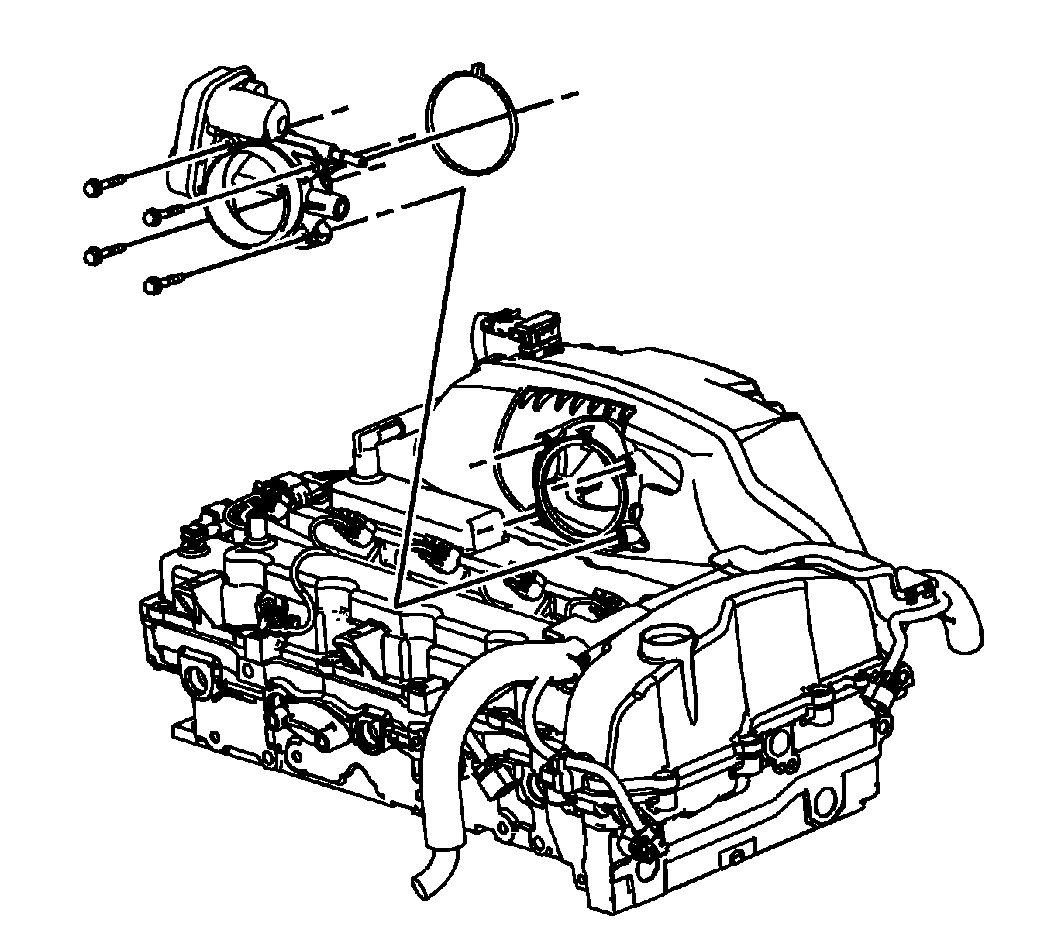

    4. Fig 3: Identifying Throttle Control Module Bolts
    GM1771750Courtesy of GENERAL MOTORS CORP.
  4. Remove the throttle control module bolts.
  5. Remove the throttle control module and the seal from the intake manifold.
  6. Clean the gasket surface.
