Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Air Injection (AIR) Pump Outlet Hose
    GM1749355Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Disconnect the secondary air injection (AIR) pump outlet hose quick connect fitting from the AIR check valve. Refer to Plastic Collar Quick Connect Fitting Service .

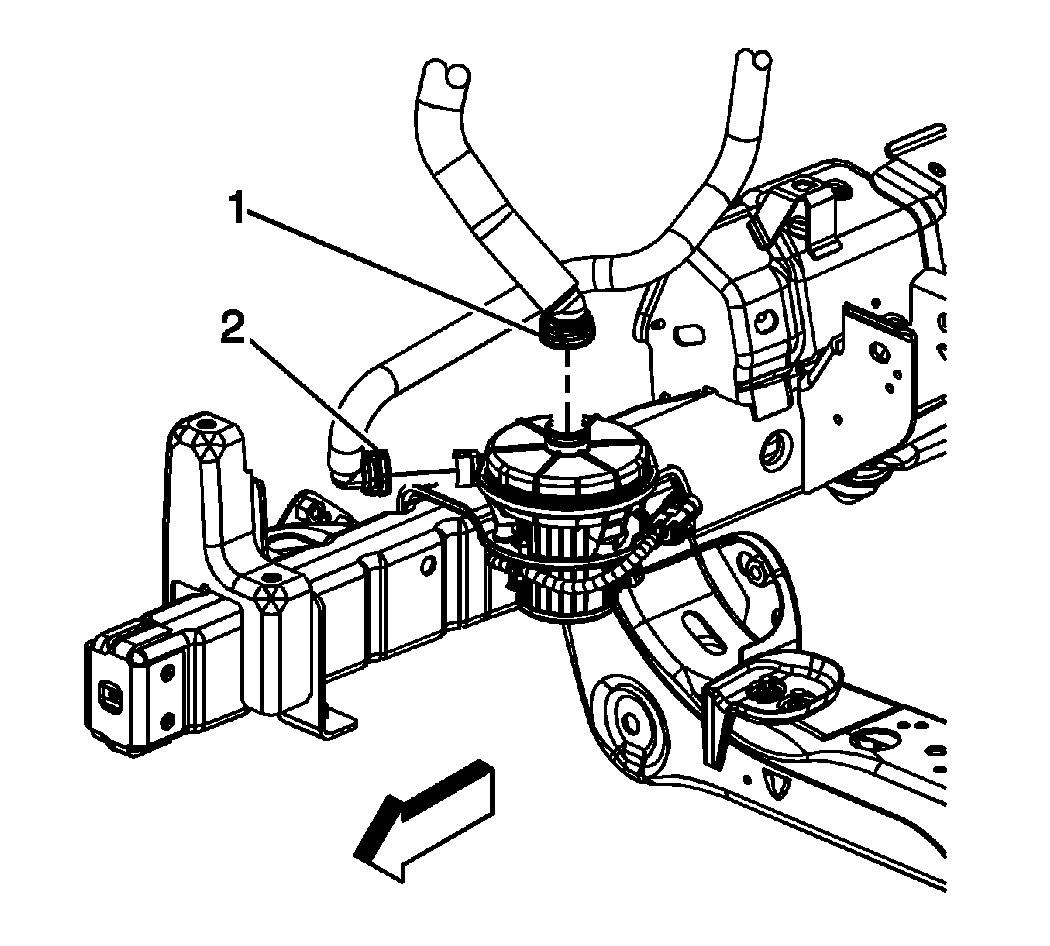

    4. Fig 2: Removing/Installing Air Injection (AIR) Pump Inlet & Outlet Hoses
    GM1749357Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the AIR pump outlet hose quick connect fitting (2) from the AIR pump. Refer to Plastic Collar Quick Connect Fitting Service .
  5. Remove the AIR pump outlet hose from the vehicle.
