Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.

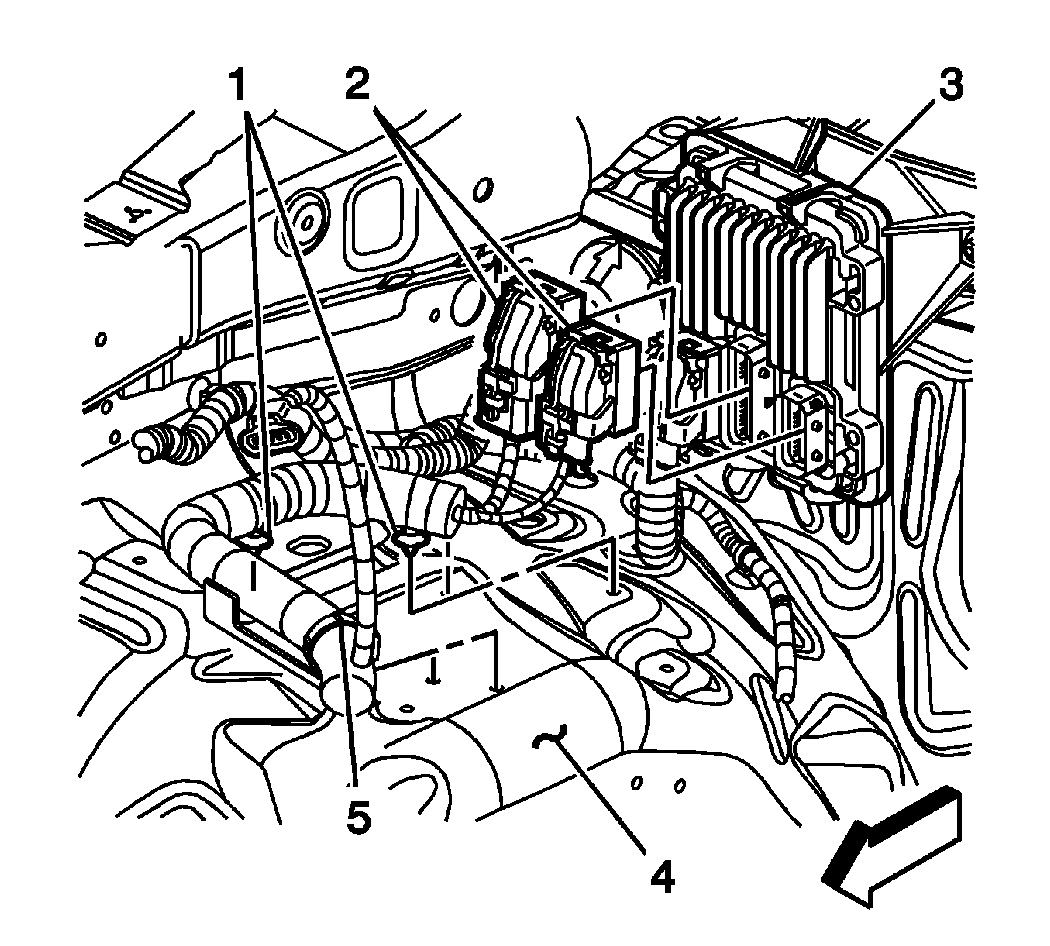

    2. Fig 1: View Of Engine Wiring Harness & Retainers
    GM1350711Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the PCM harness connectors (2) from the PCM (3).
    3. NOTE: Do not touch the connector pins or soldered components on the circuit board in order to prevent possible electrostatic discharge (ESD) damage to the PCM.

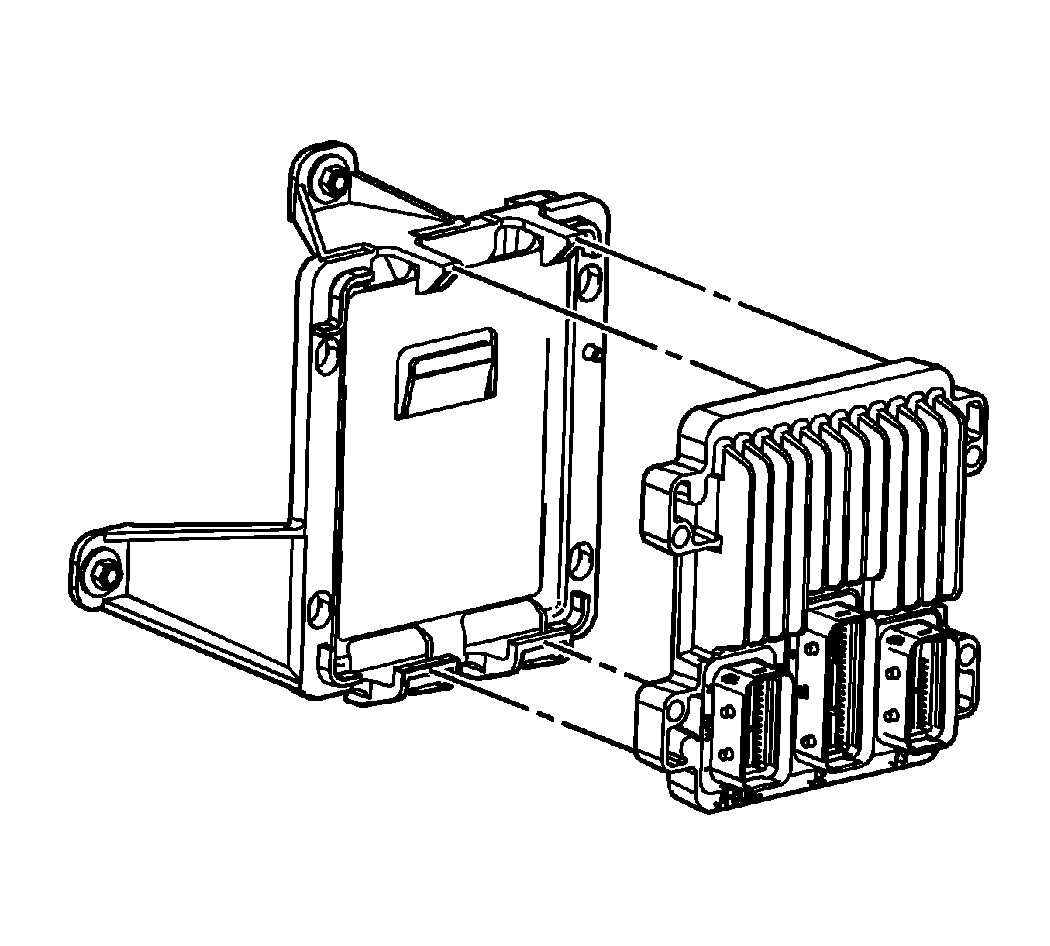

    Fig 2: View Of PCM
    GM1352004Courtesy of GENERAL MOTORS CORP.
  3. Disengage the PCM bracket mounting tabs, while removing the PCM.
