Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

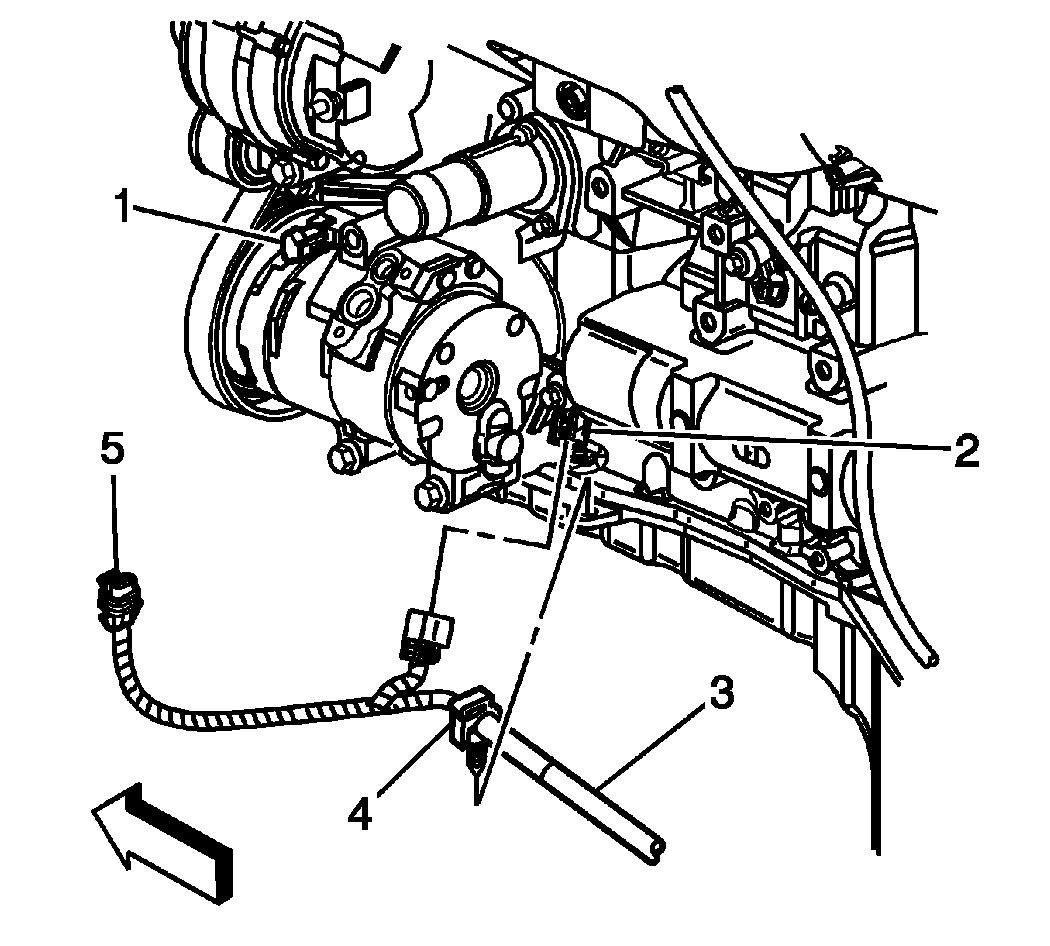

    Fig 1: View Of #1 Knock Sensor & Engine Oil Pan Rail Engine Wiring Harness Connectors
    GM1352025Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the KS (2) and the retaining bolt to the engine block, positioning the electrical terminals down.

    Tighten:  Tighten the knock sensor (KS) bolt to 25 N.m (18 lb ft).

  2. Connect the engine wiring harness electrical connector to the KS (2).
  3. Lower the vehicle.
