Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Fuel and Evaporative Emission Pipe Caution .
CAUTION: Refer to Gasoline/Gasoline Vapors Caution .
NOTE: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Notice .
NOTE:
  • Do not attempt to straighten kinked nylon pipes. Replace any kinked nylon pipes in order to prevent damage to the vehicle.
  • Do not attempt to repair sections of nylon pipes. Replace damaged nylon pipes.
  • Replace the vapor hoses/pipes with original equipment or parts that meet GM specifications.
    Fig 1: Identifying Chassis Fuel Feed And Evap Line Quick Connect Fittings
    GM1766566Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Disconnect the evaporative emission (EVAP) line quick connect fitting (1) from the engine EVAP line. Refer to Plastic Collar Quick Connect Fitting Service .
    3. Fig 2: View Of EVAP Assembly
    GM1361712Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the chassis EVAP line (2) quick connect fitting from the EVAP canister (5). Refer to Plastic Collar Quick Connect Fitting Service .

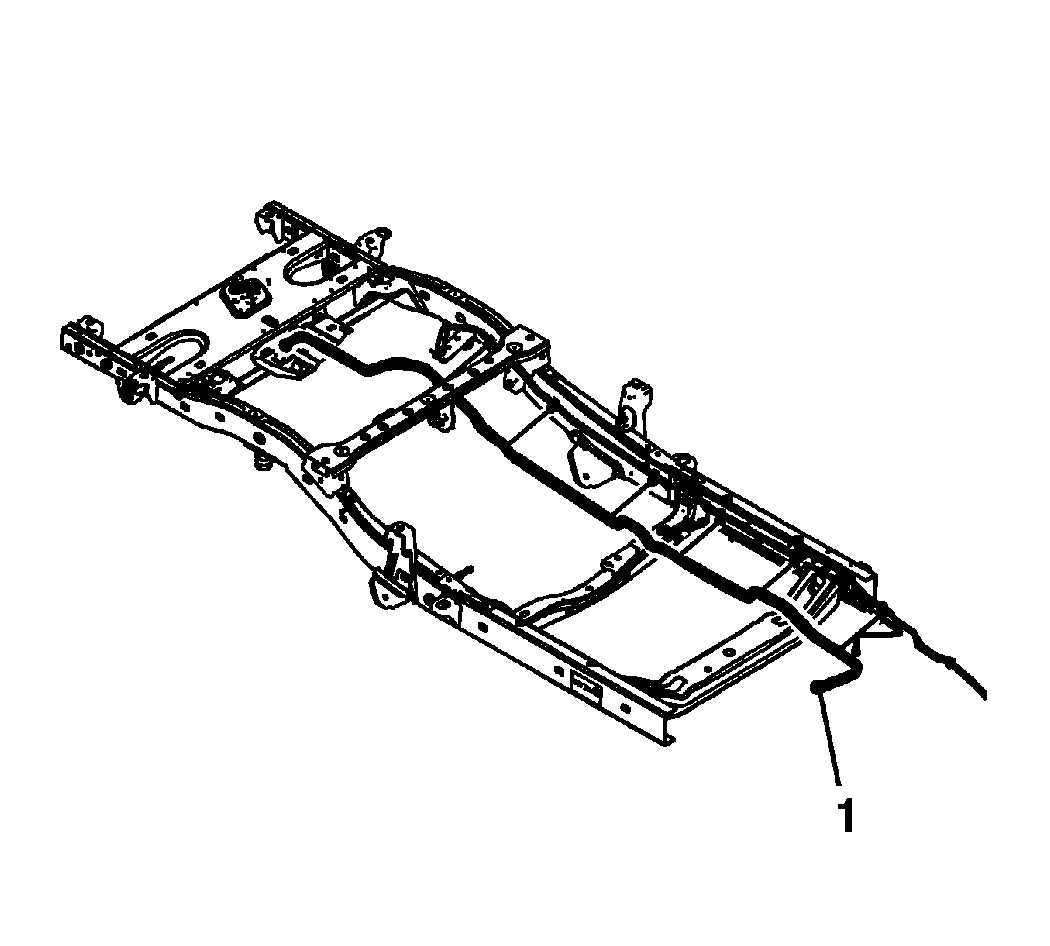

    4. Fig 3: View of chassis EVAP line
    GM1770892Courtesy of GENERAL MOTORS CORP.
  4. Disengage the EVAP pipe from the retaining clips.
  5. Remove the EVAP pipe from the vehicle.
