Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

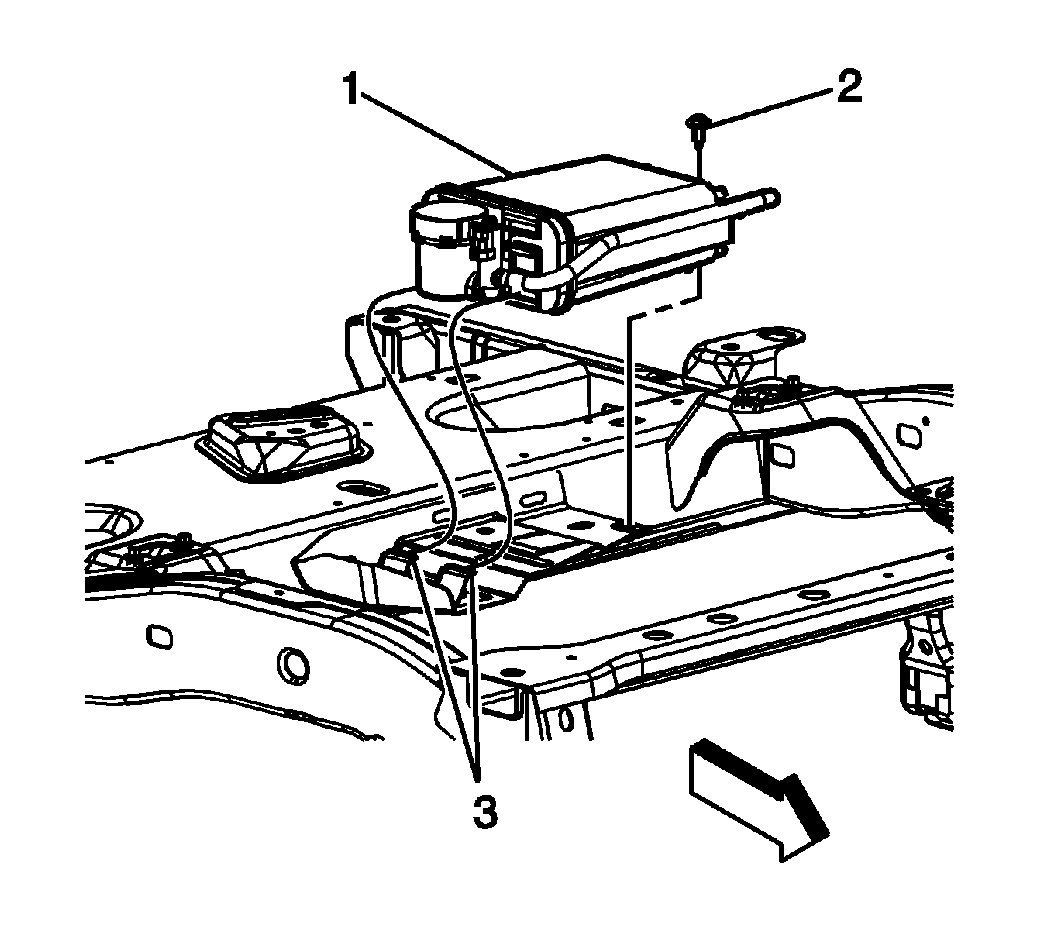

    Fig 1: View Of EVAP Canister
    GM1361733Courtesy of GENERAL MOTORS CORP.
  1. Position the EVAP canister (1) to the crossmember bracket tabs (3).
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolt (2) securing the EVAP canister (1) to the crossmember.

    Tighten:  Tighten the EVAP canister bolt to 25 N.m (18 lb ft).

    3. Fig 2: View Of EVAP Assembly
    GM1361712Courtesy of GENERAL MOTORS CORP.
  3. Slide the EVAP canister vent solenoid valve (4) over the bracket.

    Ensure the valve (4) is properly retained to the bracket.

  4. Refer to Plastic Collar Quick Connect Fitting Service  in order to connect the following to the EVAP canister (5):
    • The EVAP vent hose (1)
    • The EVAP chassis hose/pipe (2)
    • The EVAP canister vent solenoid valve (4)
  5. Connect the electrical connector to the EVAP canister vent solenoid valve (4).
  6. Lower the vehicle.
