Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

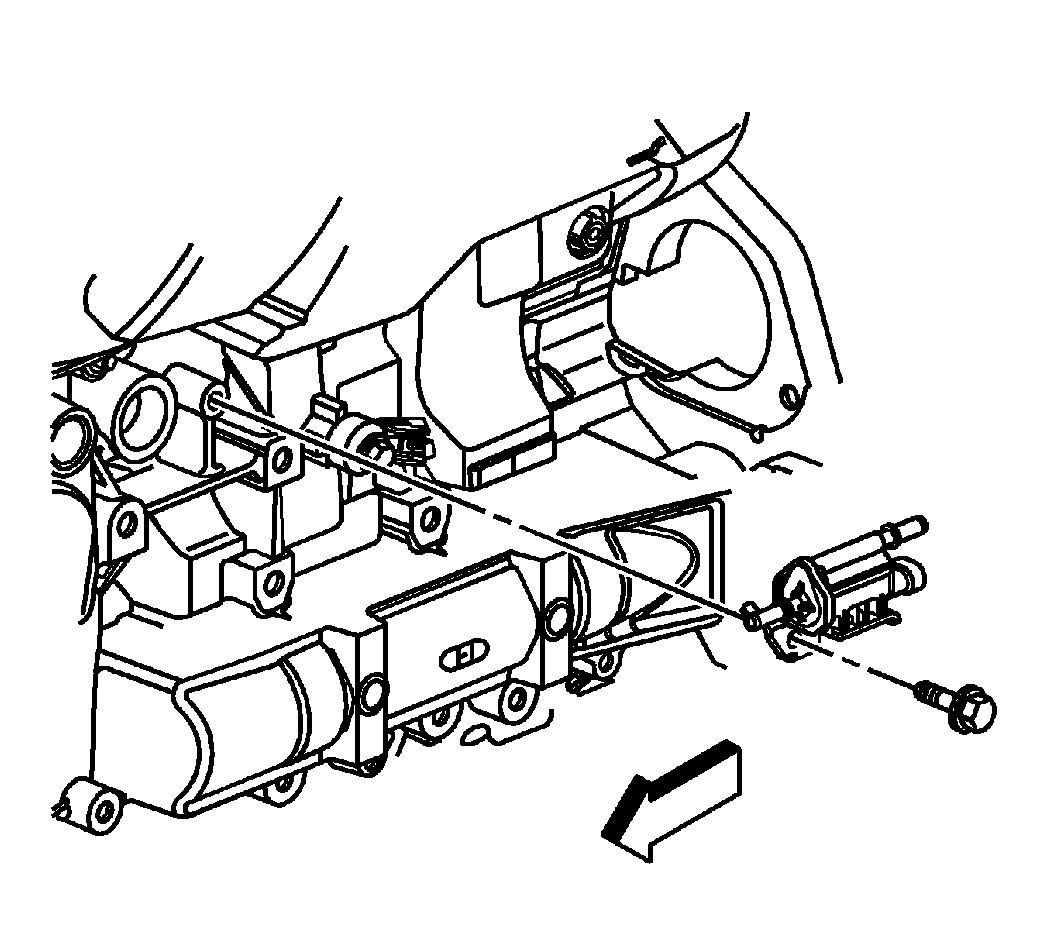

    Fig 1: View Of EVAP Canister Purge Solenoid Valve
    GM1352022Courtesy of GENERAL MOTORS CORP.
  1. Position the EVAP canister purge solenoid valve to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolt securing EVAP canister purge solenoid valve to the engine.

    Tighten:  Tighten the EVAP canister purge solenoid valve bolt to 10 N.m (89 lb in).

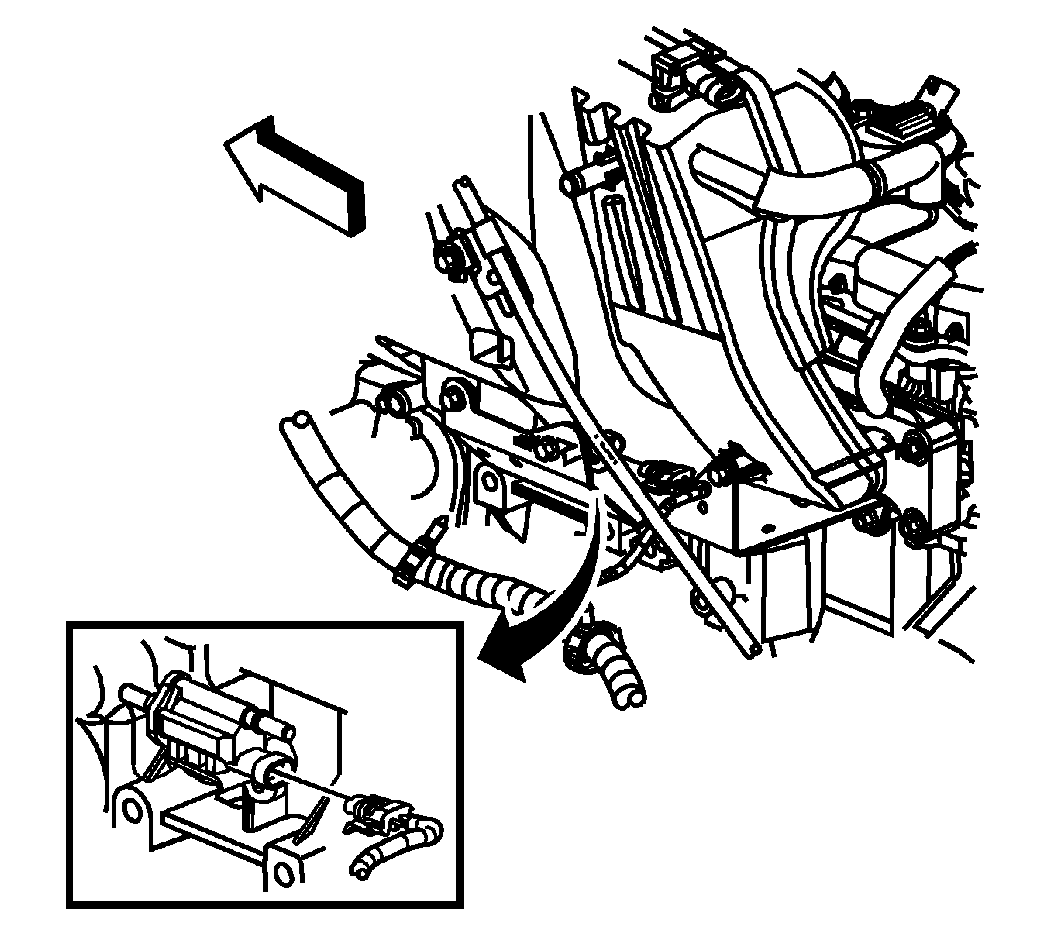

    3. Fig 2: View Of EVAP Canister Purge Solenoid Valve Engine Wiring Harness Connector
    GM1352021Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the EVAP canister purge solenoid valve.
    4. Fig 3: View Of EVAP Canister Purge Pipe, Throttle Body Module & EVAP Canister Purge Solenoid Valve
    GM1352026Courtesy of GENERAL MOTORS CORP.
  4. Refer to Plastic Collar Quick Connect Fitting Service  in order to connect the following to the EVAP canister purge solenoid valve (3):
    • The EVAP purge hose/pipe
    • The EVAP purge hose (1)
  5. Install the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  6. Lower the vehicle.
