Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

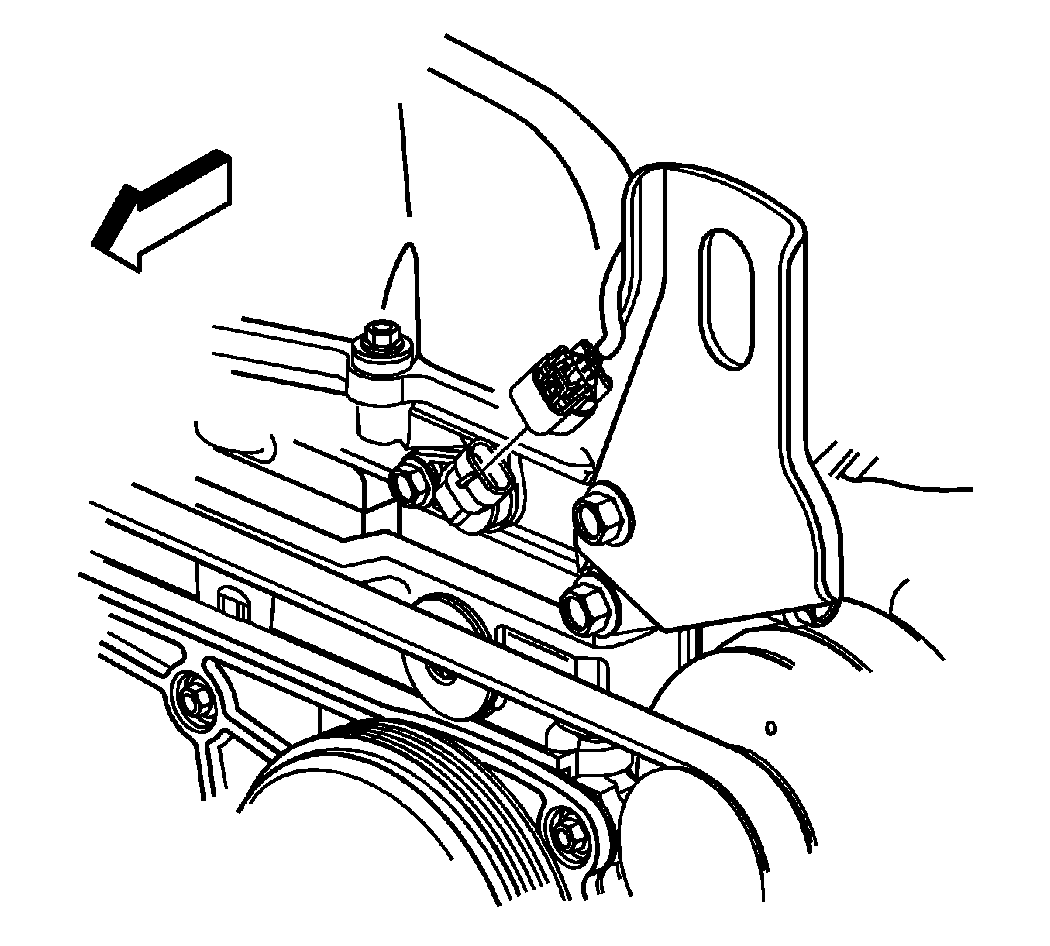

    Fig 1: View Of Intake CMP Sensor Engine Wiring Harness Connector
    GM1350719Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector from the intake camshaft position (CMP) sensor.

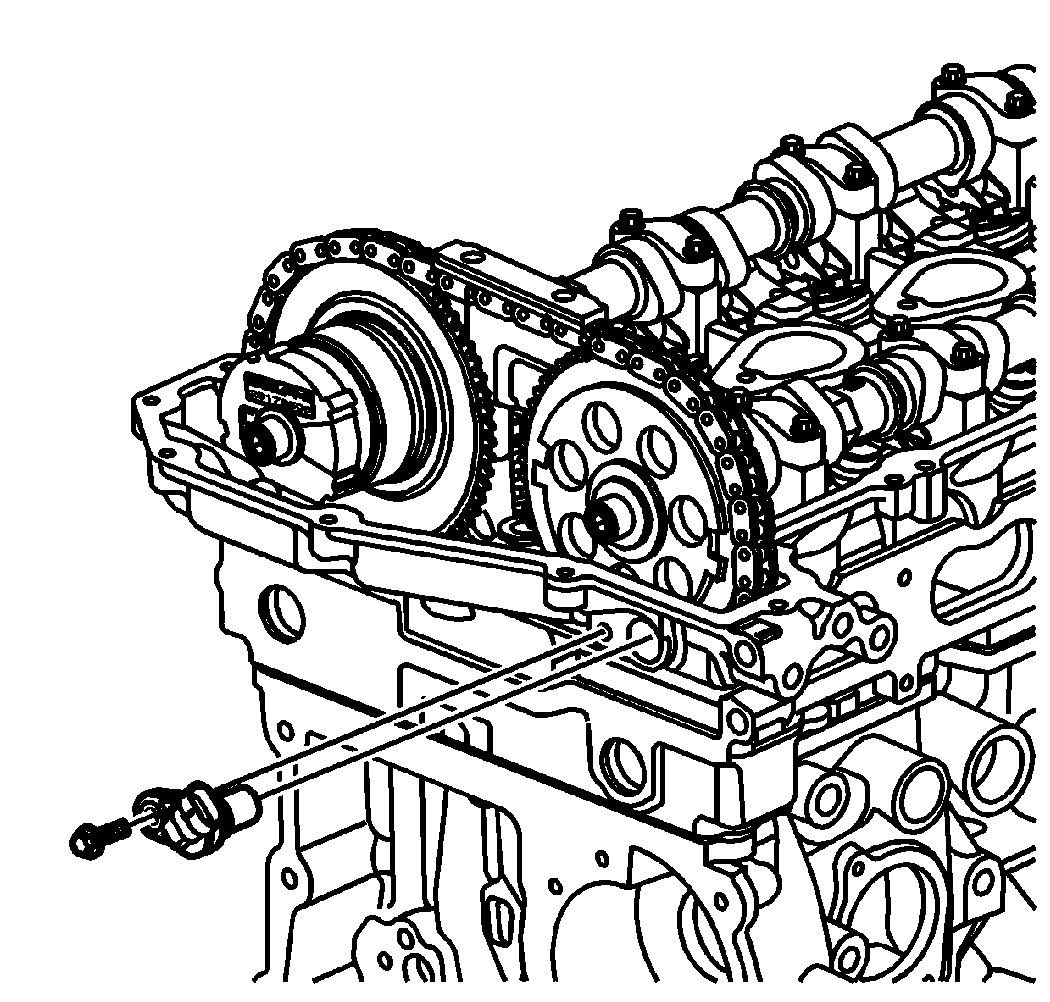

    2. Fig 2: View Of Intake Camshaft Sensor
    GM858173Courtesy of GENERAL MOTORS CORP.
  2. Remove the intake CMP sensor retaining bolt.
  3. Remove the intake CMP sensor from the cylinder head.
