Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of CMP Sensor Connector, Exhaust Camshaft Actuator Connector & Engine Wiring Harness Retainer
    GM1350714Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector (4) from the exhaust camshaft position (CMP) sensor (5).

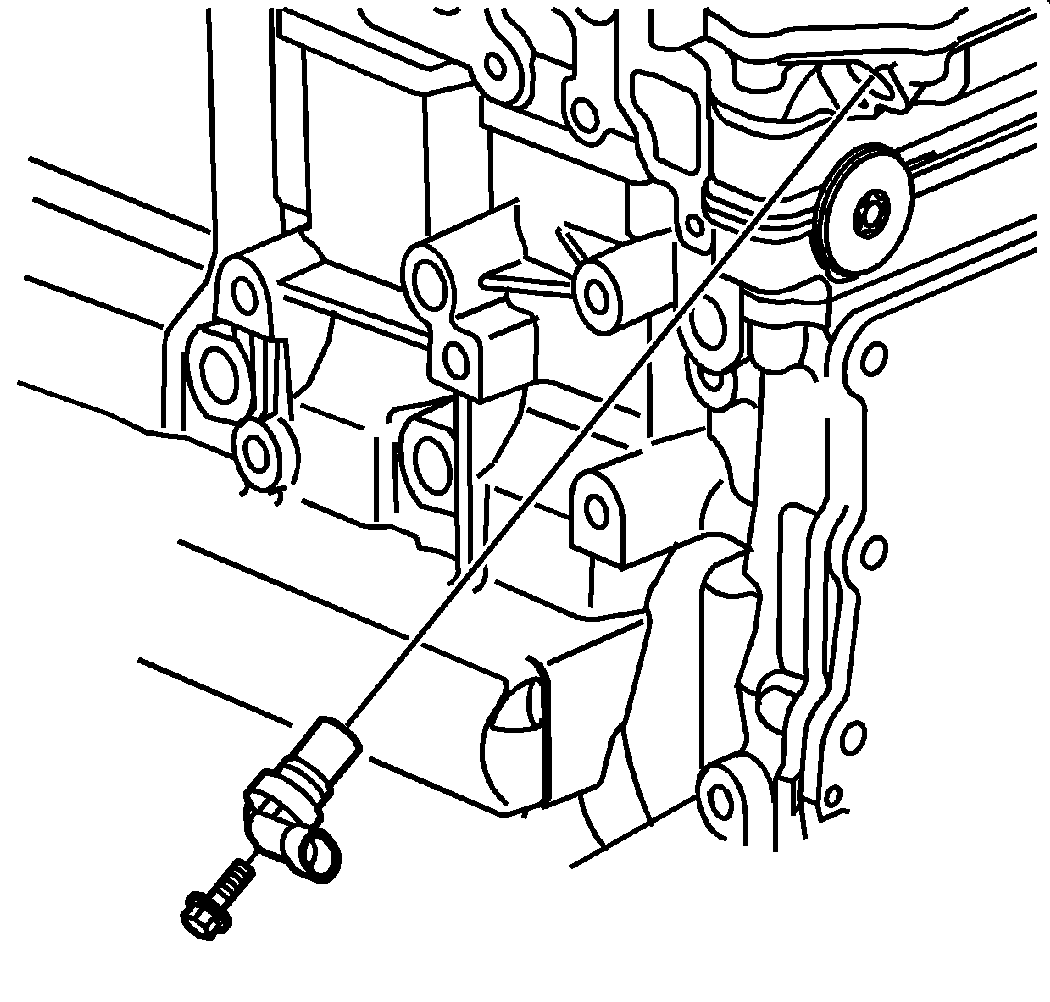

    2. Fig 2: View Of Exhaust Camshaft Sensor
    GM858172Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust CMP sensor retaining bolt.
  3. Remove the exhaust CMP sensor from the cylinder head.
