Installation procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Air Cleaner Resonator
    GM1352016Courtesy of GENERAL MOTORS CORP.
  1. Complete the following in order to install the air cleaner resonator (2) and outlet duct to the engine:
    1. Position the outlet duct (4) over the throttle body assembly.
    2. Install the crankcase ventilation hose (3) to the camshaft cover port.
    3. Align the air cleaner outlet resonator bolts (1) with the captured nuts on the camshaft cover.

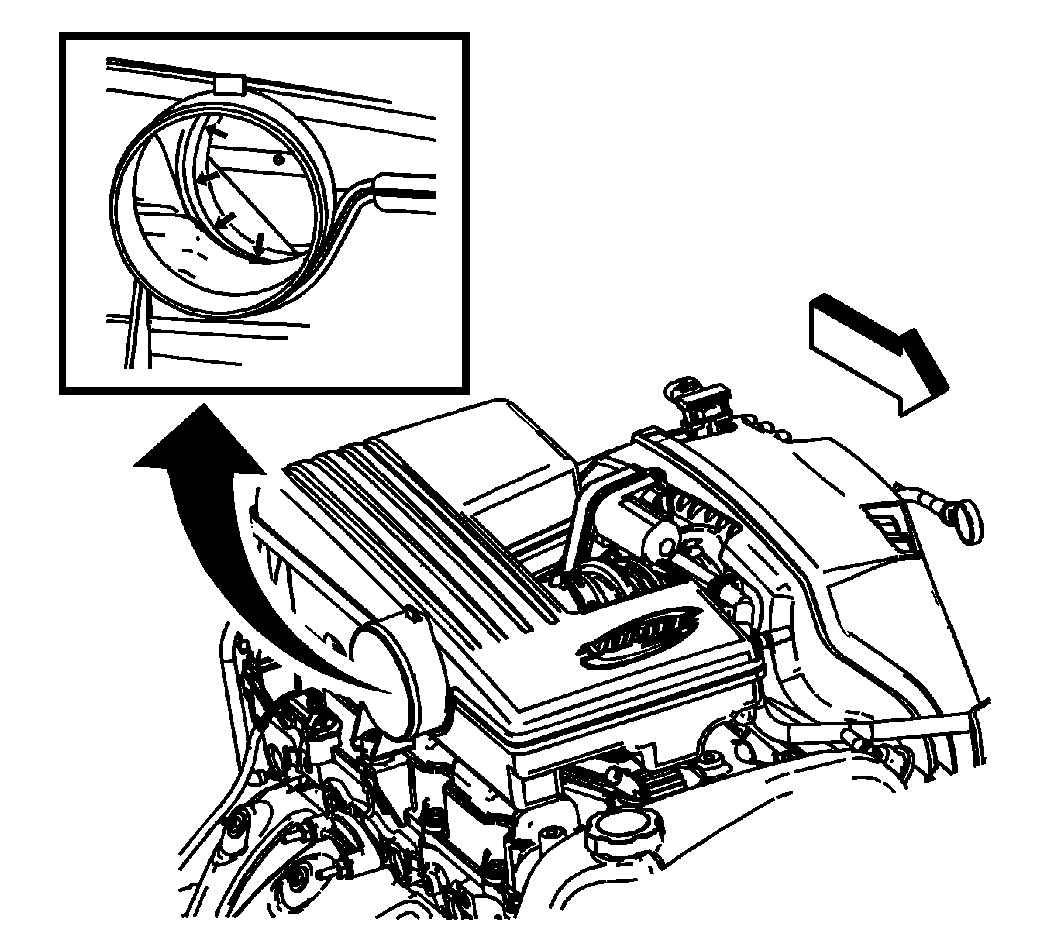

    2. Fig 2: View Of Outlet Duct
    GM1361707Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the outlet duct is properly installed to the throttle body assembly.
  2. View into the air cleaner resonator to ensure the outlet duct is not rolled under at the throttle body assembly.
    3. Fig 3: View Of Air Cleaner Resonator
    GM1352016Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Properly position the air cleaner resonator outlet duct clamp (4).

    Tighten:  Tighten the clamp (4) to 6 N.m (53 lb in).

  4. Install the 2 air cleaner outlet resonator to camshaft cover bolts (1).

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

  5. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
