Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of MAF/IAT Sensor
    GM1352006Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.
    2. Fig 2: Locating Air Injection (AIR) Pump Inlet Hose
    GM1749356Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the secondary air injection (AIR) pump inlet hose quick connect fitting from the air cleaner assembly. Refer to Plastic Collar Quick Connect Fitting Service .

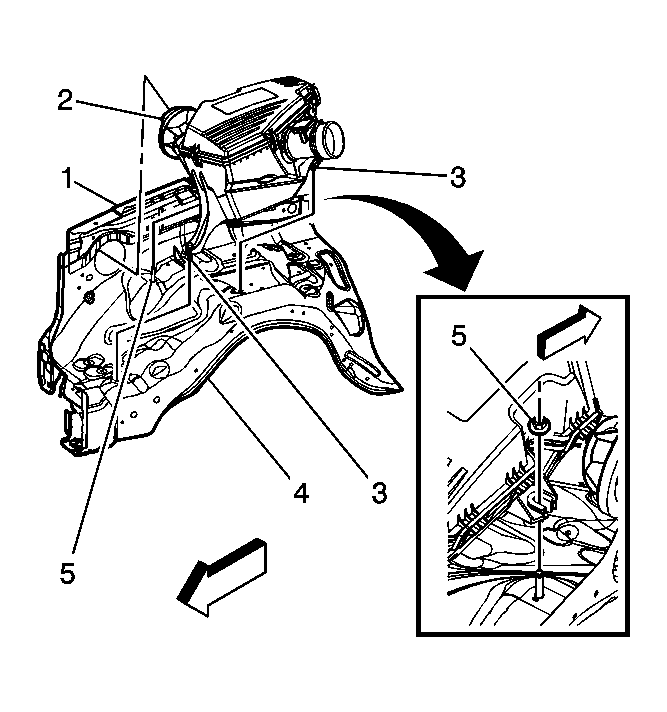

    3. Fig 3: View Of Air Cleaner Assembly
    GM1352017Courtesy of GENERAL MOTORS CORP.
  3. Loosen the clamp and disconnect the air cleaner outlet duct from the air cleaner assembly.
  4. Remove the 2 bolts (3) and nut (5) securing the air cleaner assembly to the wheel house (4).
  5. Remove the air cleaner assembly from the vehicle.
