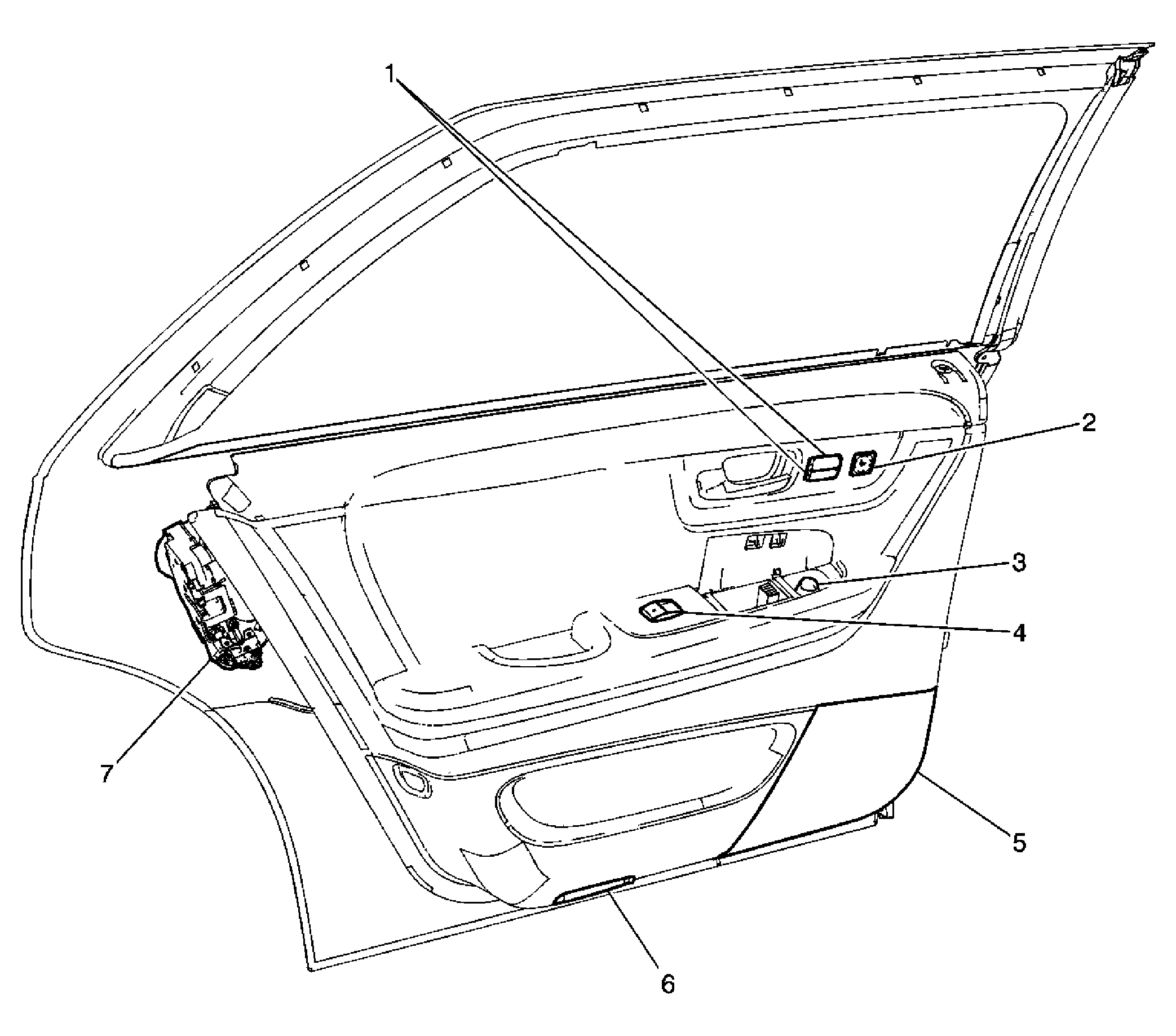

Door Components - Left Rear
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout |
Component Name |
| 1 |
Heated Seat Switches |
| 2 |
Seat Lumbar Switch (ARC) |
| 3 |
Auxiliary Power Outlet - Left Rear |
| 4 |
Window Switch - Left Rear |
| 5 |
Speaker - Left Rear Door |
| 6 |
Courtesy Lamp |
| 7 |
Door Latch Assembly |
