Rear Compartment Lid Emblem/Nameplate Replacement (Emblem)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

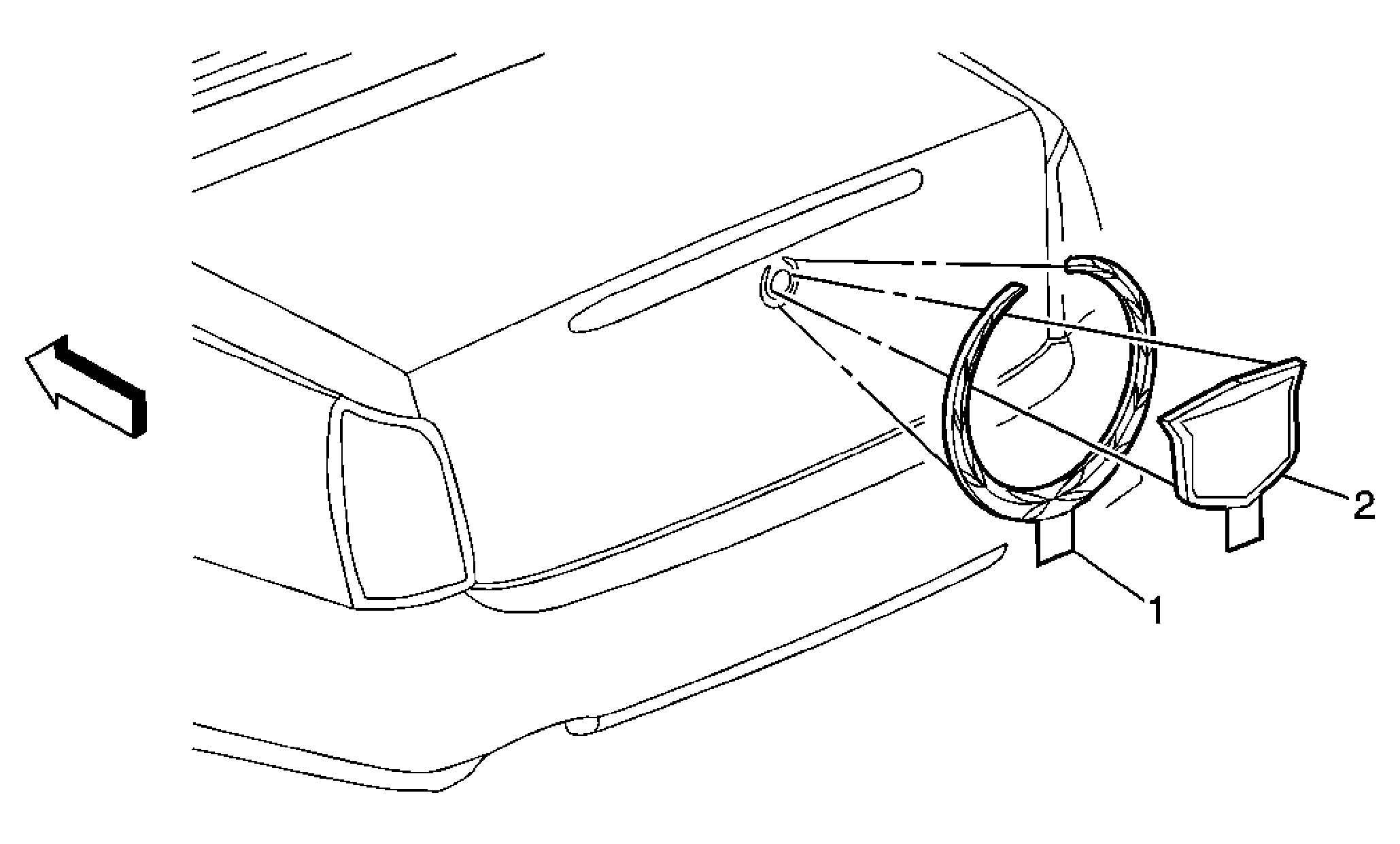

Fig 1: Emblem/Nameplate Replacement - Rear Compartment Lid (Wreath and Crest)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Compartment Lid Emblem (Wreath) Procedure When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing the new emblem. Apply the new emblem with the rear compartment lid in the closed position. Apply pressure to the emblem to ensure full adhesion is made to the compartment lid.
2	Rear Compartment Lid Emblem (Crest) Procedure When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing the new nameplate. Apply the new emblem with the rear compartment lid in the closed position. Apply pressure to the nameplate to ensure full adhesion is made to the compartment lid.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Rear Compartment Lid Emblem (Wreath)

Procedure

When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing the new emblem.
Apply the new emblem with the rear compartment lid in the closed position.
Apply pressure to the emblem to ensure full adhesion is made to the compartment lid.

Rear Compartment Lid Emblem (Crest)

Procedure

When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old emblem. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing the new nameplate.
Apply the new emblem with the rear compartment lid in the closed position.
Apply pressure to the nameplate to ensure full adhesion is made to the compartment lid.
