Radiator Grille Emblem Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

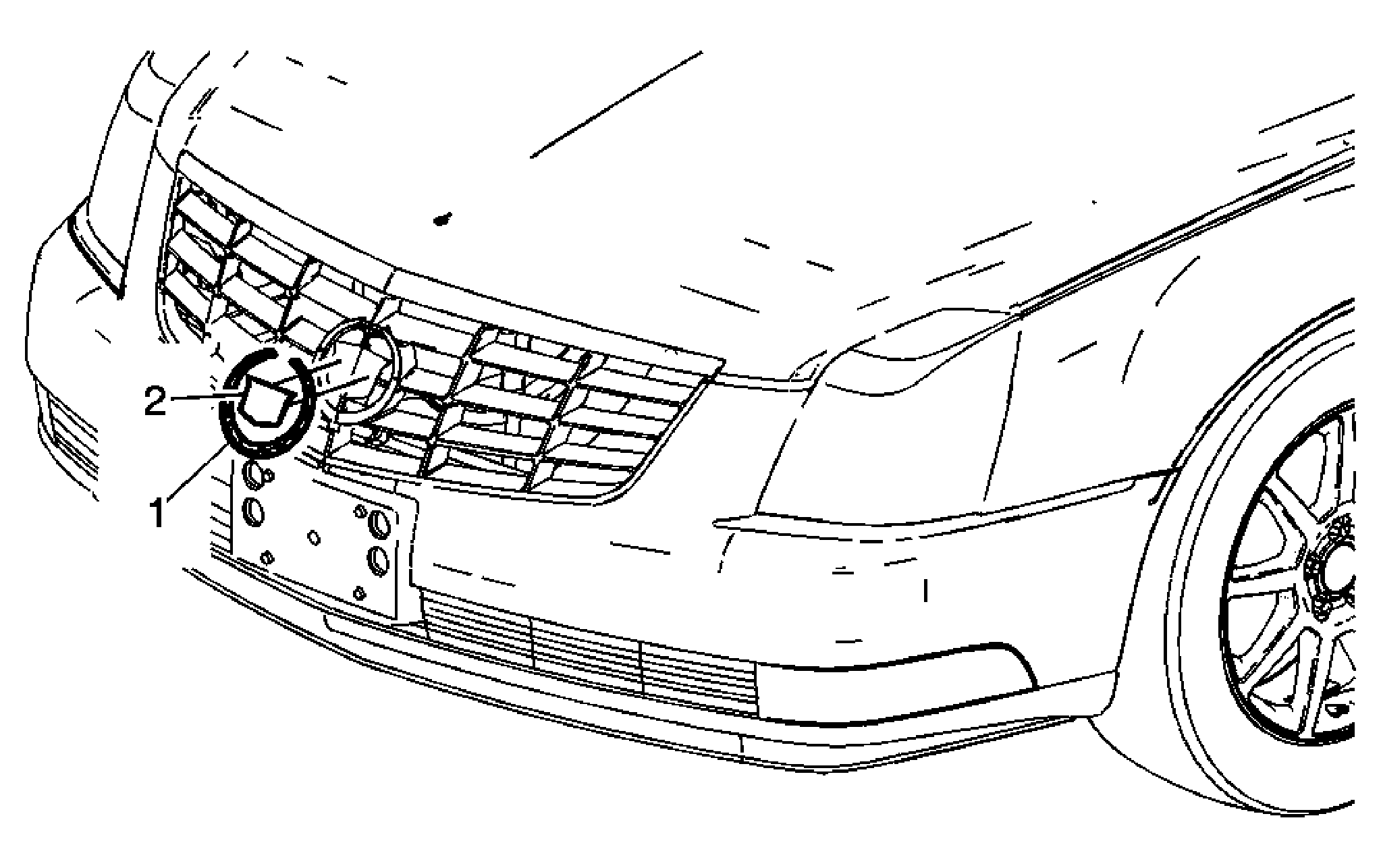

Fig 1: Radiator Grille Emblem

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Emblem Assembly, Radiator Grille (Wreath) Tip Clean the adhesive tape from the surface of the radiator grille and dry thoroughly before applying new emblem. Peel protective backing from emblem and ensure no foreign matter or dirt comes in contact with the adhesive backing prior to installation. Position the pins on the backside of the Wreath emblem to the holes located in the radiator grille. Install emblem and apply pressure to ensure full adhesion to the radiator grille.
2	Emblem Assembly, Radiator Grille (Crest) Tip Clean the adhesive tape from the surface of the radiator grille and dry thoroughly before applying new emblem. Peel protective backing from emblem and ensure no foreign matter or dirt comes in contact with the adhesive backing prior to installation. Position the pins on the backside of the Crest emblem to the holes located in the radiator grille. Install emblem and apply pressure to ensure full adhesion to the radiator grille.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Emblem Assembly, Radiator Grille (Wreath)

Tip

Clean the adhesive tape from the surface of the radiator grille and dry thoroughly before applying new emblem.
Peel protective backing from emblem and ensure no foreign matter or dirt comes in contact with the adhesive backing prior to installation.
Position the pins on the backside of the Wreath emblem to the holes located in the radiator grille.
Install emblem and apply pressure to ensure full adhesion to the radiator grille.

Emblem Assembly, Radiator Grille (Crest)

Tip

Clean the adhesive tape from the surface of the radiator grille and dry thoroughly before applying new emblem.
Peel protective backing from emblem and ensure no foreign matter or dirt comes in contact with the adhesive backing prior to installation.
Position the pins on the backside of the Crest emblem to the holes located in the radiator grille.
Install emblem and apply pressure to ensure full adhesion to the radiator grille.
