Ignition Coil Module Installation - Right Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

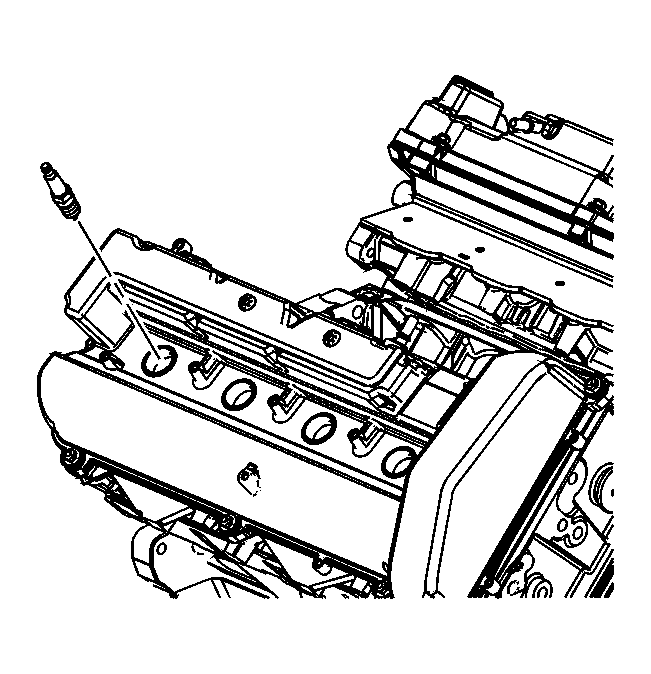

Fig 1: Identifying Spark Plug

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the right spark plugs.
Tighten: Tighten the spark plugs to 15 N.m (11 lb ft).

Fig 2: Identifying Spark Plug Boots

Courtesy of GENERAL MOTORS CORP.

Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984) to each spark plug boot (1) of the ignition coil assembly.

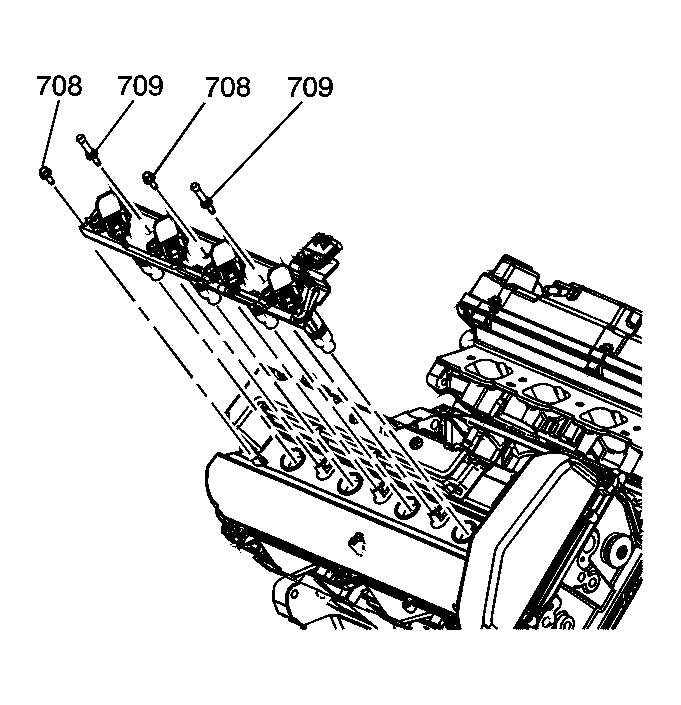

Fig 3: Identifying Ignition Coil Assembly Bolts & Ball Studs

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil assembly.
Install the ignition coil assembly bolts (708) and ball studs (709).
Tighten: Tighten the ignition coil assembly bolts (708) and ball studs (709) to 10 N.m (89 lb in).

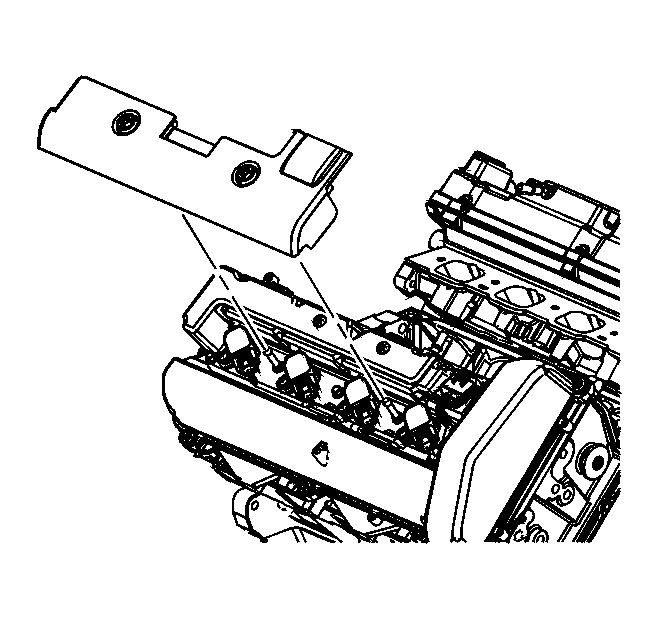

Fig 4: Identifying Ignition Coil Assembly Sight Shield Cover

Courtesy of GENERAL MOTORS CORP.

Install the ignition coil assembly sight shield cover.

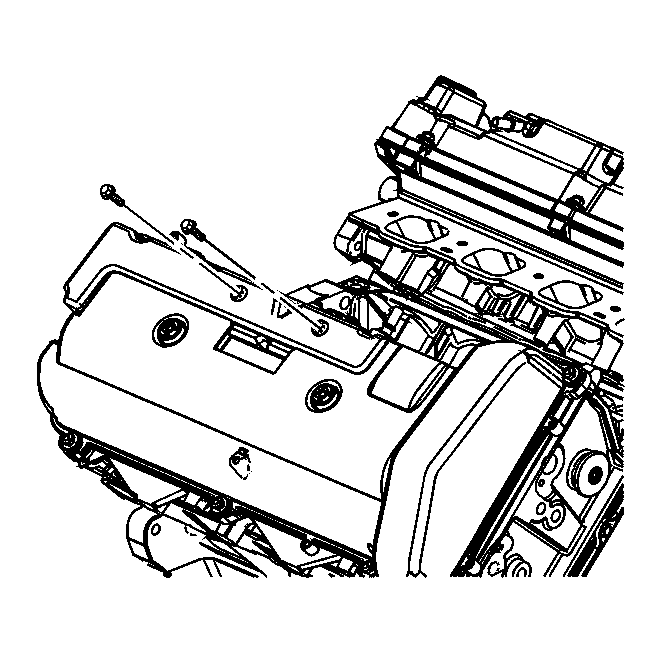

Fig 5: Identifying Fuel Injector Sight Shield Bracket

Courtesy of GENERAL MOTORS CORP.

If equipped, install the fuel injector sight shield bracket.
Install the fuel injector sight shield bracket bolts.
Tighten: Tighten the fuel injector sight shield bracket bolts to 10 N.m (89 lb in).
