Generator Installation

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

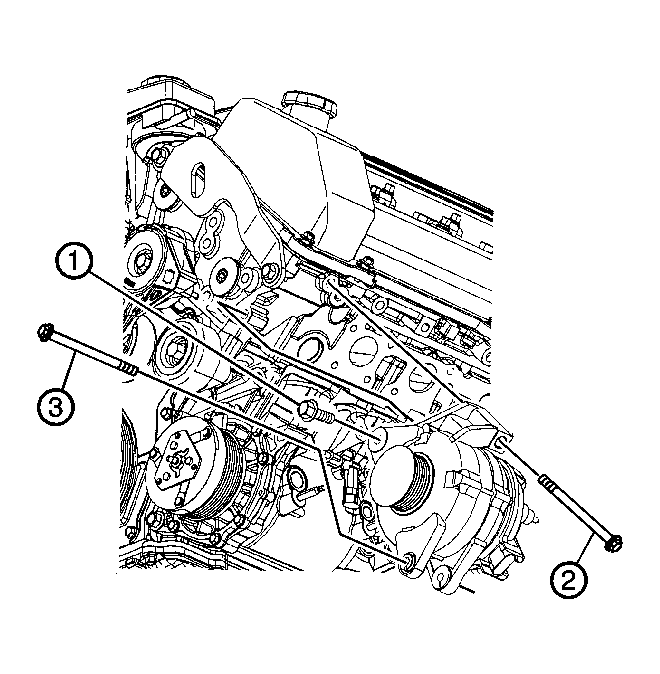

Fig 1: View of Generator Bolts Sequence

Courtesy of GENERAL MOTORS CORP.

Place the generator in position.
Install the generator side bolt finger tight.
Install the generator front bolts finger tight.

NOTE: Refer to Fastener Notice .

Tighten the generator bolts in the sequence shown.
Tighten:
1. Tighten the generator front upper bolt to 50 N.m (37 lb ft).
2. Tighten the generator side bolt to 50 N.m (37 lb ft).
3. Tighten the generator front lower bolt to 50 N.m (37 lb ft).
