Engine Prelubing

Tools Required

• J 42907  Oil Pressure Tester. See Special Tools .
• J 45299  Engine Preluber. See Special Tools .

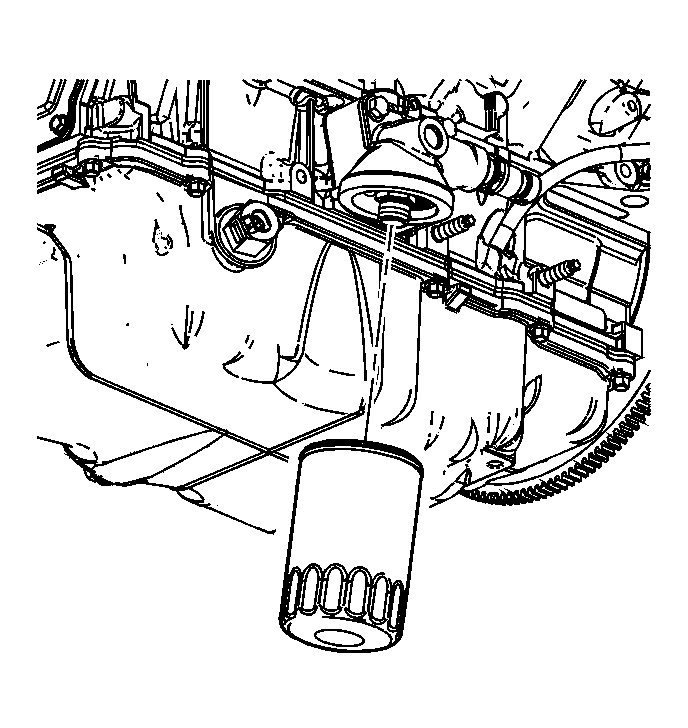

Fig 1: View Of Oil Filter
Courtesy of GENERAL MOTORS CORP.
1. Remove the engine oil filter.

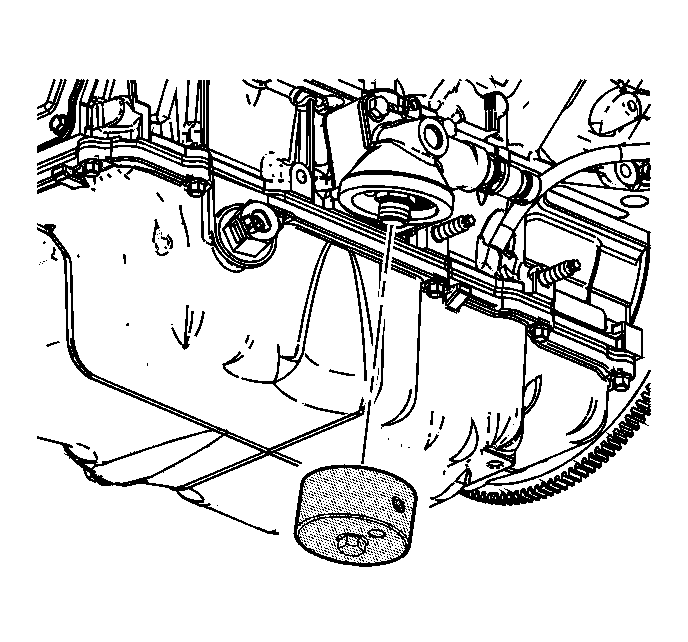

Fig 2: View Of J 42907 Oil Pressure Tester
Courtesy of GENERAL MOTORS CORP.
2. Install the J 42907  onto the oil filter adapter. See Special Tools .

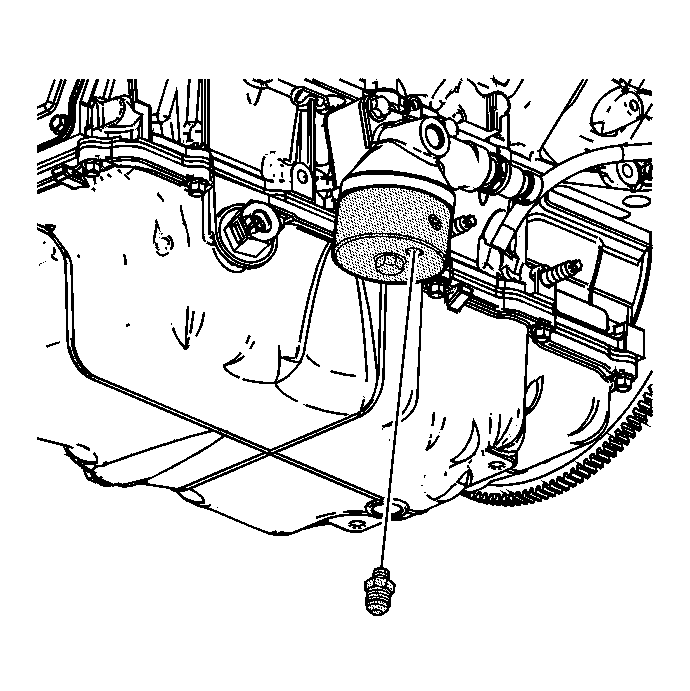

Fig 3: View Of 1/8 NPT Fitting
Courtesy of GENERAL MOTORS CORP.
3. Install the 1/8 NPT fitting from the J 45299  into the port on the J 42907  . See Special Tools .

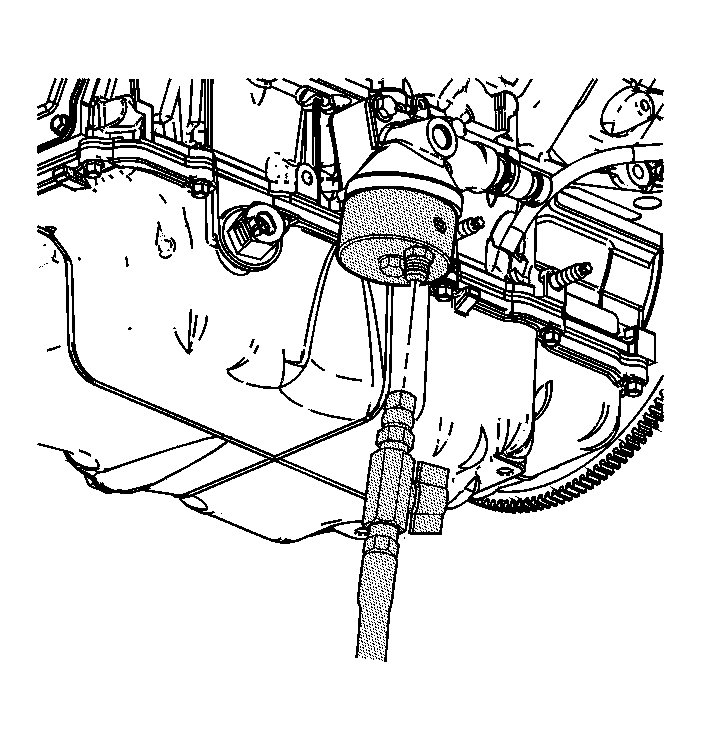

Fig 4: View Of J 45299 Flexible Hose
Courtesy of GENERAL MOTORS CORP.
4. Install the J 45299  flexible hose to the fitting. See Special Tools .
Fig 5: Identifying Engine Preluber J 45299
Courtesy of GENERAL MOTORS CORP.
5. Open the valve of the J 45299  . See Special Tools .
IMPORTANT: A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Use the approved engine oil as specified in the owner's manual.
6. Pump the handle of the J 45299  in order to flow a minimum of 1-1. See Special Tools .9 liters (1-2 quarts) of fresh clean engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
7. Close the valve of the J 45299  . See Special Tools .
Fig 6: View Of J 45299 Flexible Hose
Courtesy of GENERAL MOTORS CORP.
8. Remove the J 45299  flexible hose. See Special Tools .
Fig 7: View Of 1/8 NPT Fitting
Courtesy of GENERAL MOTORS CORP.
9. Remove the fitting from the J 42907  . See Special Tools .
Fig 8: View Of J 42907 Oil Pressure Tester
Courtesy of GENERAL MOTORS CORP.
10. Remove the J 42907  from the oil filter adapter. See Special Tools .
11. Ensure the NEW oil filter is filled with clean fresh engine oil.
Fig 9: View Of Oil Filter
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice .
12. Install the NEW oil filter.

    Tighten:  Tighten the oil filter to 32 N.m (24 lb ft).
