Air Conditioning (A/C) Compressor Installation

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

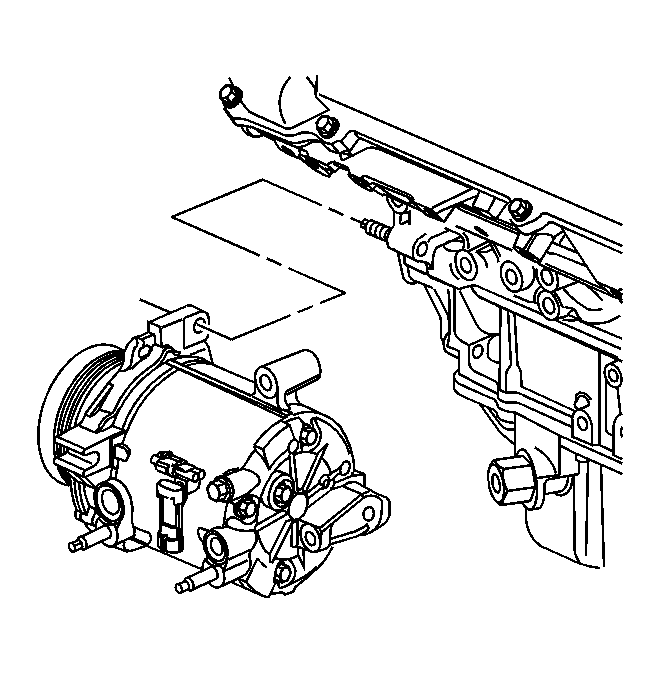

Fig 1: Identifying Air Conditioning Compressor Stud

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the air conditioning compressor stud.
Tighten: Tighten the air conditioning compressor stud to 25 N.m (18 lb ft).

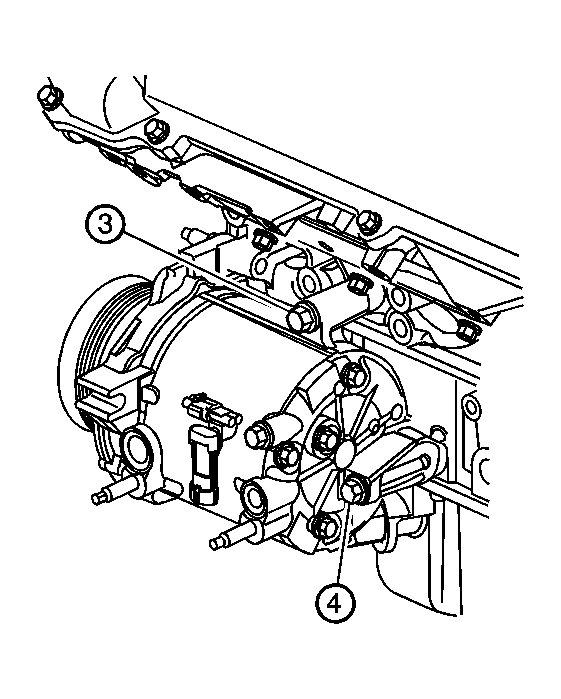

Fig 2: View of Air Condition Compressor

Courtesy of GENERAL MOTORS CORP.

Slide the air conditioning compressor over the air conditioning compressor stud and hold in position.

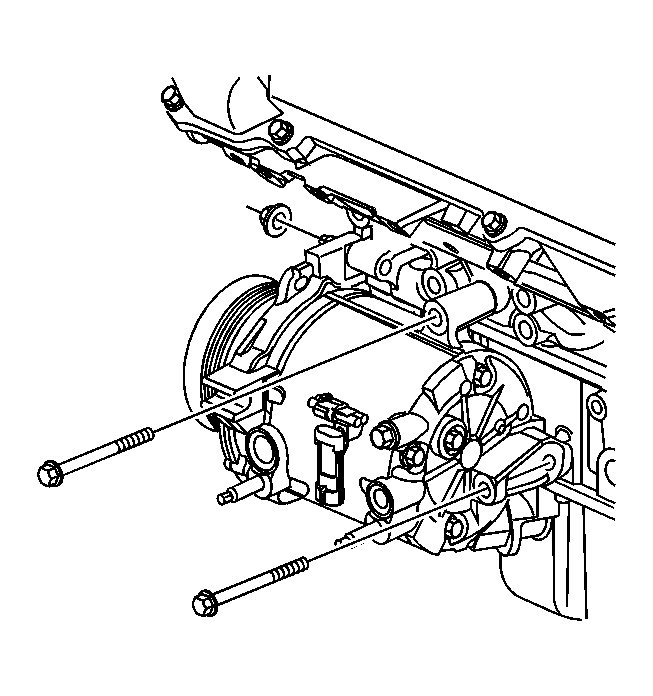

Fig 3: View of Air Conditioning Compressor Bolt

Courtesy of GENERAL MOTORS CORP.

Install the front air conditioning compressor bolt finger tight.

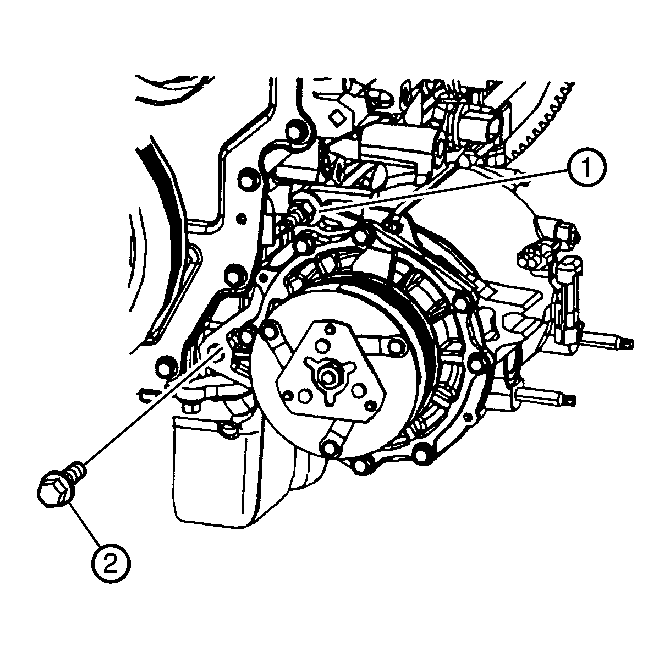

Fig 4: View of Air Conditioning Compressor Front Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front air conditioning compressor nut finger tight.
Install the side air conditioning compressor bolts finger tight.

Fig 5: Identifying Front Air Conditioning Compressor Fasteners

Courtesy of GENERAL MOTORS CORP.

Tighten the front air conditioning compressor fasteners in sequence.
Tighten: Tighten the front air conditioning compressor fasteners to 50 N.m (36 lb ft).

Fig 6: Identifying Side Air Conditioner Compressor Fasteners

Courtesy of GENERAL MOTORS CORP.

Tighten the side air conditioning compressor fasteners in sequence.
Tighten:
1. Tighten the side upper air conditioning compressor bolt to 50 N.m (36 lb ft).
2. Tighten the side lower/rear air conditioning compressor bolt to 25 N.m (18 lb ft).
