Starter Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

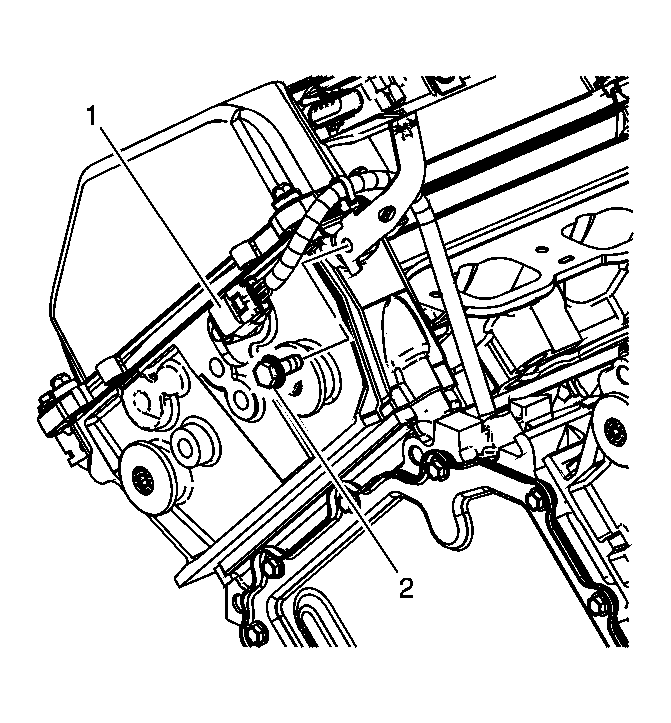

Fig 1: Identifying Crankshaft Position Sensor & Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Disconnect the crankshaft position sensor wiring harness (1) from the camshaft position (CMP) sensor.
Remove the jumping ground bracket bolt (2) from the right cylinder head.

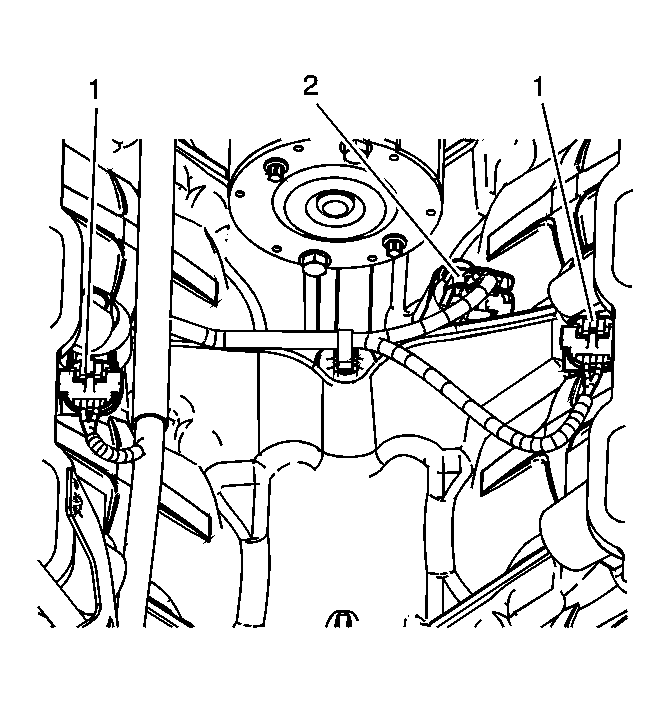

Fig 2: View Of CKP & KS Sensor Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Disconnect the crankshaft position sensor wiring harness (1) from the knock (KS) sensors.
Disconnect the crankshaft position sensor wiring harness (2) from the crankshaft position (CKP) sensor.

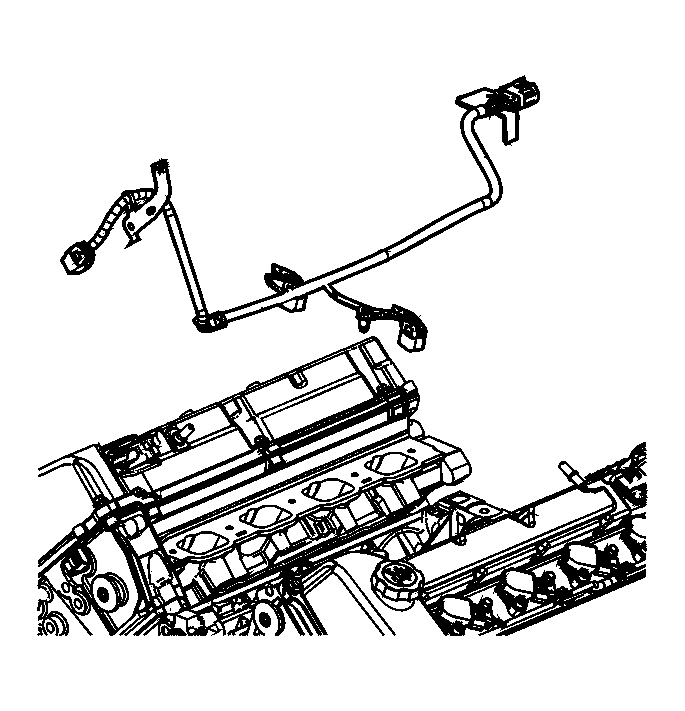

Fig 3: Identifying Crankshaft Position Sensor Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Remove the crankshaft position sensor wiring harness from the engine valley.

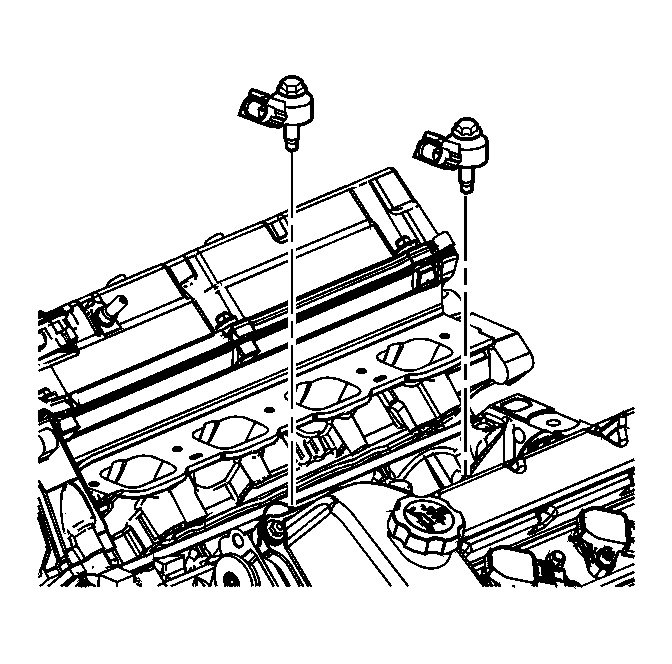

Fig 4: Locating KS Sensors

Courtesy of GENERAL MOTORS CORP.

Remove the KS sensors.

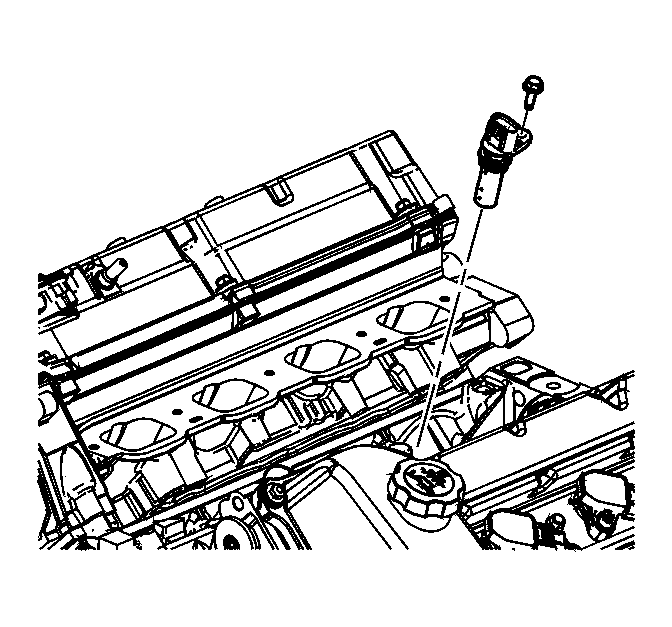

Fig 5: Locating CKP Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the CKP sensor bolt.
Remove the CKP sensor.

Fig 6: View Of CKP Sensor O-Ring

Courtesy of GENERAL MOTORS CORP.

Remove and discard the CKP sensor O-ring.

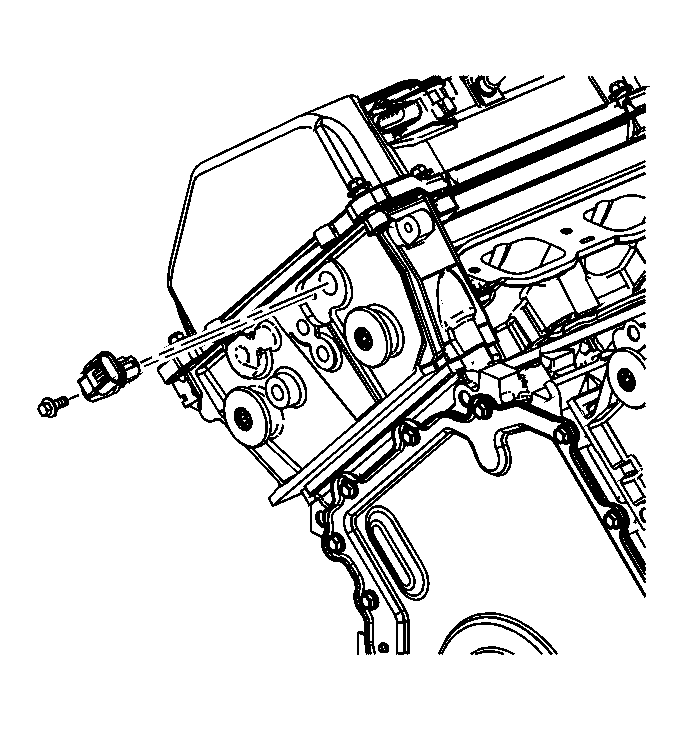

Fig 7: Identifying CMP Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft position CMP sensor bolt.
Remove the CMP sensor.

Fig 8: Identifying CMP Sensor O-Ring

Courtesy of GENERAL MOTORS CORP.

Remove and discard the CMP sensor O-ring.

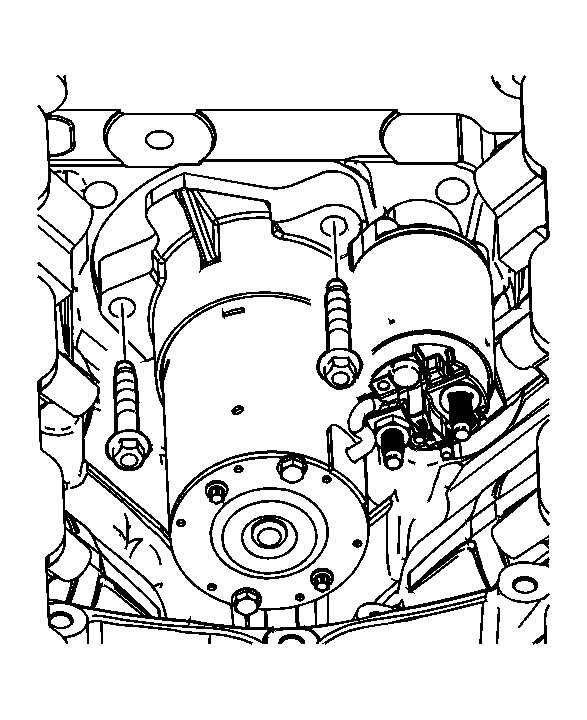

Fig 9: Identifying Starter Motor Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the 2 starter motor bolts.

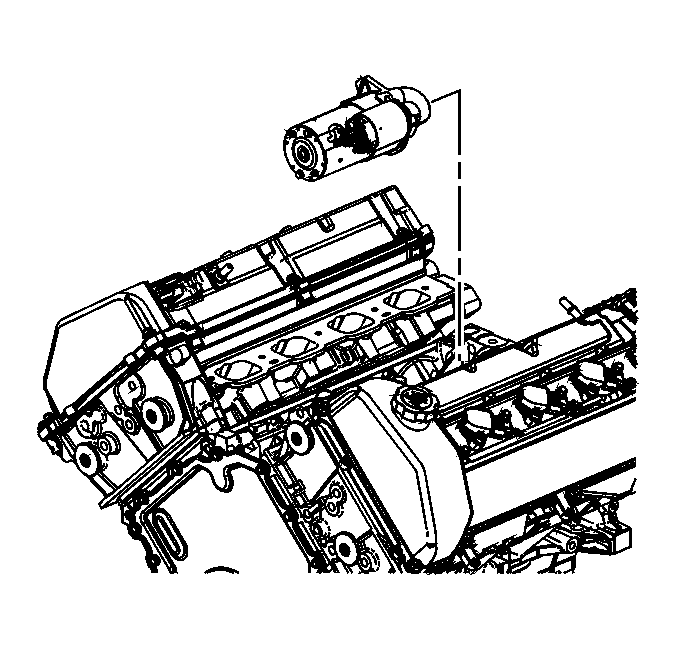

Fig 10: Locating Starter Motor

Courtesy of GENERAL MOTORS CORP.

Using two hands, remove the starter motor and the wiring harness by sliding the motor toward the front of the engine. The wiring harness can remain attached unless replacing the starter.
