Oil Pan Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

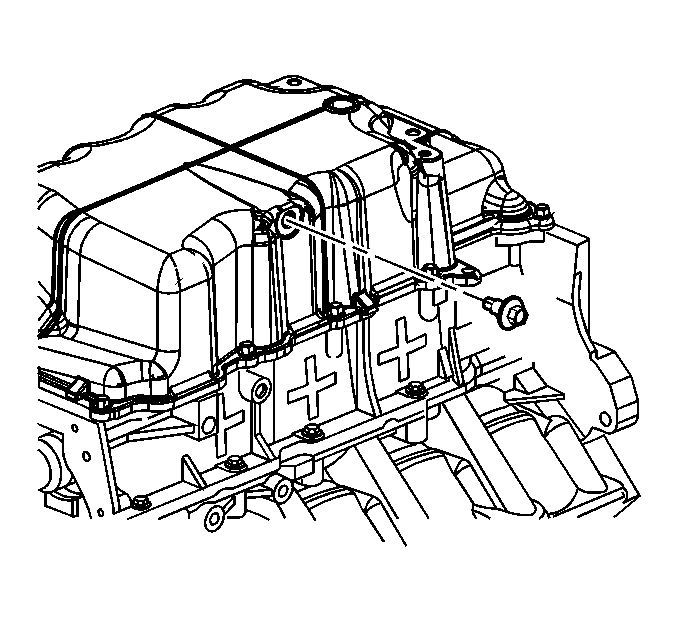

    Fig 1: View of Oil Pan Drain Plug
    GM1527739Courtesy of GENERAL MOTORS CORP.
  1. Rotate the engine so that the oil pan is facing up.
  2. Remove the oil pan drain plug.
    3. Fig 2: Identifying Oil Pan Bolts
    GM1373472Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan bolts.

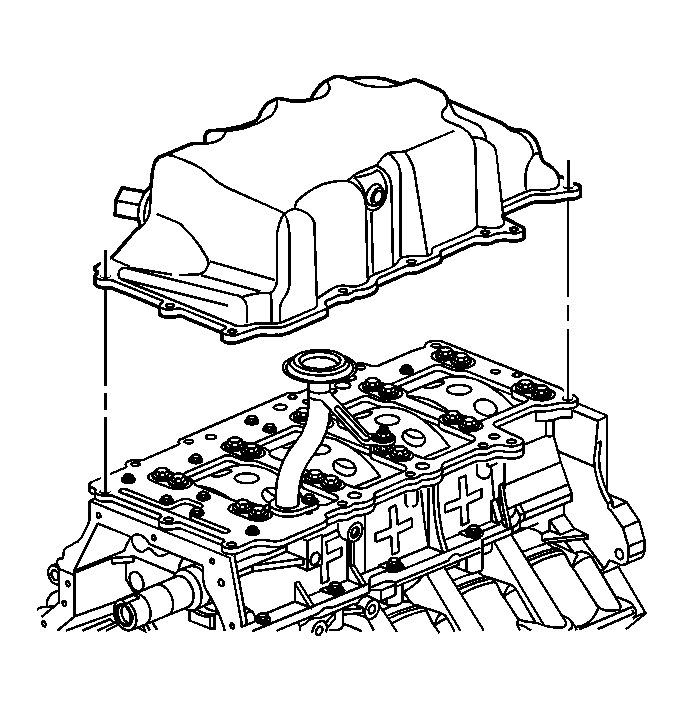

    4. Fig 3: Removing Oil Pan
    GM1373475Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan from the lower crankcase oil distribution manifold plate.
    5. Fig 4: View of Oil Pan Gasket
    GM1373484Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the oil pan gasket.
    6. Fig 5: Identifying Oil Level Sensor
    GM204585Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil level sensor (1).
