Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

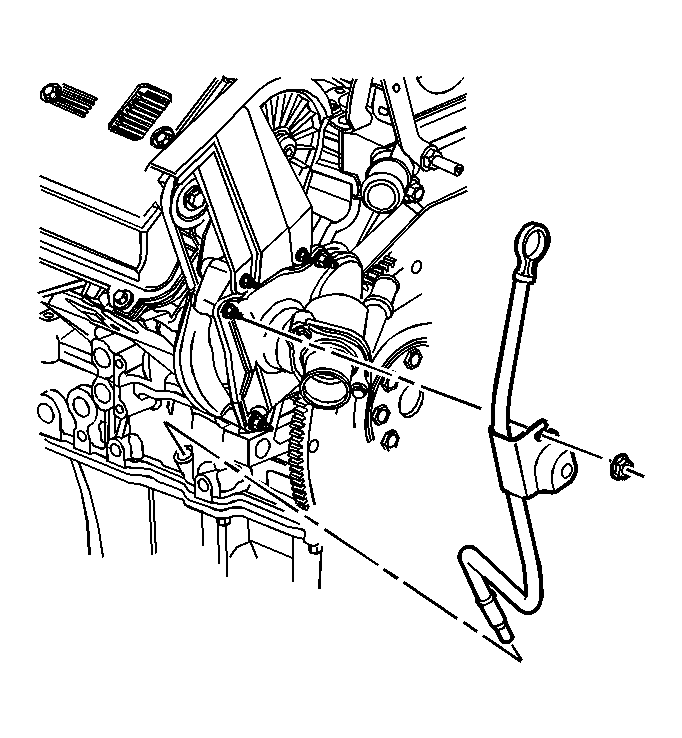

    Fig 1: View of Oil Lever Indicator Tube Nut
    GM522423Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator tube nut.
  2. Remove the oil level indicator tube.
    3. Fig 2: View Of Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the O-ring from the oil level indicator tube.
