Intake Manifold Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

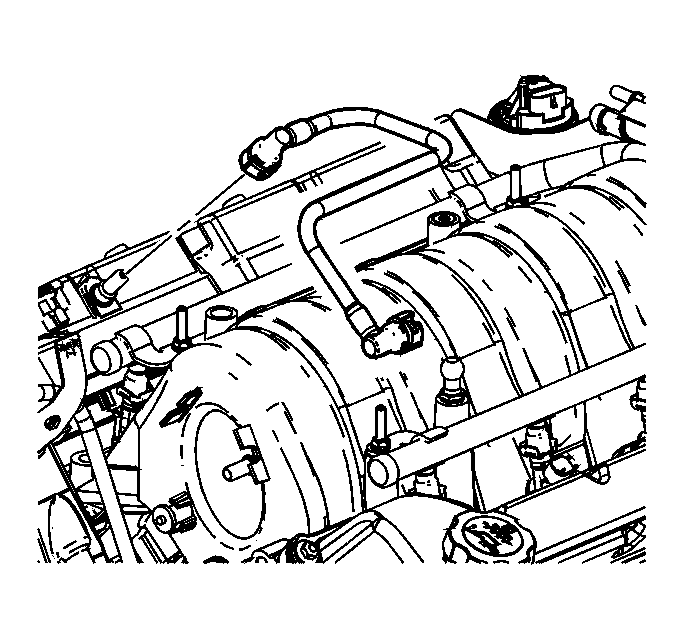

Fig 1: Identifying Brake Booster Hose

Courtesy of GENERAL MOTORS CORP.

Remove the brake booster hose from the vacuum fitting in the water crossover.

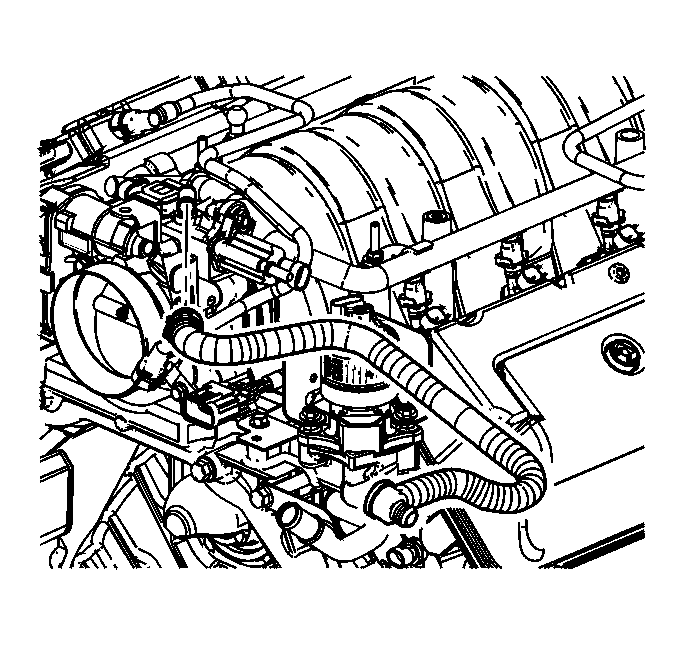

Fig 2: Identifying PCV Fresh Air Feed Tube

Courtesy of GENERAL MOTORS CORP.

Remove the PCV fresh air feed tube from the camshaft cover and the throttle body.

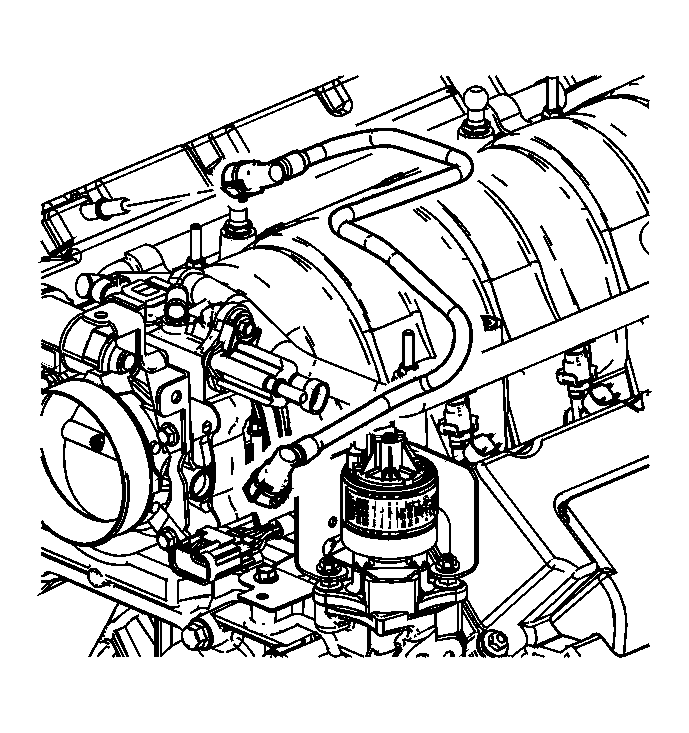

Fig 3: Identifying PCV Dirty Air Tube

Courtesy of GENERAL MOTORS CORP.

Remove the PCV dirty air tube from the PCV orifice in the right camshaft cover and from the intake manifold.

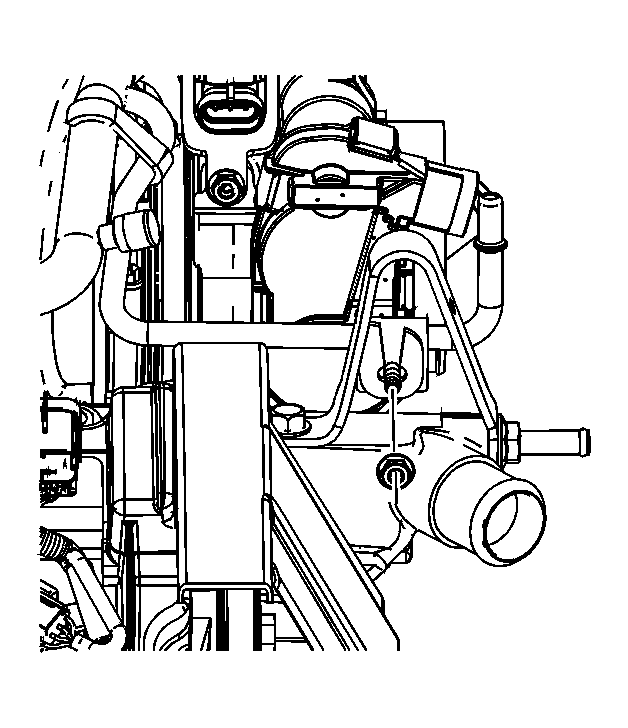

Fig 4: Identifying Fuel Rail Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the fuel rail bracket nut from the fuel rail stud mounted to the engine lift bracket on the water crossover.

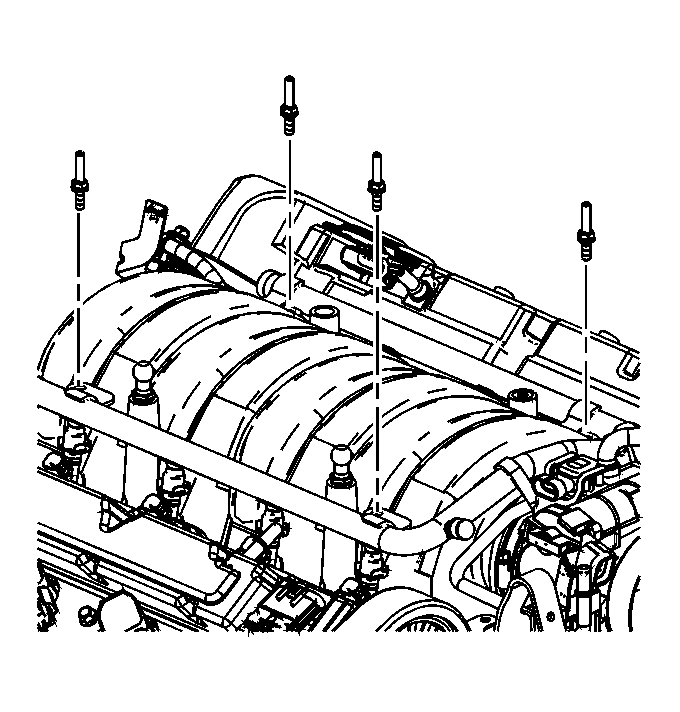

Fig 5: Identifying Fuel Rail Studs

Courtesy of GENERAL MOTORS CORP.

Remove the fuel rail studs.

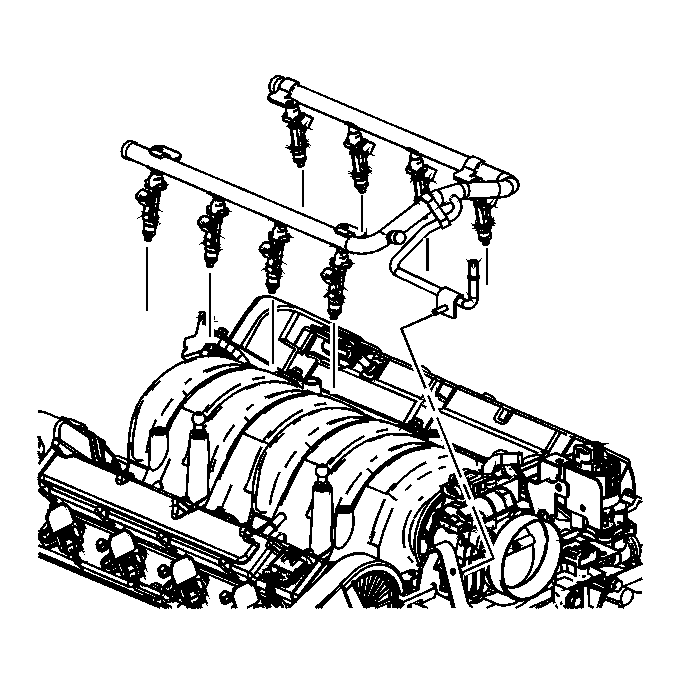

Fig 6: Identifying Fuel Injectors & Fuel Rail

Courtesy of GENERAL MOTORS CORP.

Lift and remove the fuel rail with injectors.

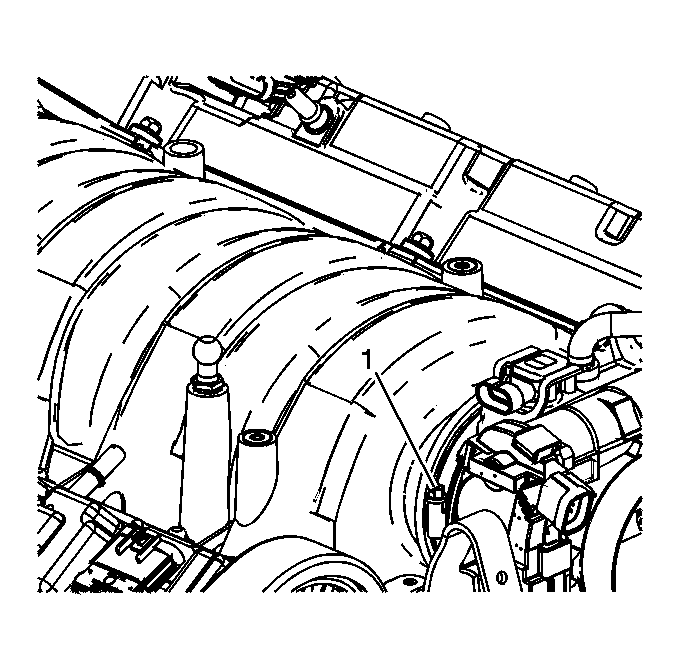

Fig 7: Locating Plenum Duct Clamp

Courtesy of GENERAL MOTORS CORP.

Loosen the plenum duct clamp (1) in order to remove the intake manifold.

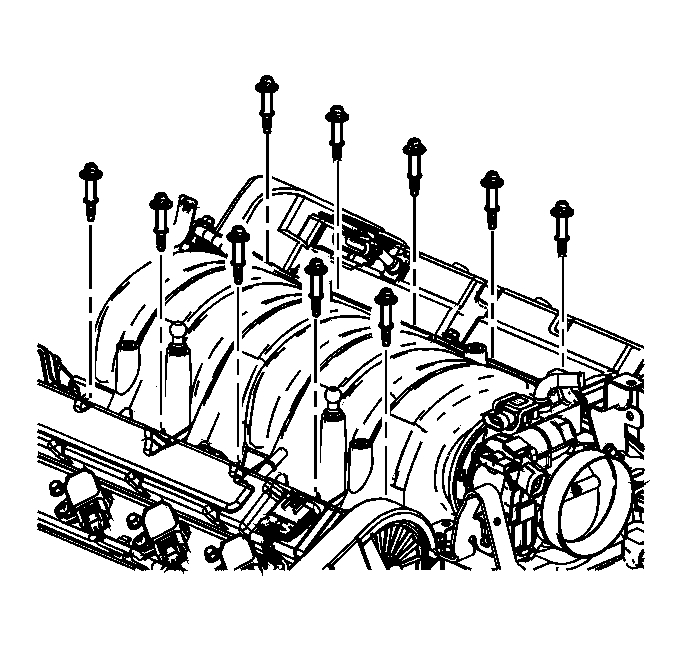

Fig 8: Identifying Intake Manifold Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the intake manifold bolts.

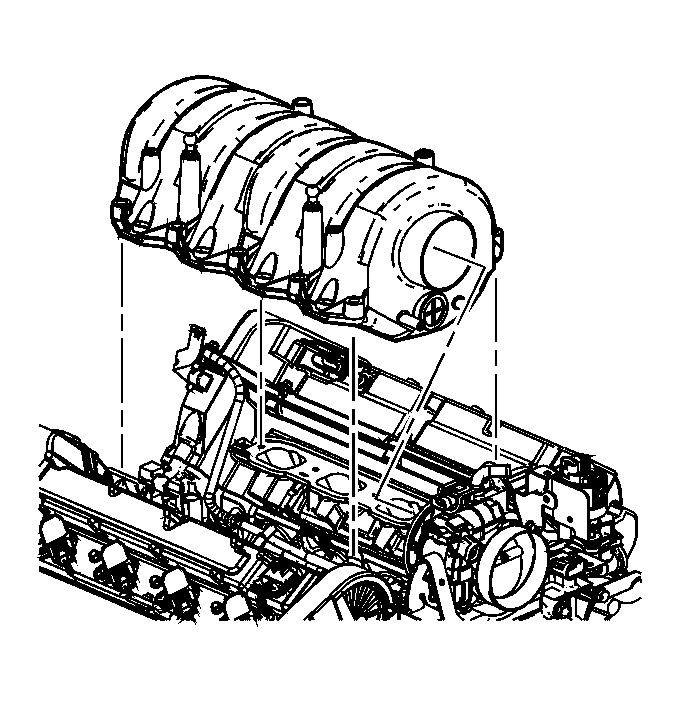

Fig 9: View Of Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Remove the intake manifold.
