Ignition Coil Module Removal - Left Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

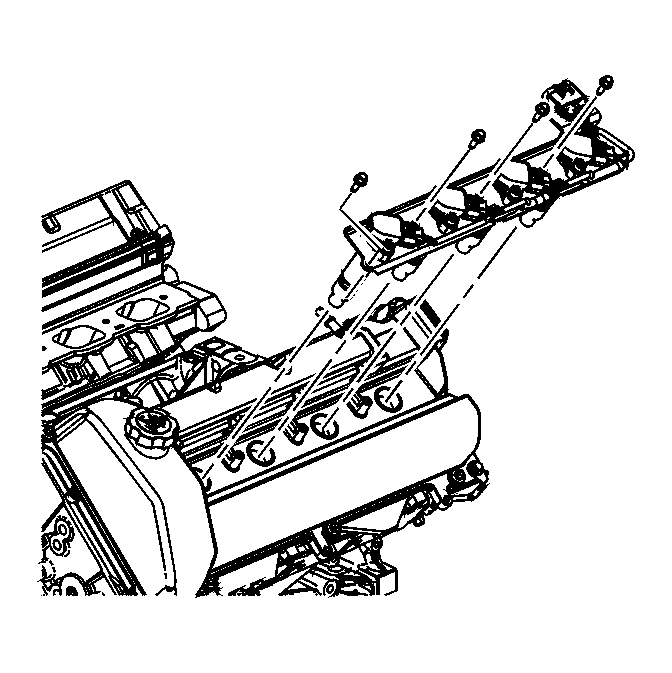

    Fig 1: Identifying Ignition Coil Assembly
    GM1564135Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil assembly bolts.
  2. Remove the ignition coil assembly.

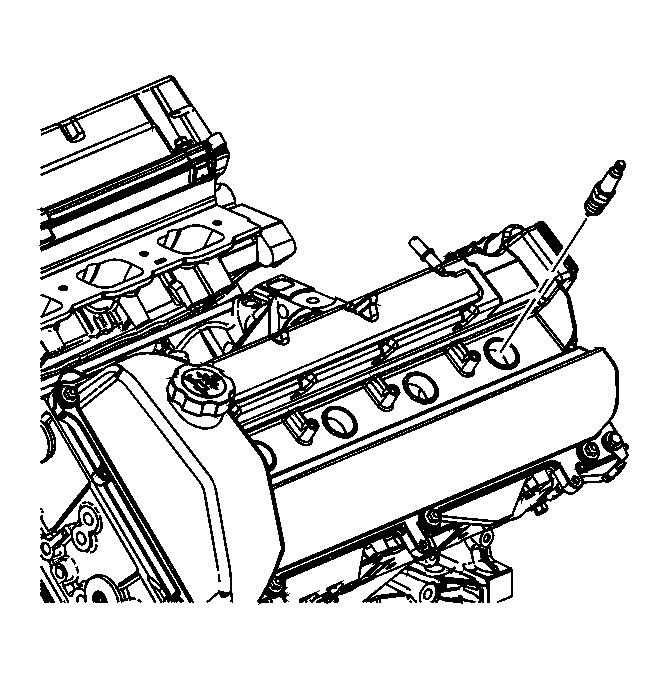

    3. Fig 2: Identifying Spark Plug
    GM1564136Courtesy of GENERAL MOTORS CORP.
  3. Remove the left spark plugs.
