Engine Block Disassemble - Upper

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

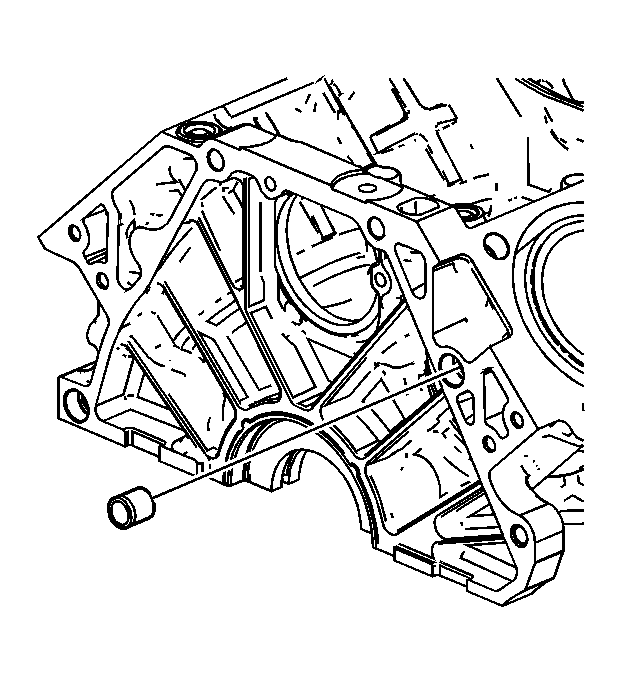

Fig 1: Identifying Engine Front Cover Dowel Pins

Courtesy of GENERAL MOTORS CORP.

Remove the engine front cover dowel pins.

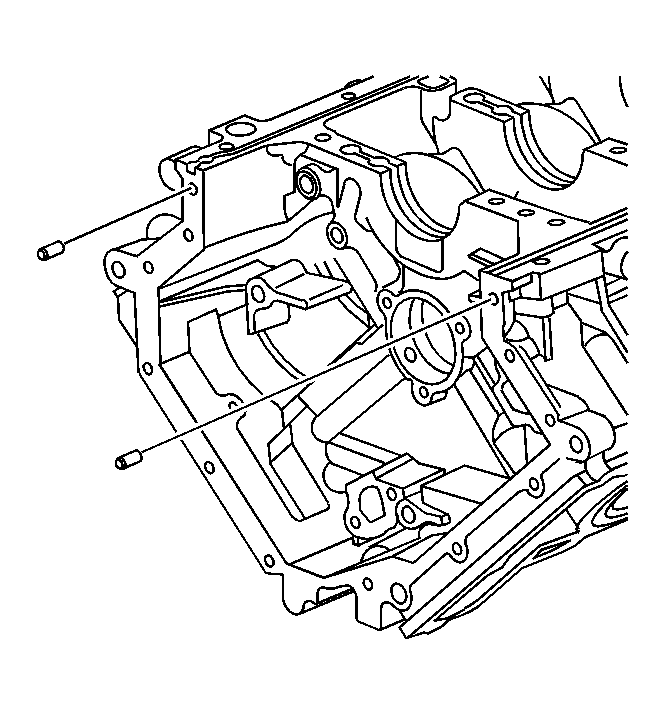

Fig 2: Identifying Lower Crankcase Locating Dowel Pins

Courtesy of GENERAL MOTORS CORP.

Remove the lower crankcase locating dowel pins.

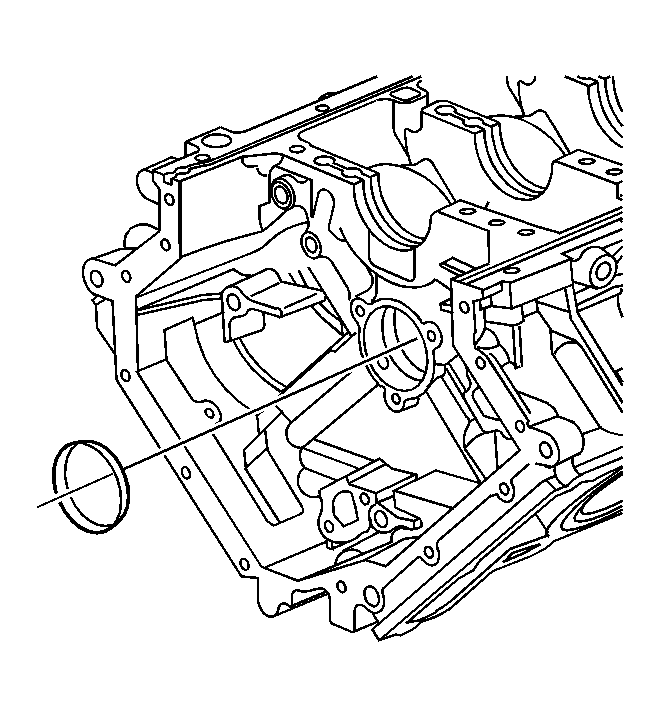

Fig 3: View of Camshaft Intermediate Shaft Plug

Courtesy of GENERAL MOTORS CORP.

Remove the camshaft intermediate shaft plug.

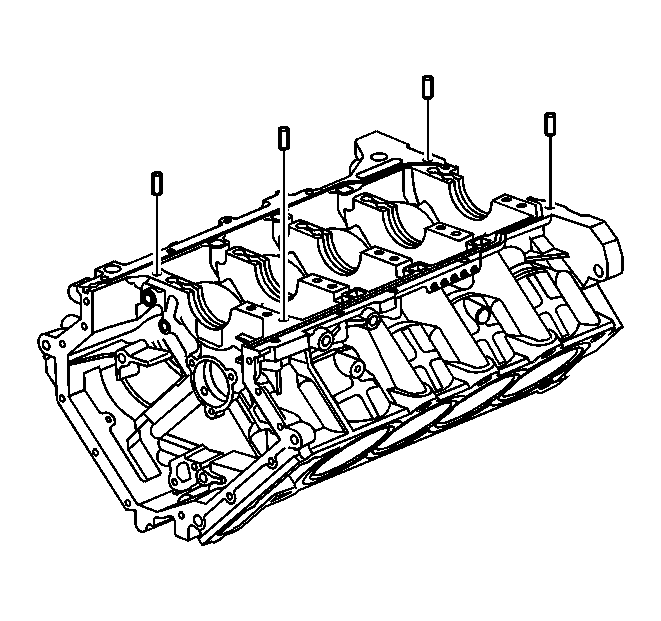

Fig 4: View of Transaxle Locating Dowels

Courtesy of GENERAL MOTORS CORP.

Remove the transaxle locating dowels.
