C340 Console Harness to the Body Harness (AQ9)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
C340 Console Harness to the Body Harness (AQ9)

GM802513Courtesy of GENERAL MOTORS CORP.

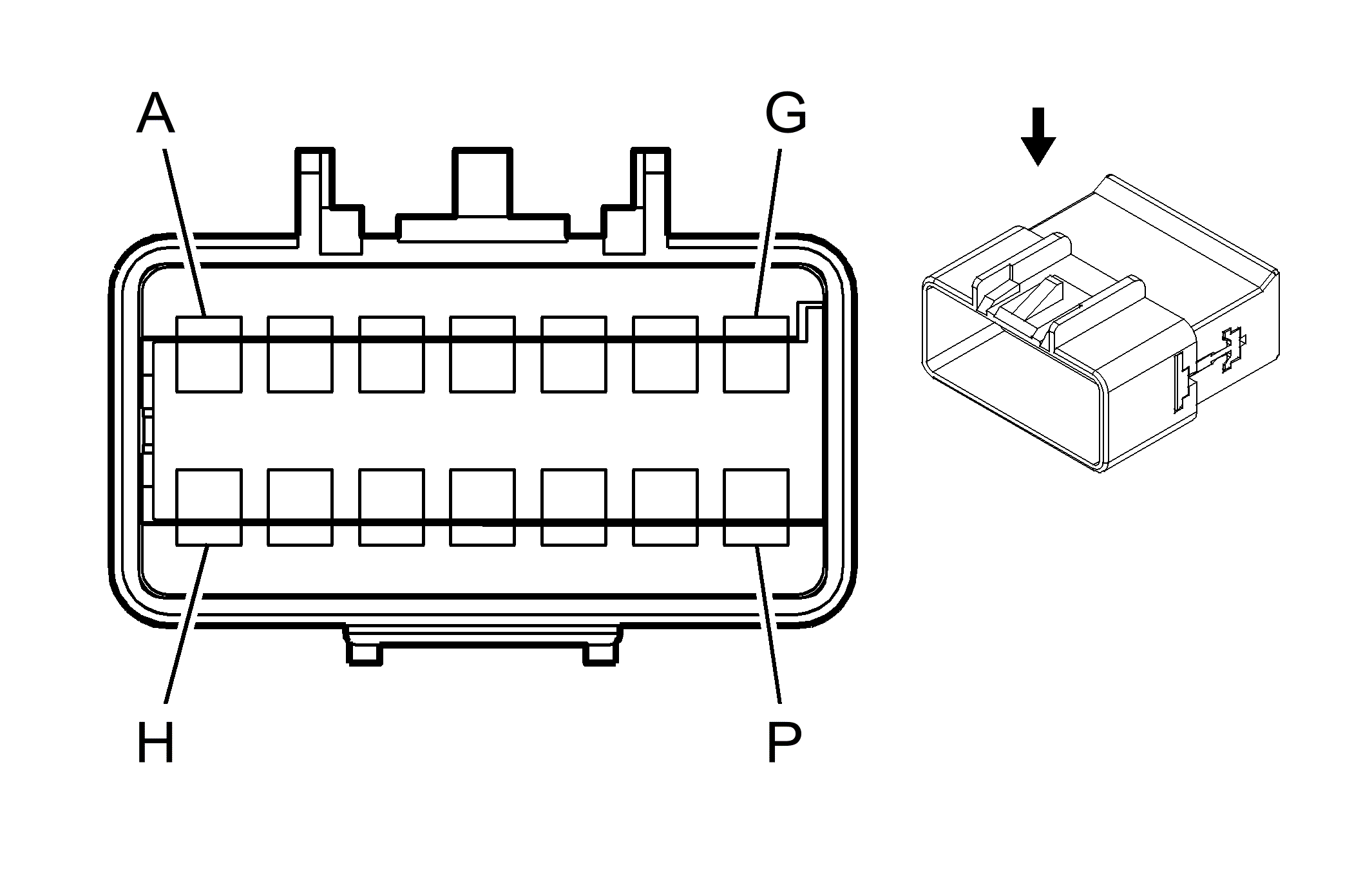

GM1707521Courtesy of GENERAL MOTORS CORP.
C340 Console Harness to the Body Harness (AQ9) Connector & Terminal Parts Information

Connector Part Information
  • OEM: 15332169
  • Service: 88986447
  • Description: 14-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332174
  • Service: 88986449
  • Description: 14-Way M GT 150 Series (BK)
Terminal Part Information
  • Pins: C, F
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Pins: A, B, D, E, G, H, J, K, L, M, N, P
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Pins: C, F
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: 2/4
  • Pins: A, B, D, E, G, H, J, K, L, M, N, P
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
C340 Console Harness to the Body Harness (AQ9) Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 1491 Backlight Lamps Control (AQ9/CJ4) A YE 1491 Backlight Lamps Control (AQ9/CJ4)
B BN/WH 1571 Traction Control Switch Signal (AQ9) B BN/WH 1571 Traction Control Switch Signal (AQ9)
C BK 450 Ground (AQ9) C BK 450 Ground (AQ9)
D OG 761 Blower Motor Speed Signal (AQ9/CJ4) D OG 761 Blower Motor Speed Signal (AQ9/CJ4)
E L-GN 1652 Reverse Lockout Solenoid Control (AQ9) E L-GN 1652 Reverse Lockout Solenoid Control (AQ9)
F RD/WH 1740 Battery Positive Voltage (AQ9) F RD/WH 1740 Battery Positive Voltage (AQ9)
G GY 8 Instrument Panel Lamp Supply Voltage (AQ9) G GY 8 Instrument Panel Lamp Supply Voltage (AQ9)
H PU/WH 5905 Ignition Lock Cylinder Solenoid Control (AQ9) H PU/WH 5905 Ignition Lock Cylinder Solenoid Control (AQ9)
J D-GN 5060 Low Speed GMLAN Serial Data (AQ9) J D-GN 5060 Low Speed GMLAN Serial Data (AQ9)
K BK 450 Ground (AQ9) K BK 450 Ground (AQ9)
L YE/BN 143 Accessory Voltage (AQ9) L YE/BN 143 Accessory Voltage (AQ9)
M RD/D-GN 1040 Battery Positive Voltage (AQ9/CJ4) M RD/D-GN 1040 Battery Positive Voltage (AQ9/CJ4)
N L-GN 2211 Rear Blower Motor Speed Control (AQ9/CJ4) N L-GN 2211 Rear Blower Motor Speed Control (AQ9/CJ4)
P PU 6027 Brake Transmission Shift Interlock Solenoid Control (AQ9) P PU 6027 Brake Transmission Shift Interlock Solenoid Control (AQ9)
