C323 Left Middle Window Harness to the Body Harness (V4U)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Inline Harness Connector End Views

GM1707517Courtesy of GENERAL MOTORS CORP.

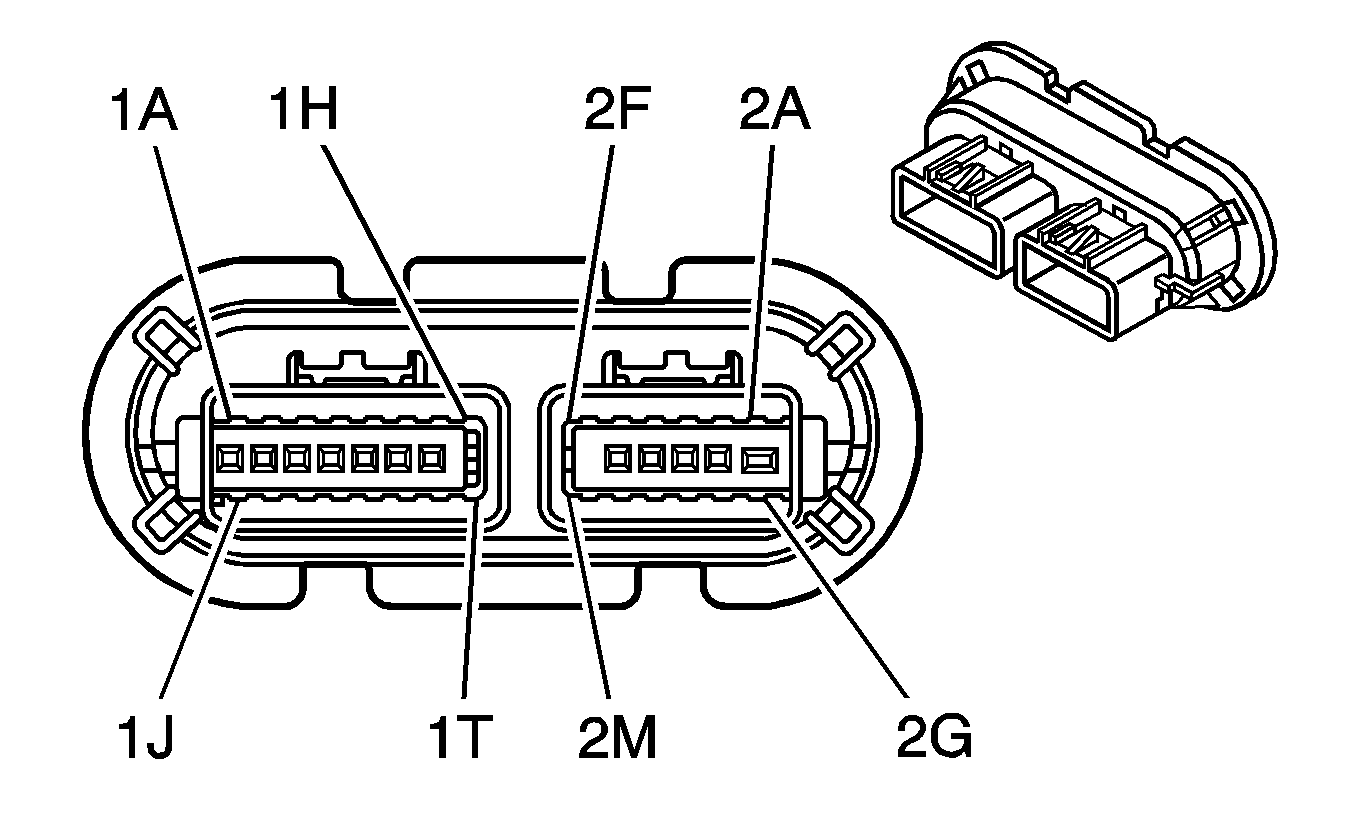

G00455621Courtesy of GENERAL MOTORS CORP.
Inline Harness Connector End Views Connector & Terminal Parts Information

Connector Part Information
  • OEM: 15332177
  • Service: No Service Number Found
  • Description: 16-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 13511212
  • Service: No Service Number Found
  • Description: 28-Way GT Mixed (BK)
Terminal Part Information
  • Pins: A1, M1, N1
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Pins: C1, B1, D1, E1, G1, H1, J1, K1, L1, P1, R1, S1
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Connector Part Information
  • OEM: 15336205
  • Service: 88986267
  • Description: 12-Way F Mixed Series (BK)

Terminal Part Information
  • Pins: A2, B2, C2, D2, E2, F2, G2, H2, J2, K2, L2, M2
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Pins: C1, A1, A2, B1, B2, C2, D1, D2, E1, G1, H1, J1, K1, L1, M1, N1, P1, R1, S1, E2, F2, G2, H2, J2, K2, L2, M2
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
C323 Left Middle Window Harness to the Body Harness (V4U) Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD/BN 140 Battery Positive Voltage (V4U) A RD/BN 140 Battery Positive Voltage (V4U)
B TN 294 Door Lock Actuator Unlock Control (V4U) B TN 294 Door Lock Actuator Unlock Control (V4U)
C GY 295 Door Lock Actuator Lock Control (V4U) C GY 295 Door Lock Actuator Lock Control (V4U)
D D-BU/WH 1179 Left Rear Door Open Switch Signal (V4U) D D-BU/WH 1179 Left Rear Door Open Switch Signal (V4U)
E L-BU/BK 747 Left Rear Door Ajar Switch Signal (V4U) E L-BU/BK 747 Left Rear Door Ajar Switch Signal (V4U)
F BK 750 Ground (V4U) F BK 750 Ground (V4U)
G - - Not Used G - - Not Used
H WH 1430 Exterior Courtesy Lamps Supply Voltage (V4U) H WH 1430 Exterior Courtesy Lamps Supply Voltage (V4U)
J WH/BK 9256 Door Release Switch Signal (V4U) J WH/BK 9256 Door Release Switch Signal (V4U)
K WH/BK 9256 Door Release Switch Signal (V4U) K WH/BK 9256 Door Release Switch Signal (V4U)
A - - Not Used A1 - - Not Used
B - - Not Used B1 D-GN 1184 Power Window Switch Right Front Up Signal (V4U)
C GY/BK 690 Courtesy Lamp Relay Control (V4U) C1 GY/BK 690 Courtesy Lamp Relay Control (V4U)
D - - Not Used D1 YE 1187 Power Window Switch Left Rear Down Signal (V4U)
E - - Not Used E1 PU 2765 Power Window Switch Right Front Express Signal (V4U)
F - - Not Used F1 - - Not Used
G GY 8 Instrument Panel Lamp Supply Voltage (V4U) G1 GY 8 Instrument Panel Lamp Supply Voltage (V4U)
H - - Not Used H1 YE 643 Accessory Voltage (V4U)
J-K - - Not Used J1-K1 - - Not Used
L PU 709 Left Park Lamp Supply Voltage (V4U) L1 PU 709 Left Park Lamp Supply Voltage (V4U)
