C321 Headliner Harness to the Body Harness

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
C321 Headliner Harness to the Body Harness

GM1716519Courtesy of GENERAL MOTORS CORP.

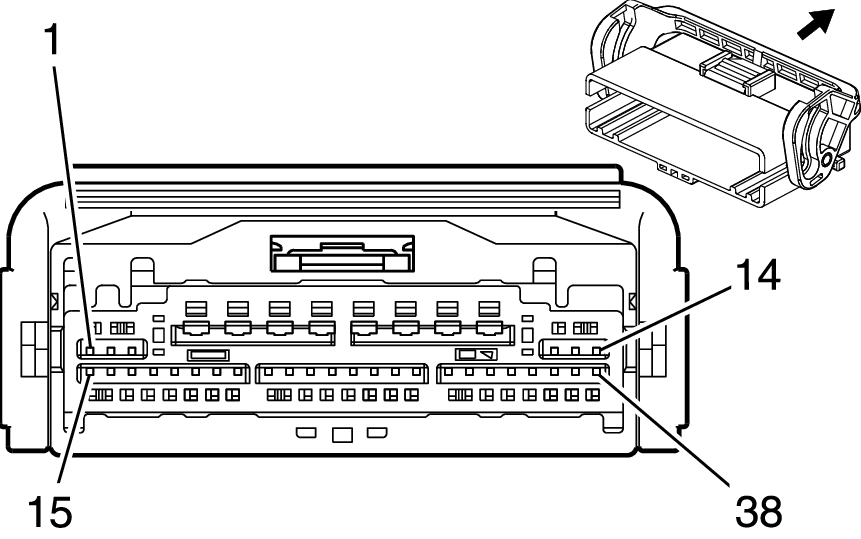

GM1716522Courtesy of GENERAL MOTORS CORP.
C321 Headliner Harness to the Body Harness Connector & Terminal Parts Information

Connector Part Information
  • OEM: 7283-2784-30
  • Service: No Service Number Found
  • Description: 38-Way F
 Connector Part Information
  • OEM: 7282-2784-30
  • Service: No Service Number Found
  • Description: 38-Way M
Terminal Part Information
  • Pins: 6, 7, 11, 4
  • Terminal/Tray: 7116-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: 5
  • Terminal/Tray: 7116-4111-02/9
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: 1, 2, 3, 12, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
 Terminal Part Information
  • Pins: 6, 5, 7, 11, 4
  • Terminal/Tray: 7114-4110-02/9
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
  • Pins: 1, 2, 3, 12, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
C321 Headliner Harness to the Body Harness Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 TN/GY 1355 Valet Mode Switch Signal 1 TN/GY 1355 Valet Mode Switch Signal
2 GY/BK 690 Courtesy Lamp Relay Control (V4U/B9Q) 2 GY/BK 690 Courtesy Lamp Relay Control (V4U/B9Q)
3 D-GN/WH 1488 Noise Compensation Microphone Supply Voltage (UQA) 3 D-GN/WH 1488 Noise Compensation Microphone Supply Voltage (UQA)
4 BK 514 Drain Wire (UQA) 4 BK 514 Drain Wire (UQA)
5 YE 643 Accessory Voltage (CE1) 5 YE 643 Accessory Voltage (CE1)
6 RD/D-GN 1040 Battery Positive Voltage (TQ5) 6 RD/D-GN 1040 Battery Positive Voltage (TQ5)
7 GY 8 Instrument Panel Lamp Supply Voltage (CF5/DE9) 7 GY 8 Instrument Panel Lamp Supply Voltage (CF5/DE9)
8-10 - - Not Used 8-10 - - Not Used
11 BK 1489 Drain Wire (UE1) 11 BK 1489 Drain Wire (UE1)
BK 1489 Drain Wire (U3Q/U3R/U3U w/o UE1) BK 1489 Drain Wire (U3Q/U3R/U3U w/o UE1)
12 GY/WH 655 Cellular Microphone Low Reference (UE1) 12 GY/WH 655 Cellular Microphone Low Reference (UE1)
GY/WH 655 Cellular Microphone Low Reference (U3Q/U3R/U3U w/o UE1) GY/WH 655 Cellular Microphone Low Reference (U3Q/U3R/U3U w/o UE1)
13-14 - - Not Used 13-14 - - Not Used
15 BN/WH 2517 Keypad Red LED Signal (UE1) 15 BN/WH 2517 Keypad Red LED Signal (UE1)
16 YE/BK 2516 Keypad Green LED Signal (UE1) 16 YE/BK 2516 Keypad Green LED Signal (UE1)
17 D-GN/WH 2514 Keypad Signal (UE1) 17 D-GN/WH 2514 Keypad Signal (UE1)
18 L-GN/BK 2515 Keypad Supply Voltage (UE1) 18 L-GN/BK 2515 Keypad Supply Voltage (UE1)
19 GY/BK 7035 Rear Parking Aid Voltage Supply (UFR) 19 GY/BK 7035 Rear Parking Aid Voltage Supply (UFR)
20 YE/D-BU 7036 Rear Parking Aid Yellow LED 1 (UFR) 20 YE/D-BU 7036 Rear Parking Aid Yellow LED 1 (UFR)
21 YE/WH 7037 Rear Parking Aid Yellow LED 2 (UFR) 21 YE/WH 7037 Rear Parking Aid Yellow LED 2 (UFR)
22 TN/WH 7038 Rear Parking Aid Red LED (UFR) 22 TN/WH 7038 Rear Parking Aid Red LED (UFR)
23 PU 5234 Passenger Seat Belt Indicator 23 PU 5234 Passenger Seat Belt Indicator
24 D-BU 2307 Passenger Air Bag On Indicator Control 24 D-BU 2307 Passenger Air Bag On Indicator Control
25 PK/TN 2308 Passenger Air Bag Off Indicator Control 25 PK/TN 2308 Passenger Air Bag Off Indicator Control
26 GY/BK 690 Courtesy Lamp Relay Control (V4U/B9Q) 26 GY/BK 690 Courtesy Lamp Relay Control (V4U/B9Q)
27 OG 1732 Electronic Control Unit 12-Volt Reference 27 OG 1732 Electronic Control Unit 12-Volt Reference
28 BK 850 Ground 28 BK 850 Ground
29 BK 850 Ground 29 BK 850 Ground
30 GY/BN 1690 Automatic Day/Night Mirror Signal 30 GY/BN 1690 Automatic Day/Night Mirror Signal
31 PK/BN 1691 Automatic Day/Night Mirror Low Reference 31 PK/BN 1691 Automatic Day/Night Mirror Low Reference
32 TN/YE 481 Outside Moisture Sensor Signal 1 (CE1) 32 TN/YE 481 Outside Moisture Sensor Signal 1 (CE1)
33 L-GN 482 Outside Moisture Sensor Signal 2 (CE1) 33 L-GN 482 Outside Moisture Sensor Signal 2 (CE1)
34 L-GN 24 Backup Lamp Supply Voltage 34 L-GN 24 Backup Lamp Supply Voltage
35 D-GN 5060 Low Speed GMLAN Serial Data (TQ5) 35 D-GN 5060 Low Speed GMLAN Serial Data (TQ5)
36 PK/RD 239 Ignition 1 Voltage 36 PK/RD 239 Ignition 1 Voltage
37 OG/BK 2332 Sunroof Switch Open Vent Signal (DE9) 37 OG/BK 2332 Sunroof Switch Open Vent Signal (DE9)
38 - - Not Used 38 - - Not Used
