C206 Body Harness to the HVAC Harness

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

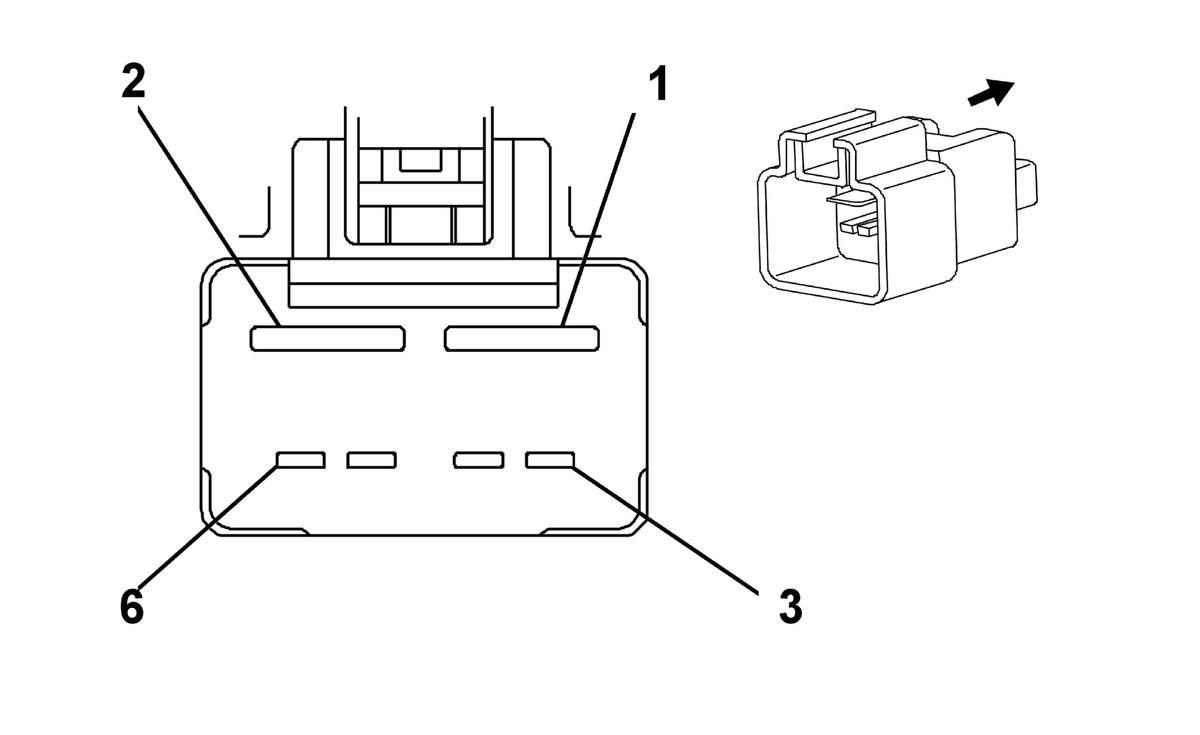

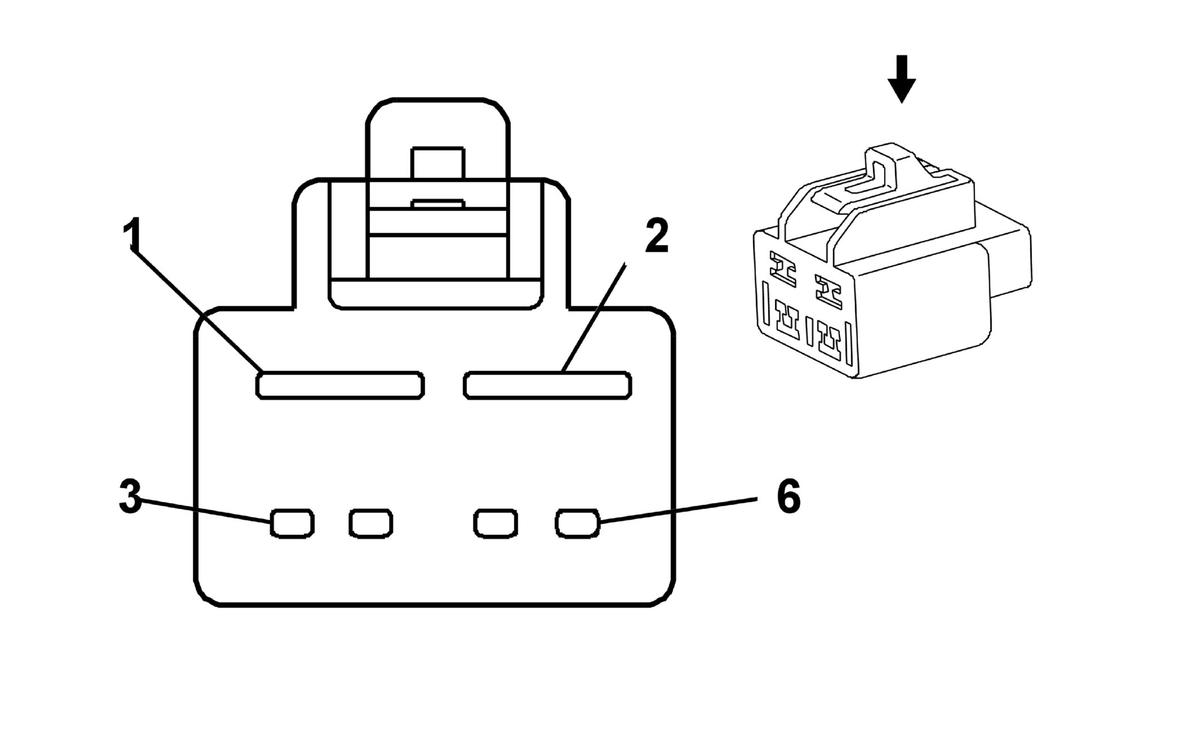

C206 Body Harness to the HVAC Harness Connector & Terminal Parts Information

Connector Part Information

OEM: 7283-1064
Service: 88953318
Description: 6-Way F 1.5 Series Weather Pack (WH)

Connector Part Information

OEM: 7282-1064
Service: 88953318
Description: 6-Way M 1.5 Series Weather Pack (WH)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 7116-6042/11
Core/Insulation Crimp: B/G
Release Tool/Test Probe: 12094430/J-35616-44 (YE)

Pins: 3, 5, 4
Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Terminal Part Information

Pins: 1, 2, 3, 5, 4
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C206 Body Harness to the HVAC Harness Terminal Identification

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground	1	BK	450	Ground
2	RD/BK	442	Battery Positive Voltage (CJ2)	2	RD/BK	442	Battery Positive Voltage (CJ2)
3	BN	341	Ignition 3 Voltage (CJ4)	3	BN	341	Ignition 3 Voltage (CJ4)
4	OG	761	Blower Motor Speed Signal (AQ9/CJ4)	4	OG	761	Blower Motor Speed Signal (AQ9/CJ4)
5	D-GN	2211	Rear Blower Motor Speed Control (AQ9/CJ4)	5	L-GN	2211	Rear Blower Motor Speed Control (AQ9/CJ4)
6	-	-	Not Used	6	-	-	Not Used
