C114 Forward Lamp Harness to Right Front Head Lamp Assembly Harness (w/o T72)

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

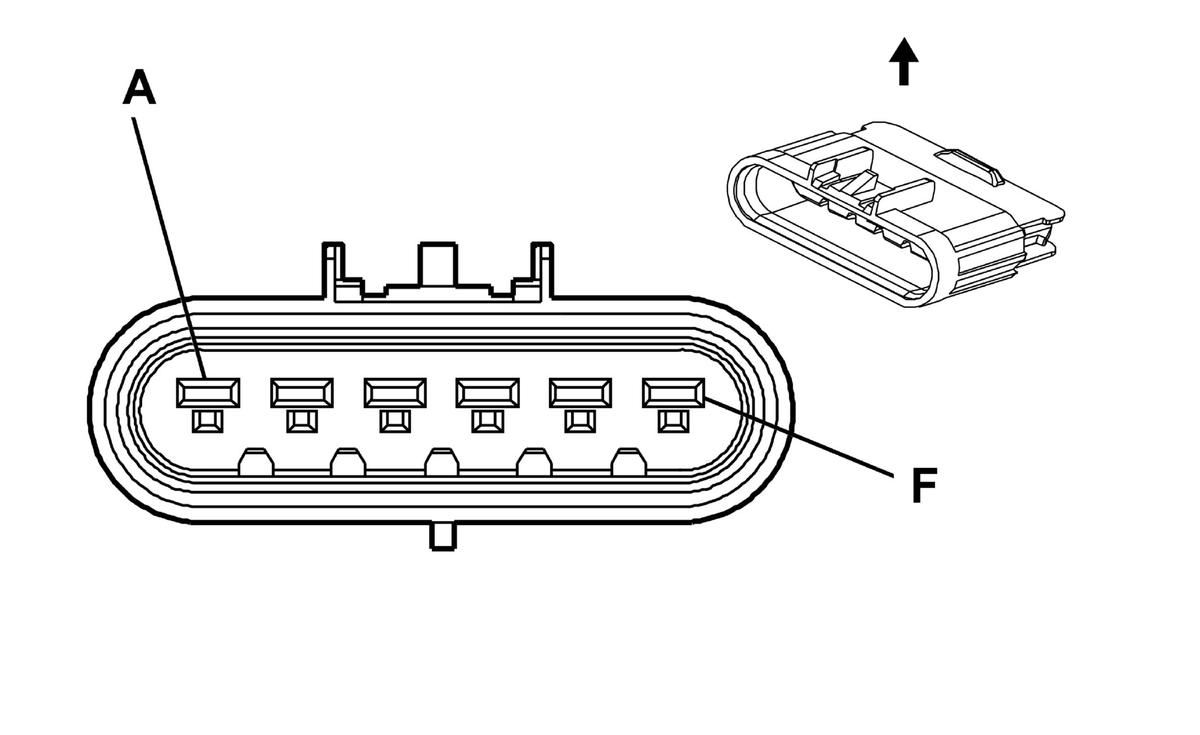

C114 Forward Lamp Harness to Right Front Head Lamp Assembly Harness (w/o T72) Connector & Terminal Parts Information

Connector Part Information OEM: 15326635 Service: See Catalog Description: 6-Way F GT 280 Series (BK)	Connector Part Information OEM: 15326640 Service: See Catalog Description: 6-Way M GT 280 Series Sealed (BK)
Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

C114 Forward Lamp Harness to Right Front Head Lamp Assembly Harness (T72) Terminal Identification

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK	250	Ground (Domestic/T72)	A	BK	-	Ground (Domestic/T72)
B	BN/WH	309	Right Park Lamp Supply Voltage (Domestic)	B	PU/BK	-	Right Park Lamp Supply Voltage (Domestic)
C	D-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage	C	D-BU/WH	-	Right Front Turn Signal Lamp Supply Voltage
D	L-GN/BK	311	Right Headlamp High Beam Supply Voltage	D	D-GN/WH	-	Right Headlamp High Beam Supply Voltage
E	TN/WH	312	Right Headlamp Low Beam Supply Voltage	E	YE	-	Right Headlamp Low Beam Supply Voltage
F	BK	250	Ground	F	BK	-	Ground
