Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: View Of Outboard Seal, Seal Groove & Eared Clamp
GM214024Courtesy of GENERAL MOTORS CORP.
IMPORTANT: For eared clamp, place a towel in the vise before inserting the halfshaft.
  1. For eared clamp installation, mount the halfshaft into a vise.
  2. Install the new swage ring or eared clamp (2) on the neck of the outboard seal (1). Do not swage or crimp.
  3. Slide the outboard seal (1) onto the halfshaft bar and position the neck of the outboard seal (1) in the seal groove on the halfshaft bar. The largest groove below the sight groove on the halfshaft bar is the (3).

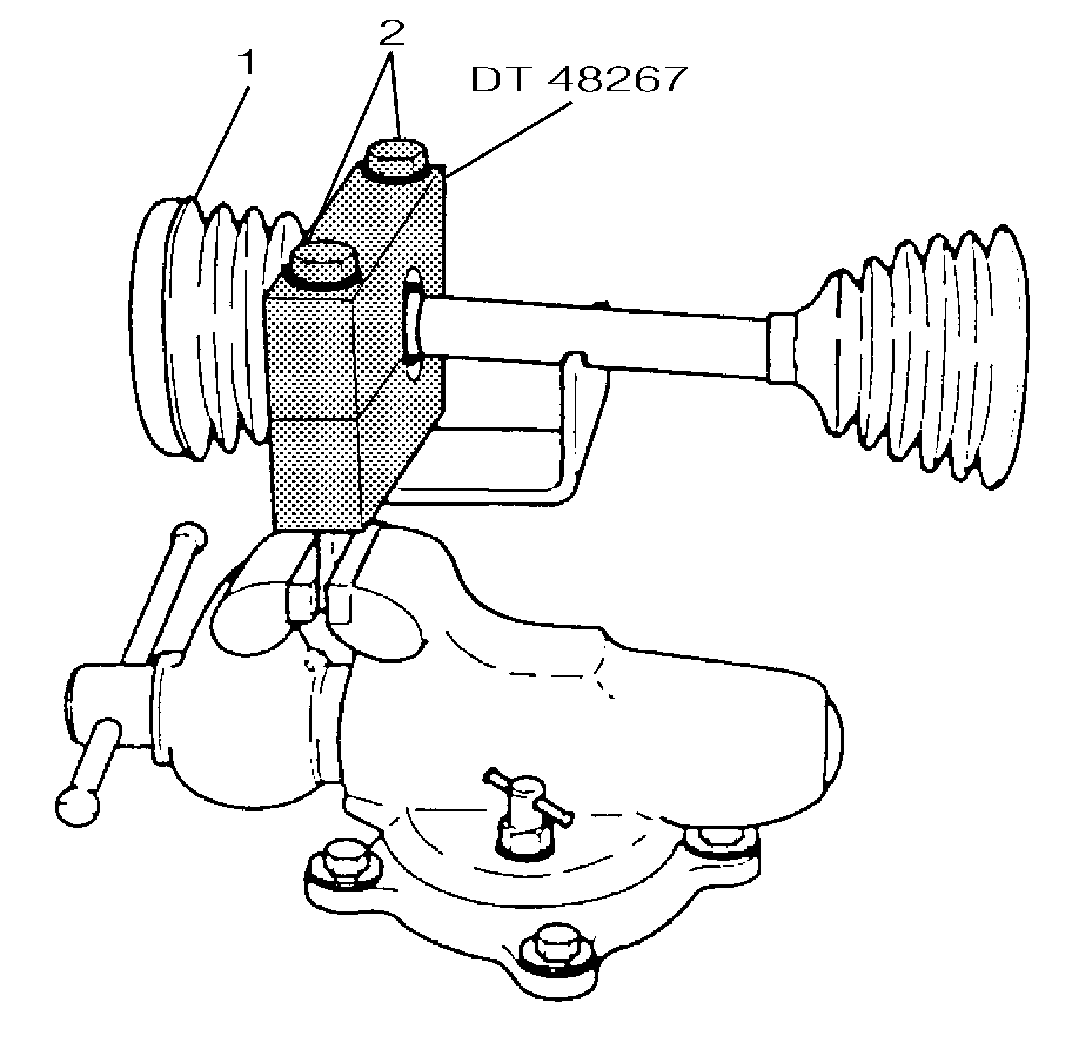

    Fig 2: Installing Swage Ring
    GM1831560Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: For eared clamp installation, proceed to step  7.
  4. For swage ring installation use DT 48267  in the following way: See Special Tools .
    1. Position the outboard end of the halfshaft assembly (1) in DT 48267  . See Special Tools .
    2. Align the swage ring.
    3. Place the top half of DT 48267  on the lower half of DT 48267  . See Special Tools .
      IMPORTANT: Align the following items during this procedure:
      • The outboard seal (1)
      • The halfshaft bar
      • The swage ring
    4. Insert the bolts (2) and tighten by hand until snug.

      Tighten:  Tighten each bolt 180 degrees at a time using a ratchet wrench. Alternate between each bolt until both sides are bottomed.

    5. Fig 3: Identifying Halfshaft Inboard Seal & Swage Ring
    GM221918Courtesy of GENERAL MOTORS CORP.
  5. Loosen the bolts and separate the dies.
  6. Check swaged ring (2) for any lip deformities. If present, place the ring (2) back into the DT 48267  making sure the ring covers the whole swaging area. See Special Tools . If necessary, re-swage the ring.
    7. Fig 4: View Of CV Joint Seal Retaining Clamp
    GM214026Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  7. Crimp the eared clamp (1) using the J 35910  , a breaker bar, and a torque wrench.

    Tighten:  Tighten the eared clamp to 136 N.m (100 lb ft).

  8. Check the gap dimension, continue tightening until the gap dimension is reached.
    9. Fig 5: View Of Inner Race & Cage
    GM214947Courtesy of GENERAL MOTORS CORP.
  9. Put a light coat of grease from the service kit on the ball grooves of the inner race and the outer race.
  10. Hold the inner race 90 degrees to centerline of cage with the lands of the inner race (1) aligned with the windows of the cage (2) and insert the inner race into the cage.
    11. Fig 6: View Of Outer Race, Inner Race, Cage Window & CV Joint Cage
    GM214946Courtesy of GENERAL MOTORS CORP.
  11. Hold the cage and the inner race 90 degrees to centerline of the outer race (1) and align the cage windows (3) with the lands of the outer race.
    IMPORTANT: Be sure that the retaining ring side of the inner race faces the halfshaft bar.
  12. Place the cage and the inner race into the outer race.
  13. Insert the first chrome ball then tilt the cage in the opposite direction to insert the opposing ball.
  14. Repeat this process until all 6 balls are in place.
  15. Place approximately half the grease from the service kit inside the outboard seal and pack the CV joint with the remaining grease.
    16. Fig 7: Pushing CV Joint Onto Halfshaft Bar
    GM238932Courtesy of GENERAL MOTORS CORP.
  16. Push the CV joint (2) onto the halfshaft bar (1) until the retaining ring is seated in the groove on the halfshaft bar.
    Fig 8: View Of Boot And Large Seal Retaining Clamp
    GM221903Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The outboard seal (1) must not be dimpled, stretched or out of shape in any way. If the outboard seal (1) is not shaped correctly, equalize the pressure in the outboard seal (1) and shape the seal properly by hand.
  17. Slide large diameter of the outboard seal (1) with the large seal retaining clamp (2) in place over the outside of the CV joint outer race (3) and locate the seal lip in the groove on the CV joint outer race.
    Fig 9: View Of Outboard Seal, Large Seal Retaining Clamp & CV Joint Outer Race
    GM245263Courtesy of GENERAL MOTORS CORP.
  18. Crimp the seal retaining clamp (1) using J 35910  .

    Tighten:  Crimp the clamp (1) to 174 N.m (130 lb ft).

  19. Check the gap dimension on the clamp ear. Continue tightening until the gap dimension is reached. Dimension a= 1.9 mm (5/64 in).
