Seat Belt Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

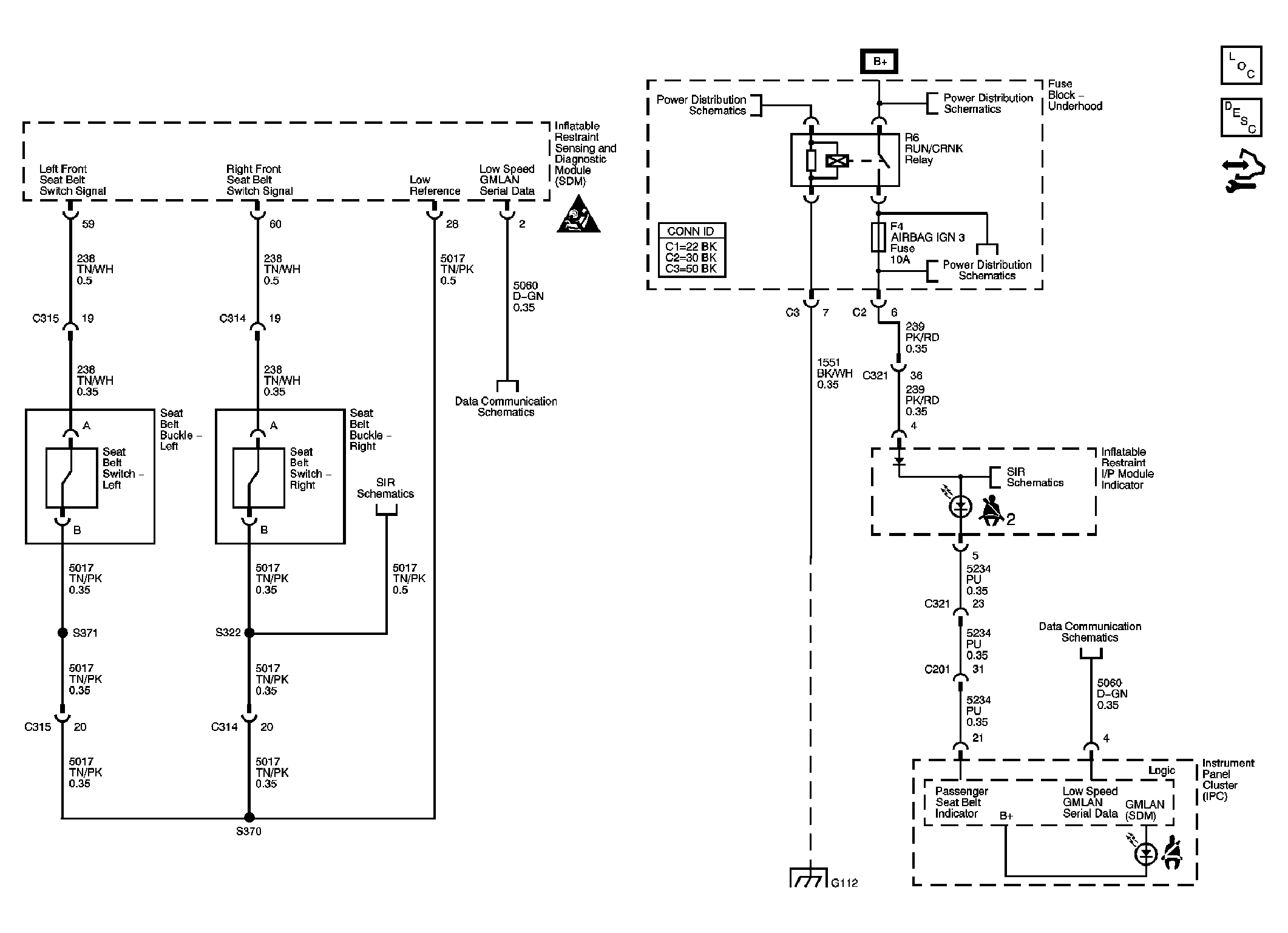

Fig 1: Seat Belt Schematics
GM1758893Courtesy of GENERAL MOTORS CORP.
