Seat Belt Replacement - Center Front

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

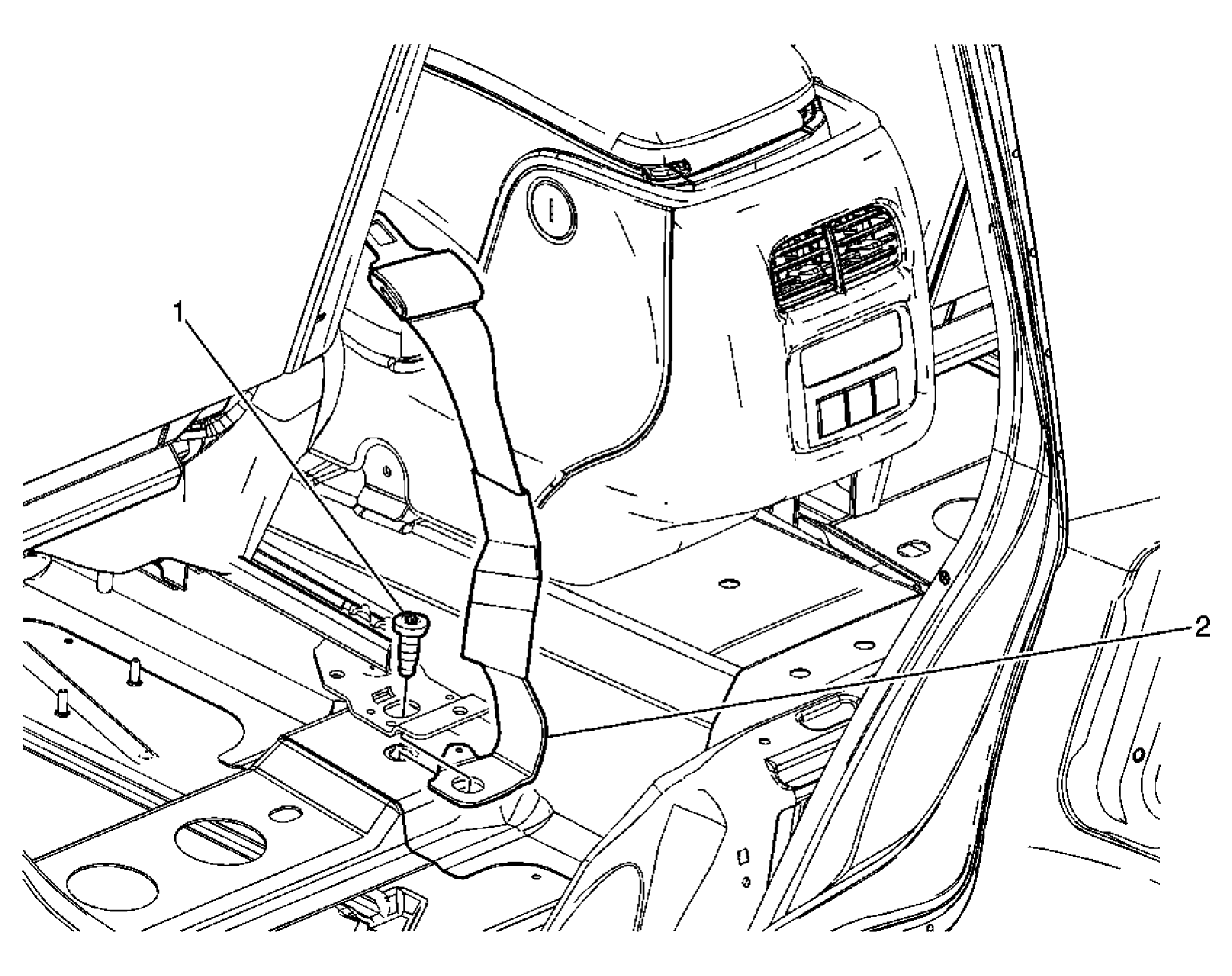

Fig 1: Removing/Installing Seat Belt - Center Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Left Seat Bolt Tip: Slide the passenger seat to the full forward position and adjust the seat back to the full forward position to allow access. Tighten: 45 N.m (33 lb ft)
2	Center Front Seat Belt
