Seat Belt Buckle and Latch Replacement - Rear

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

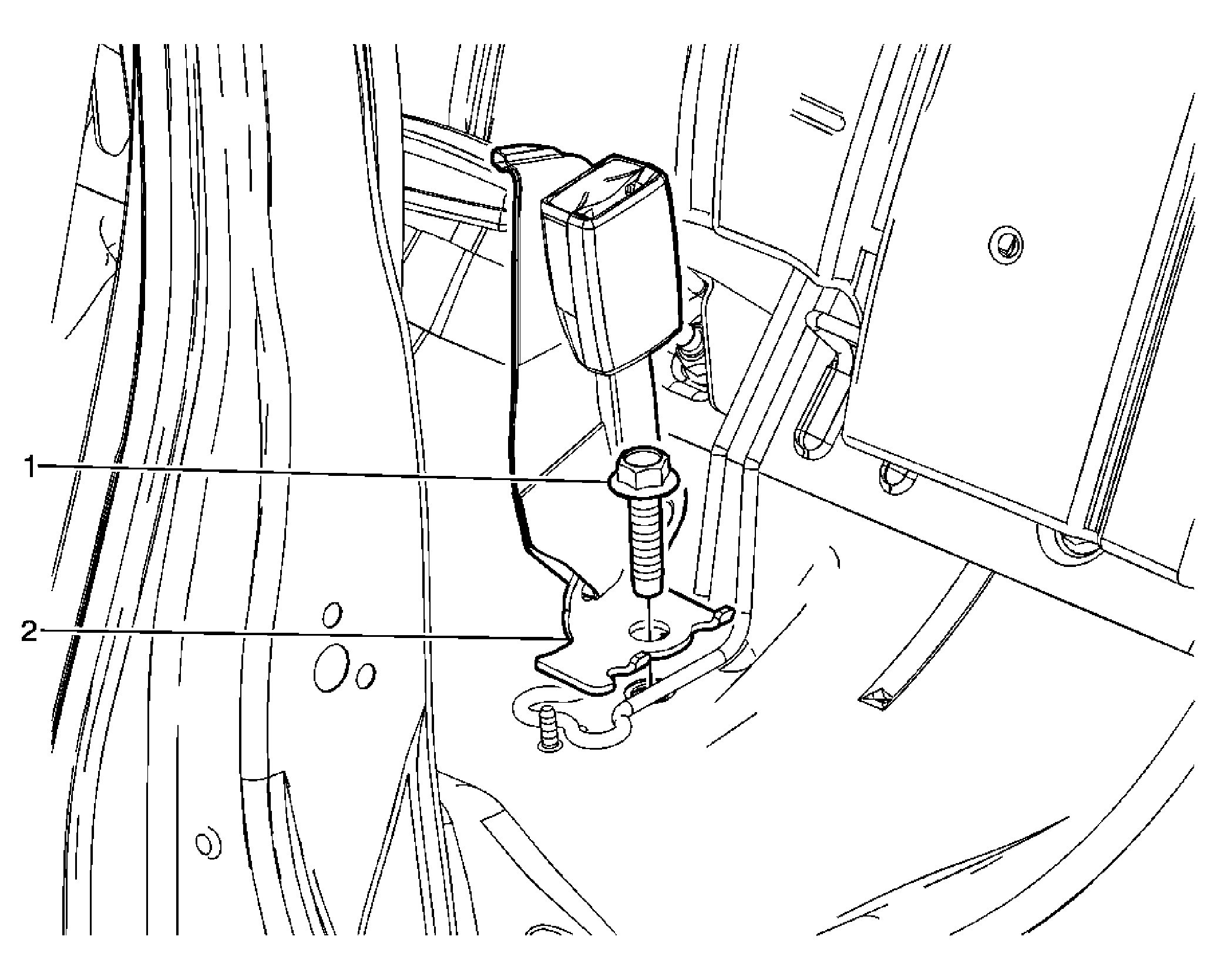

Fig 1: Removing/Installing Seat Belt Buckle & Latch - Rear
GM1588971Courtesy of GENERAL MOTORS CORP.
Seat Belt Buckle and Latch Replacement - Rear

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1 Seat Belt Buckle and Latch Bolt

Tighten:  30 N.m (22 lb ft)
2 Seat Belt Buckle and Latch Assembly
