Child Restraint Tether Anchor Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

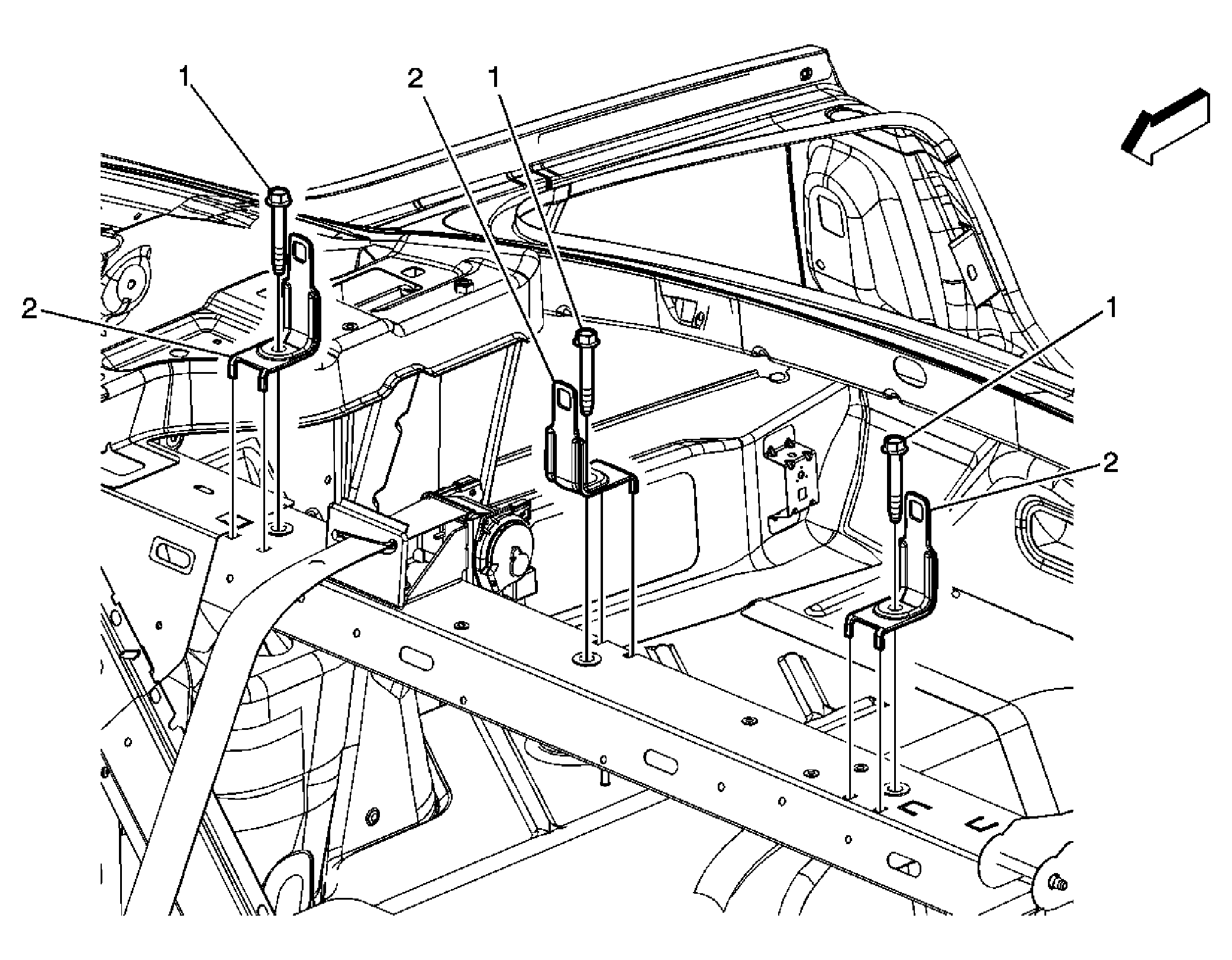

Fig 1: Child Restraint Tether Anchor Replacement
GM1588695Courtesy of GENERAL MOTORS CORP.
Child Restraint Tether Anchor Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
1 Child Restraint Tether Anchor Bolt

Tighten:  30 N.m (22 lb ft)
2 Child Restraint Tether Anchor
