Seat Belt Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

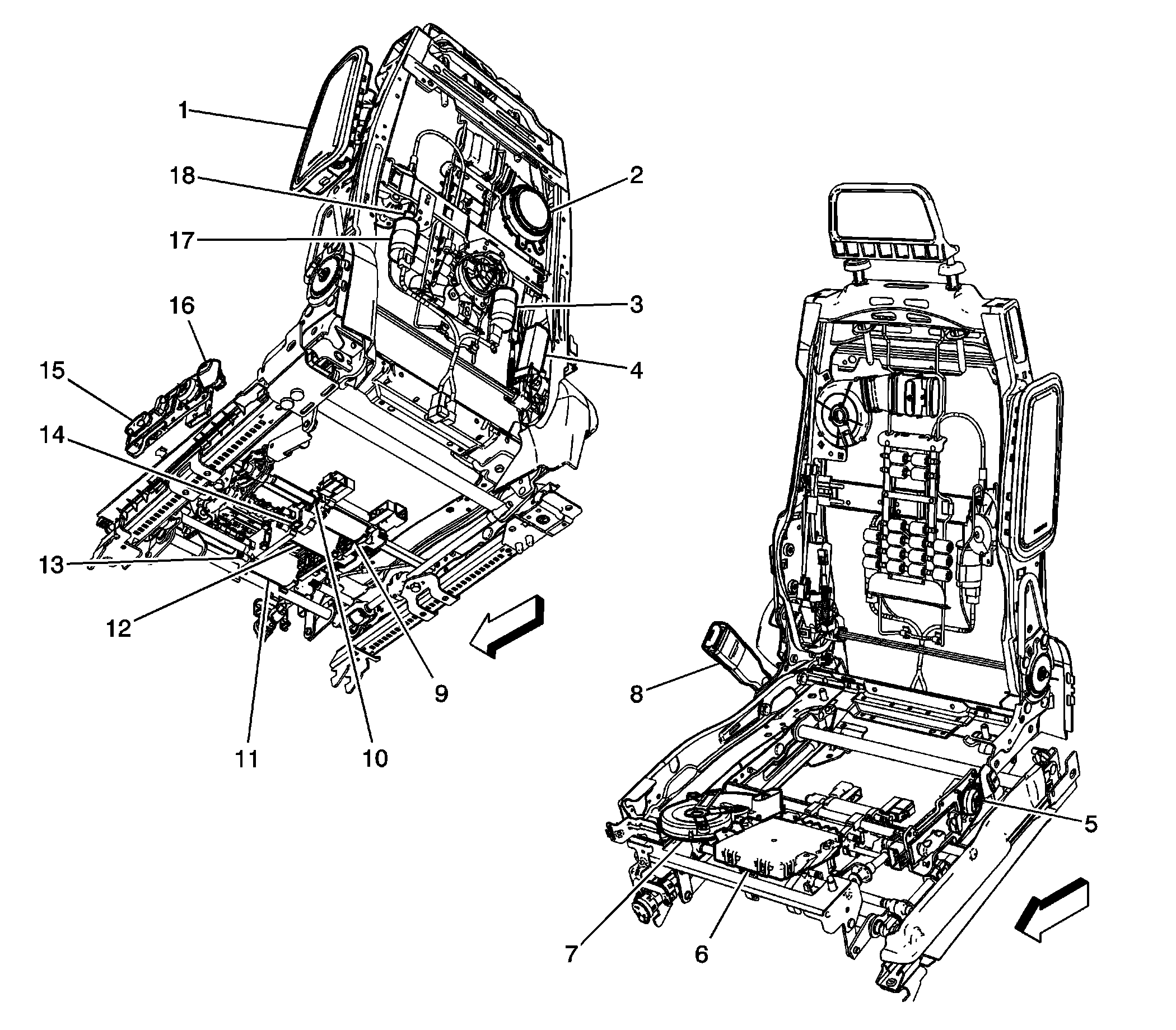

Fig 1: Driver Seat Area Components (Body Harness)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Seat Back Ventilation Heat and Cool Module - Driver (KB6)
3	Seat Lumbar Motor - Driver (AL2)
4	Seat Recline Motor - Driver (AG1/A45)
5	Seat Lumbar Switch - Driver (AL2/A45)
6	Memory Seat Module (MSM) (A45/AM3/KB6)
7	Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)
8	Seat Belt Switch - Left
9	Seat Rear Vertical Motor - Driver
10	Seat Rear Vertical Position Sensor - Driver (A45)
11	Seat Horizontal Motor - Driver
12	Seat Adjuster Motor Assembly - Driver (AG1/A45)
13	Seat Horizontal Position Sensor - Driver (A45)
14	Seat Front Vertical Position Sensor - Driver (A45)
15	Seat Adjuster Switch - Driver (AG1/A45)
16	Seat Lumbar Massage Switch - Driver (AM3)
17	Seat Lumbar Massage Motor - Driver (AM3)
18	Seat Recline Position Sensor - Driver (A45)

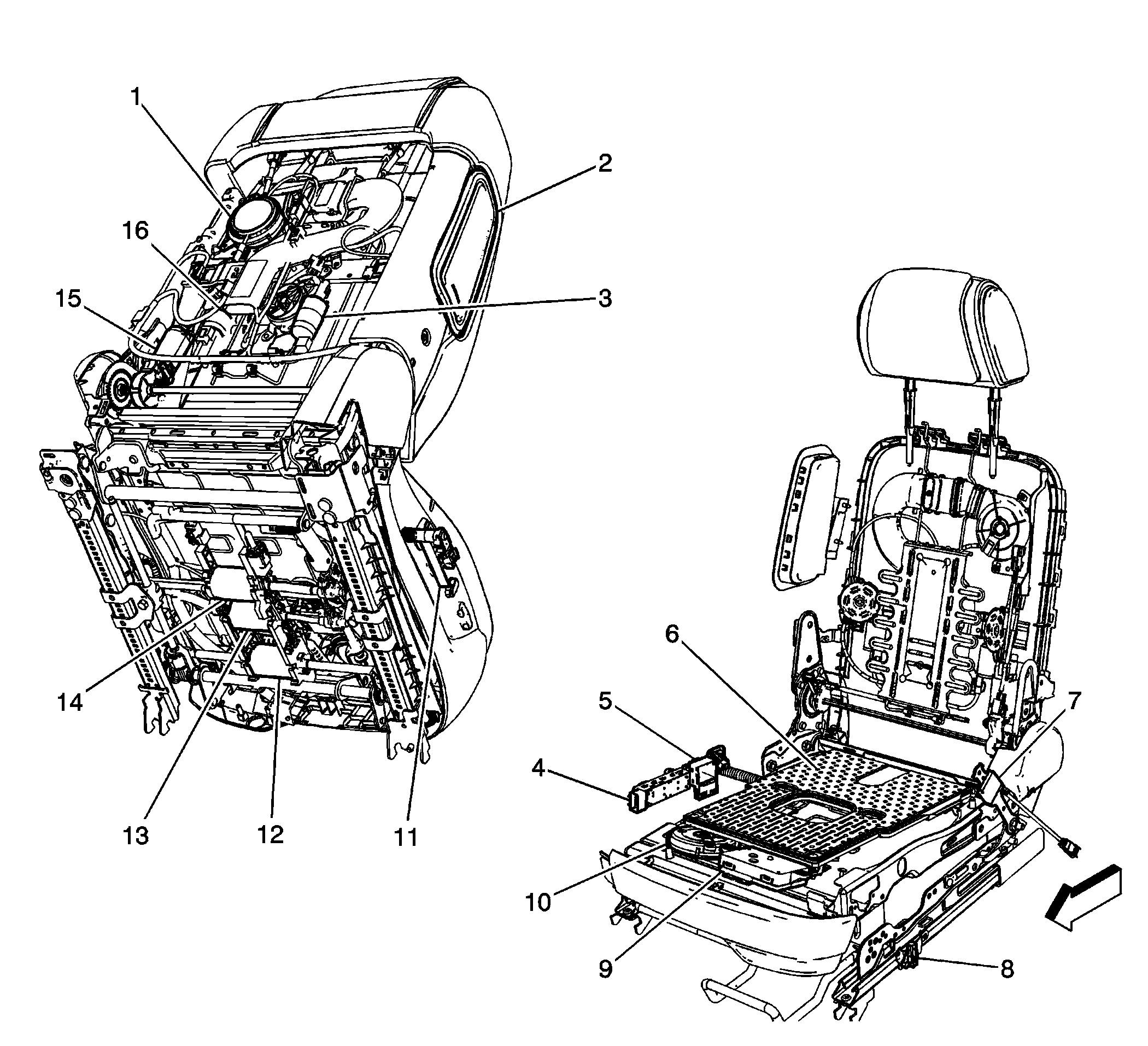

Fig 2: Passenger - RR Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Ventillation Heat and Cool Module - Passenger (KB6)
2	Inflatable Restraint Side Impact Module - Right
3	Seat Lumbar Motor - Front Passenger (AL2)
4	Seat Adjuster Switch - Passenger (AG2)
5	Seat Lumbar Massage Switch - Front Passenger (AM3)
6	Inflatable Restraint Passenger Presence System (PPS) Sensor
7	Seat Belt Switch - Right
8	Inflatable Restraint Seat Position Sensor (SPS) - Right
9	Climate Control Seat Module - Front (KB6)
10	Seat Cushion Ventillation Heat and Cool Module - Front Passenger (KB6)
11	Inflatable Restraint Passenger Presence System (PPS) Sensor Connector
12	Seat Horizontal Motor - Passenger
13	Seat Front Vertical Motor - Passenger
14	Seat Rear Vertical Motor - Passenger
15	Seat Recline Motor - Front Passenger (AG2)
16	Seat Lumbar Massage Motor - Front Passenger
