Engine Component Description: Notes
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

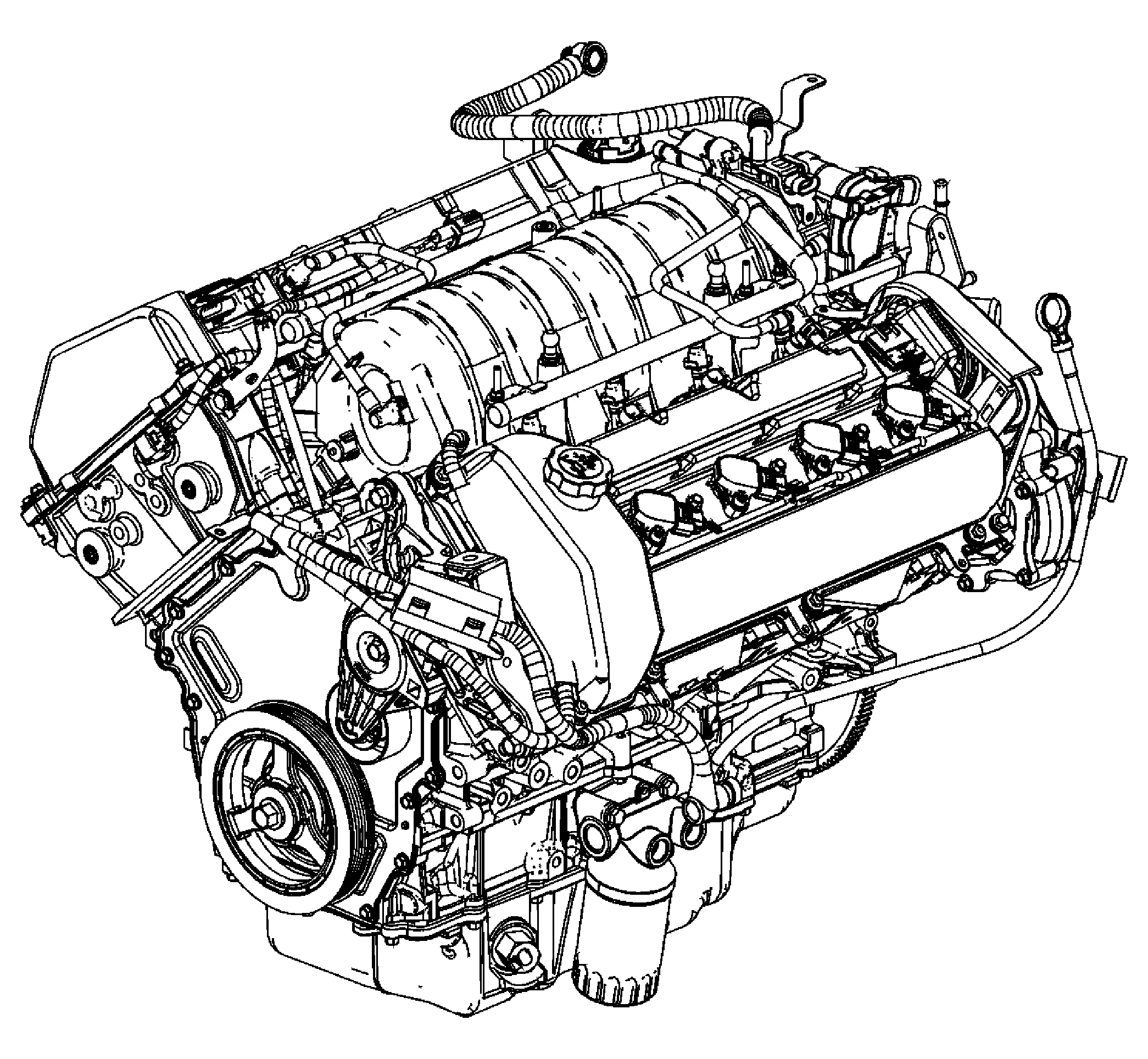

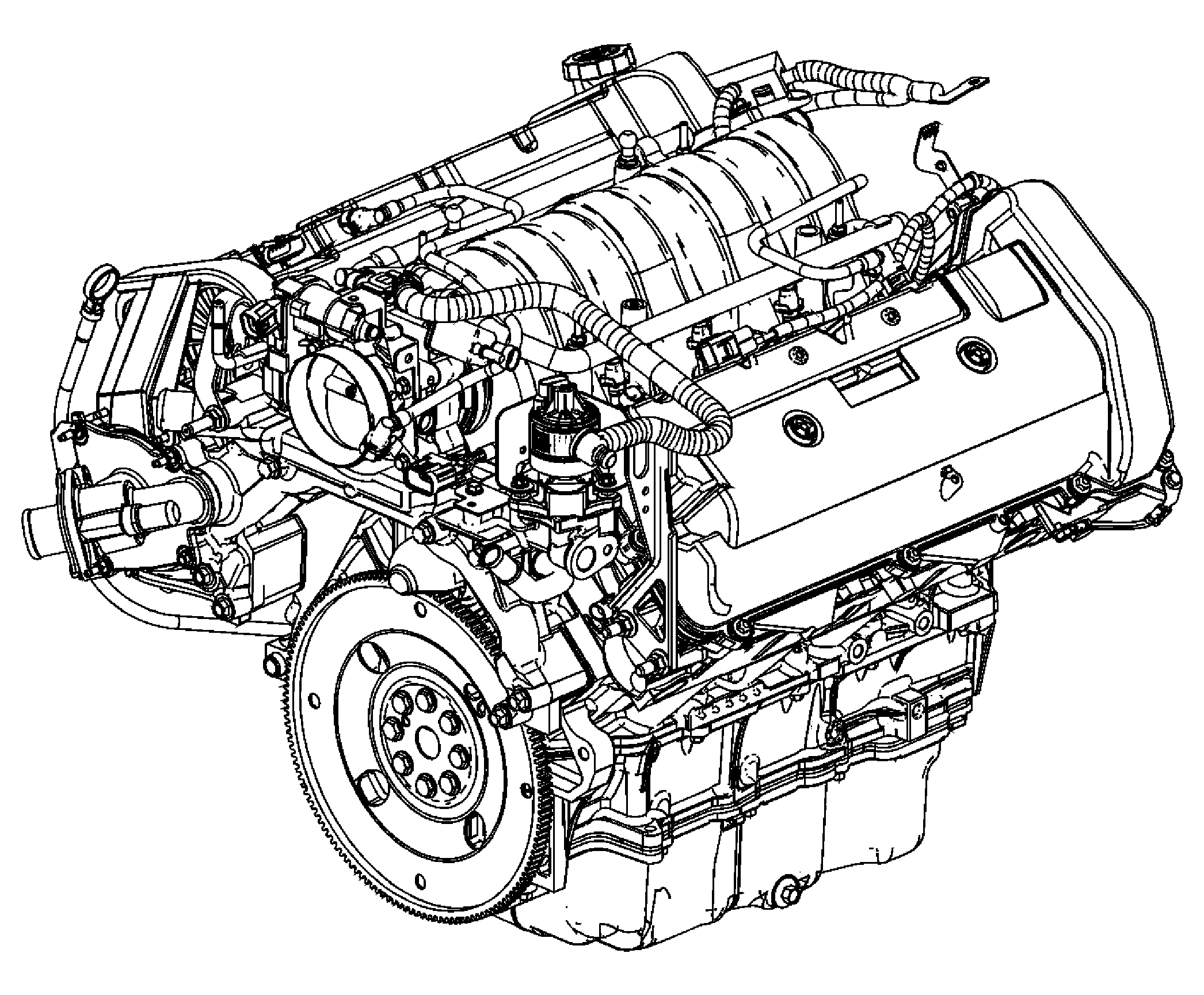

The Northstar V8 VIN Code 9 or Y is a 4.6L (279 cu in) engine incorporating 2 intake and 2 exhaust valves per cylinder with individual cylinder head mounted camshafts for intake and exhaust functions (DOHC). The cylinder bore diameter is 93 mm (3.43 in) and the piston stroke is 84 mm (3.31 in). The cylinders are arranged in 2 banks of 4 with a 90 degrees included angle. The left (front) bank of cylinders are number 2-4-6-8 and the right (rear) bank cylinders are 1-3-5-7. Engine firing order is 1-2-7-3-4-5-6-8.
