Engine Verification

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

The engine verification label is placed in two locations on the right side of the engine.

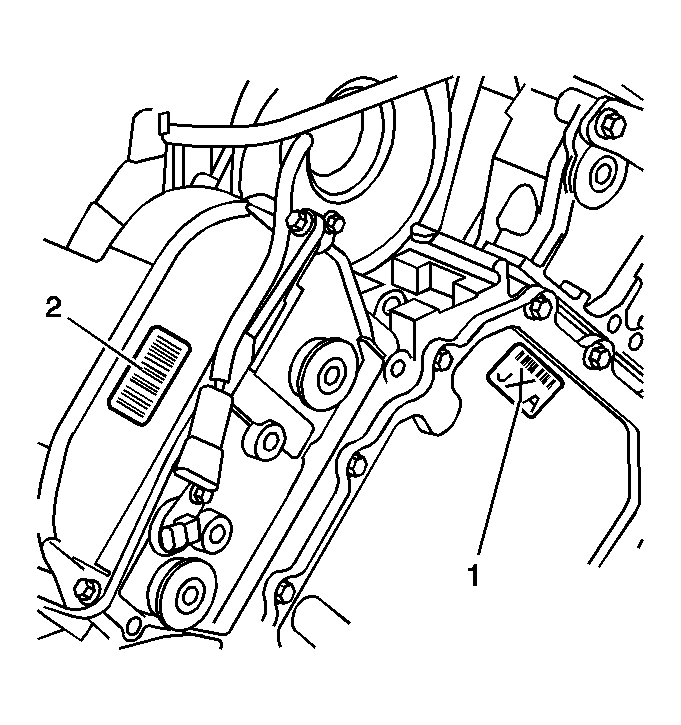

Fig 1: Identifying Engine Verification Label & Traceability Label
GM522573Courtesy of GENERAL MOTORS CORP.

The engine front cover has an engine verification label (1) and the front of the right camshaft cover has a traceability label (2).

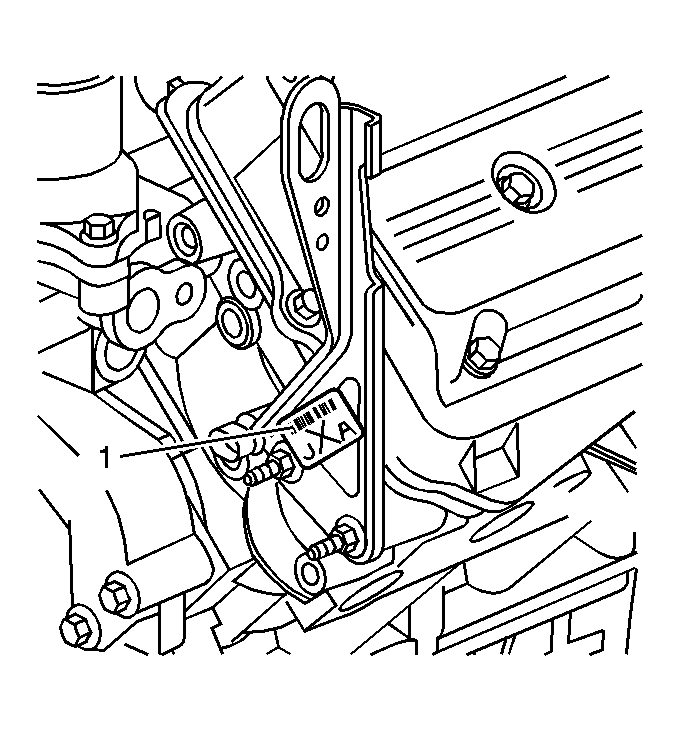

Fig 2: View of Engine Verification Label
GM522577Courtesy of GENERAL MOTORS CORP.

The rear of the right camshaft cover has an engine verification label (1).
